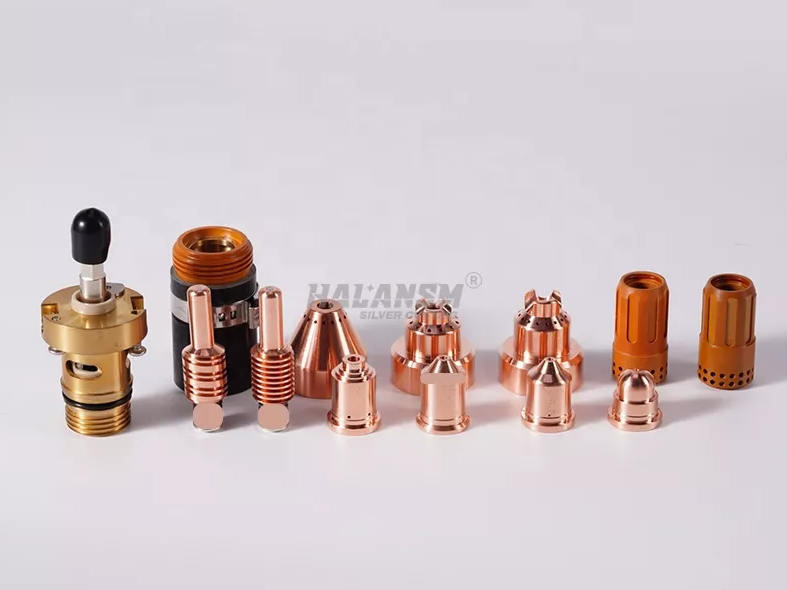

The Powermax65/85/105 Consumables Series: One Torch Platform, Four Amperage Classes

The HALANSM® Powermax65/85/105 Consumables Series​ is a complete family of plasma arc-constriction components engineered for Hypertherm's Duramax handheld and machine torches across the Powermax65 (65A), Powermax85 (85A), and Powermax105 (105A) power supplies . All three systems share the identical Duramax torch platform​ — meaning the torch body, threaded interface, O-ring placement, and gas path geometry are common . What changes across the amperage range is the nozzle bore diameter​ and, at 105A specifically, the swirl ring​ (220994 replaces 220857) and the shield​ (220992 hand / 220993 mechanized replace 220818 / 220817) .

The core physical principle remains constant: the swirl ring imparts a precise vortex to the compressed air, the electrode's hafnium emitter provides the arc attachment point, the nozzle constricts the arc into a laminar core, and the shield directs the flow while protecting the torch body. The variable components — nozzle bore diameter, shield geometry, and swirl ring gas metering — are tuned per amperage class.

Critical platform note: The Duramax torch on Powermax65/85/105 is an air-cooled torch​ . Unlike the water-cooled MAXPRO200 extreme bevel system, there is no "longer water tube" requirement. Additionally, Hypertherm now offers a cartridge adapter (428951)​ that upgrades Duramax torches to the single-piece SmartSYNC cartridge platform (428925–428939) . However, this article addresses the multi-piece consumable series​ that remains in active service worldwide on millions of Duramax torches.

Why Does Hafnium Emitter Physics Govern The 45–105A Range?

To understand why the 220842 electrode serves the entire 45–105A range (and 220994 swirl ring takes over at 105A), we must examine the arc attachment mechanism.

Hafnium Work Function And Arc Root Attachment

The 220842 electrode features a hafnium insert embedded in a copper-chromium-zirconium (CuCrZr) holder. Hafnium has a low work function (~3.5 eV) and an exceptionally high melting point (2,233°C / 4,051°F) — properties that make it the ideal arc root attachment point . When the pilot arc initiates, the hafnium emits electrons via thermionic emission, establishing a stable, low-resistance path for the main arc. The 220842's hafnium cavity geometry is dimensioned so that at any current between 45A and 105A, the arc root remains pinned to the center of the hafnium button. This is why a single electrode part number serves the entire 45–105A range — the hafnium emitter's job does not change with current; only the volume of ionized gas around it scales with amperage, which is managed by the nozzle .

CopperPlus Alternative (220777)

Hypertherm also offers the 220777 "CopperPlus" electrode for the Duramax platform, which Hypertherm explicitly recommends: "For improved consumable life try the CopperPlus electrode" . CopperPlus is a copper-zirconium alloy that provides longer service life compared to standard copper electrodes, particularly when cutting metal 12mm (1/2") and under . The 220777 is dimensionally and electrically identical to the 220842 — it is a direct replacement that extends electrode life . HALANSM® manufactures both 220842 and 220777 equivalents to OEM specification.

Swirl Ring Vortex And Arc Centering

For 45–85A operation, the 220857 swirl ring​ sits immediately upstream of the nozzle. For 105A operation, the 220994 swirl ring​ takes over — its gas metering orifices are calibrated for the higher volumetric flow required at 105A . The internal vanes of both swirl rings impart a helical rotation to the incoming compressed air, creating a cyclonic vortex . This vortex serves two physical functions:

1. Centripetal arc pinning​ — The rotating gas column generates a radial pressure gradient that forces the plasma arc to remain coaxial with the torch body, preventing the arc root from wandering off the hafnium emitter

2. Laminar core establishment​ — The vortex organizes the gas flow into a coherent annular pattern, leaving a low-turbulence central core through which the arc column passes

At 105A, the electromagnetic forces trying to destabilize the arc are at their maximum for this system class. The 220994's vortex must counteract these forces continuously. Any disruption to the swirl ring's gas injection orifices — caused by spatter, debris, or dimensional variance in aftermarket copies — breaks the vortex symmetry, allowing the arc to "wobble" and strike the nozzle wall, initiating double arcing.

Nozzle Bore Constriction And Laminar Core Formation

The nozzle (220941 at 45A, 220819 at 65A, 220816 at 85A, 220990 at 105A) provides the final geometrical constraint on the plasma arc. Its converging-diverging bore profile:

• Accelerates​ the swirl-organized gas to supersonic velocity at the orifice exit

• Mechanically pins​ the arc column to a precise diameter at the exit plane

• Establishes a laminar flow core​ — a low-turbulence central gas column that thermally insulates the arc from the nozzle wall

The bore diameter is amperage-specific: 45A requires the narrowest orifice; 105A requires the widest. This is why 45A uses 220941, 65A uses 220819, 85A uses 220816, and 105A uses 220990 . Installing a 45A nozzle (220941) at 105A would cause immediate double arcing as the enlarged 105A arc column strikes the narrow bore wall. Installing a 105A nozzle (220990) at 45A would create an overly wide arc with poor energy density, resulting in excessive dross and wide kerf.

Double Arcing Mechanics In The Powermax65/85/105 Series

Double arcing occurs when the plasma arc — instead of passing cleanly through the nozzle orifice — attaches simultaneously to the nozzle tip and an intermediate surface (shield or retaining cap). In the Duramax's air-cooled architecture, double arcing is particularly destructive because there is no water cooling to absorb the thermal spike. The failure sequence is:

1. Nozzle bore wear or swirl ring clogging disrupts the laminar core

2. Arc root wanders off the hafnium center

3. Arc strikes the nozzle bore wall → localized copper vaporization

4. Molten copper bridges the gap to the shield → full double arc

5. Torch body damage within seconds

The Complete Consumable Cross-Reference Matrix: Handheld Stacks

Per Hypertherm's official Powermax85 and Powermax105 specification , here is the authoritative handheld cross-reference:

The Complete Consumable Cross-Reference Matrix: Mechanized Stacks

Per Hypertherm's Powermax65/85 Service Manual and Powermax105 specification :

⚠️ Universal constraints across the Powermax65/85/105 series:

• Swirl ring divergence at 105A​ — 45–85A use 220857; 105A uses 220994. These are NOT interchangeable. The 220994's gas metering orifices are calibrated for 105A flow volumes

• Shield divergence at 105A​ — 45–85A use 220818​ (hand) / 220817​ (mech); 105A uses 220992​ (hand) / 220993​ (mech)

• Nozzle bore is amperage-specific​ — 220941 (45A), 220819 (65A), 220816 (85A), 220990 (105A) are NOT cross-compatible

• Powermax65/85/105 Duramax torch is air-cooled​ — there is no water tube requirement (unlike MAXPRO200 water-cooled systems)

• Ohmic retaining cap​ — 220953 substitutes for 220854 when a torch height controller with ohmic sensing is installed

• Unshielded cutting​ — Substitute deflector 220955​ for shield 220817​ (mech) or 220818​ (hand) when operating in unshielded mode

Sister-Part Divergence: Why Nozzle Bore Diameter Dictates Amperage Rating

Source: Hypertherm Powermax85 , Powermax105 , and Duramax retrofit specification

The critical engineering insight: Because the swirl ring changes at 105A (from 220857 to 220994), the shield also changes (from 220818/220817 to 220992/220993). This means upgrading from an 85A process to 105A is not a nozzle-only swap​ — it requires replacing the swirl ring and shield components as well . The only constant across the 45–105A range is the retaining cap (220854 for standard; 220953 for ohmic sensing) and the electrode (220842, with 220777 CopperPlus as direct alternative).

This modular architecture is why:

• ✅ You can​ switch between 45A, 65A, and 85A drag-cutting by changing only the nozzle — the electrode (220842), swirl ring (220857), and shield (220818/220817) remain constant

• ❌ You cannot​ use an 85A nozzle (220816) at 45A — the oversized bore creates an under-constricted arc with poor energy density

• ❌ You cannot​ use a 45A nozzle (220941) at 85A or 105A — the undersized bore causes immediate double arcing

• ❌ You cannot​ use 45–85A components (220857/220818/220817) at 105A — the swirl ring and shield geometries are fundamentally divergent

Application Scenarios: Matching Stack To Fabrication Demand

Source: Hypertherm Powermax85 and Powermax105 cut charts and consumables specification

HALANSM® Powermax65/85/105 Series: Verifiable Engineering Advantages

HALANSM® manufactures every component in the Powermax65/85/105 consumables series to Hypertherm's published specifications. The engineering facts:

1. Bore Geometry Replication To Micron Tolerance

Each nozzle (220941, 220819, 220816, 220990, 220930, 420480, 220991) is machined to Hypertherm's converging-diverging bore specification to within micron tolerance. At 105A — the Powermax105's native maximum — any bore variance of 0.01–0.03mm disrupts the laminar gas core and triggers double arcing. HALANSM®'s CNC machining process holds the orifice profile, exit angle, and swirl ring mating interface to OEM dimensions, ensuring the plasma arc exits with identical velocity, focus, and trajectory as genuine Hypertherm parts. This is especially critical for the 220990 105A nozzle, where the transition from 220857 to 220994 swirl ring must be seamless.

2. Silver Cutting™ Mirror-Finish Internal Bore

The internal bore of every HALANSM® nozzle receives the proprietary Silver Cutting™​ mirror polish. This eliminates micro-scratches and tooling marks that would otherwise create arc attachment sites on the bore wall — the root cause of double arcing. The mirror finish reduces micro-turbulence in the gas flow, maintaining laminar core stability even at 105A where arc forces are at their maximum.

3. Hafnium Emitter Seat Precision (220842 & 220777 Electrodes)

The 220842 (standard) and 220777 (CopperPlus) electrodes' hafnium inserts are pressed into the CuCrZr holder using a controlled-force process that ensures concentricity within 5 microns. This concentricity is critical: any offset of the hafnium button from the bore axis causes the arc root to attach asymmetrically, leading to uneven nozzle wear. HALANSM® validates every electrode against a go/no-go gauge that verifies hafnium centeredness before shipment. For the CopperPlus variant (220777), HALANSM® replicates the copper-zirconium alloy microstructure to extend service life on cuts of 12mm and under .

4. Swirl Ring Vane Geometry Verification (220857 & 220994)

The 220857 (45–85A) and 220994 (105A) swirl rings' internal vanes are the most geometrically sensitive components in the stack — they determine the vortex characteristics that center the arc. The 220994's gas metering orifices are specifically calibrated for 105A volumetric flow . HALANSM® machines each swirl ring's vanes to OEM vane angle and depth specifications, then flow-tests every unit with compressed air to verify the vortex pattern matches Hypertherm's reference. This verification eliminates arc attachment drift caused by swirl/vane mismatch — the #1 cause of premature nozzle failure in the series.

5. CuCrZr Microstructure Control

All shields (220818, 220992, 220817, 220993, 220931, 220948, 220797, 220798) and nozzles are manufactured from high-purity copper-chromium-zirconium (CuCrZr) alloy. HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability under the thermal gradient of 105A cutting. This microstructural discipline prevents the "bell-mouthing" deformation that plagues inferior nozzles and extends shield service life.

6. Thread And O-Ring Groove Integrity

The retaining caps (220854, 220953) and shield threaded interfaces are high-stress zones. HALANSM® rolls threads post-machining to ensure maximum strength and prevents seizure during high-heat cycling. O-ring grooves are machined to exact tolerances to guarantee leak-proof seals — a gas leak at the swirl ring interface causes arc instability and rapid consumable failure. Critically, HALANSM® validates the thread pitch and O-ring placement against the exact amperage class​ — 220857-class parts (45–85A) use one O-ring arrangement; 220994-class parts (105A) use a divergent arrangement — to guarantee finger-tight seating without galling.

Wear Diagnostics Across The Powermax65/85/105 Series

The HALANSM® advantage: By holding bore geometry and Silver Cutting™ finish to OEM specification, operators maximize consumable service life and minimize cost-per-cut across the entire 45–105A range.

Mandatory Installation Protocol For All Stacks

Per Hypertherm's service manuals , the non-negotiable sequence:

1. Power OFF​ — Ensure the power supply is completely de-energized before changing consumables

2. Remove the retaining cap​ (220854 standard; 220953 ohmic) — unscrew by hand only

3. Remove the shield/nozzle​ — separate the shield (220818/220992 hand or 220817/220993 mech) from the nozzle (220941/220819/220816/220990 per amperage)

4. Remove the electrode​ (220842 standard or 220777 CopperPlus)

5. Remove the swirl ring​ (220857 for 45–85A; 220994 for 105A) — handle with care; clean O-ring grooves

6. Inspect and clean​ — verify swirl ring metering holes are clear, O-rings are intact, electrode hafnium pit depth is within limits (<1.0mm)

7. Install the swirl ring​ (220857 or 220994) — add a tiny amount of O-ring lubricant to the outside O-rings

8. Install the electrode​ (220842 or 220777) — seat fully into the torch body

9. Install the nozzle​ (220941/220819/220816/220990 per amperage)

10. Install the shield​ (220818/220992 hand or 220817/220993 mech; 220955 deflector for unshielded)

11. Thread on the retaining cap​ (220854 standard; 220953 ohmic) — finger-tight ONLY

12. For ohmic height sensing​ — substitute retaining cap 220953 for 220854 when a compatible torch height controller is installed

⚠️ Six critical incompatibilities to never violate:

• ❌ Swirl ring substitution​ — 220857 (45–85A) and 220994 (105A) are NOT interchangeable. Using 220857 in a 105A stack disrupts vortex symmetry; using 220994 in a 45–85A stack over-metered gas volume, causing arc instability.

• ❌ Shield substitution​ — 220818/220817 (45–85A) and 220992/220993 (105A) are NOT interchangeable. The 105A shield's gas plenum geometry is dimensioned for the higher flow rate.

• ❌ Over-amperage nozzle​ — Never install a 45A nozzle (220941) when cutting at 85A or 105A. The arc will double-arc within seconds.

• ❌ Under-amperage nozzle​ — Never install a 105A nozzle (220990) when cutting at 45A. The oversized bore creates an under-constricted arc with poor energy density, resulting in excessive dross.

• ❌ Process mismatch​ — Never use a drag-cutting nozzle (220941/220819/220816/220990) for gouging. Gouging requires the straight-bore nozzles (420480 for Max Control; 220991 for Max Removal).

• ❌ Over-tightening​ — Finger-tight is the maximum allowable torque. Over-tightening can cause the torch to misfire and crack precision components.

Frequently Asked Questions (FAQ)

Q: Can I use my Powermax85 with 105A consumables to get more cutting power?

A:​ No. The Powermax85 power supply is electronically limited to 85A maximum output . While the 105A consumables (220992 shield, 220994 swirl ring, 220990 nozzle) will physically fit in a Duramax torch, the power supply cannot deliver the 105A current. You must use the correct 85A stack: 220818 shield · 220854 cap · 220816 nozzle · 220842 electrode · 220857 swirl ring . For true 105A operation, you need a Powermax105 power supply. The Duramax torch platform is indeed shared across all three systems , but the power supply determines the actual amperage ceiling.

Q: My Powermax105 cuts at 105A, but the cut quality is poor. Could the consumables be mismatched?

A:​ Most likely. Common mistakes include: (1) Using a 220857 swirl ring instead of the required 220994 — the 105A arc will be under-vortexed, causing arc wobble; (2) Using a 220818/220817 shield instead of the required 220992/220993 — the gas plenum geometry is mismatched; (3) Using a 45A or 85A nozzle (220941 or 220816) at 105A — causes immediate double arcing; (4) Damaged or clogged 220994 swirl ring — disrupts vortex symmetry; (5) Hafnium pit depth exceeding 1.0mm — replace the 220842 electrode immediately. Always verify you are using the exact 105A stack: 220992·220854·220990·220842·220994 (hand) or 220993·220854/220953·220990·220842·220994 (mech) .

Q: Should I use the 220777 CopperPlus electrode instead of 220842?

A:​ The 220777 CopperPlus electrode is a direct replacement for the 220842 across all amperage classes (45–105A) . Hypertherm explicitly recommends: "For improved consumable life try the CopperPlus electrode" . CopperPlus is a copper-zirconium alloy that provides longer service life, particularly when cutting metal 12mm (1/2") and under . For thicker material at 85A or 105A, the standard 220842 may perform comparably. HALANSM® manufactures both 220842 and 220777 to OEM specification, giving you the choice based on your typical cutting thickness.

Q: How long should a set of consumables last at 85A on a Powermax85?

A:​ Consumable life depends on numerous factors: gas quality (clean, dry, oil-free air), piercing frequency, material thickness, and duty cycle. Under normal drag-cutting conditions on mild steel 12–20mm, a well-maintained set of consumables (220842 electrode, 220857 swirl ring, 220854 cap, 220818 shield, 220816 nozzle) should deliver hundreds of arc starts. The swirl ring itself can last through many electrode/nozzle change-outs with careful handling. The electrode is typically the first to wear — replace when the hafnium pit exceeds 1.0mm. Switching to the 220777 CopperPlus electrode can extend service intervals, especially for cutting 12mm and under .

Q: Can I convert my Powermax65/85/105 Duramax torch to the cartridge system?

A:​ Yes. Hypertherm offers the cartridge adapter (428951)​ that converts Duramax torches to the single-piece SmartSYNC cartridge platform . Once converted, you would use:

• Drag cartridges: 428927 (45A), 428931 (65A), 428935 (85A), 428937 (105A)

• FineCut hand: 428928

• FineCut mechanized: 428926

• Max removal gouging: 428932 (45–85A), 428938 (105A)

• Max control gouging: 428933 (45–85A), 428939 (105A)

However, the adapter requires a separate purchase and converts the torch permanently. For existing Duramax torch owners who prefer the multi-piece consumable architecture, the traditional stack (which this article addresses) remains fully supported by Hypertherm with ongoing parts availability .

Q: What's the difference between Max Removal and Max Control gouging consumables?

A:​ Both are designed for metal removal but with different objectives :

• Max Removal Gouging​ (220798 shield · 220854 cap · 220991 nozzle · 220842 electrode · 220994 swirl ring): Designed for aggressive metal removal, deep gouge profiles, and extreme metal washing. At 105A, this is the only gouging option.

• Max Control Gouging​ (220797 shield · 220854 cap · 420480 nozzle · 220842 electrode · 220857 swirl ring): Designed for more precise metal removal, shallow gouge profiles, and light washing. Operates at 40–85A.

The key divergence is the nozzle: 220991 (Max Removal) has an extended straight bore for 105A; 420480 (Max Control) has a shorter straight bore for 40–85A. The swirl ring also differs — 220994 at 105A, 220857 at 40–85A.

The Bottom Line: Why The HALANSM® Powermax65/85/105 Series Is Engineered For The Physics

The Powermax65/85/105 consumables series represents a modular, air-cooled plasma cutting ecosystem spanning 45–105A across multiple processes — drag-cutting, FineCut, Max Removal gouging, and Max Control gouging. At the heart of this system are two critical transition points:

1. The 85A→105A transition​ — At 105A, the swirl ring changes from 220857 to 220994, and the shield changes from 220818/220817 to 220992/220993 . This is not a simple nozzle swap; it's a fundamental gas-path reconfiguration.

2. The 220842 electrode​ — Its hafnium emitter geometry remains constant across 45–105A, proving that arc attachment physics does not change with current; only the gas volume scales, which is managed by the nozzle and swirl ring .

At 105A — the Powermax105's native maximum — the margin for error in bore geometry, swirl ring vane angle, hafnium concentricity, and surface finish approaches zero. Generic consumables — with inconsistent orifice dimensions, unverified swirl vane geometry, or inadequate bore finishing — fail rapidly, triggering double arcing and torch damage.

HALANSM®'s engineering philosophy for the Powermax65/85/105 series is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometries to micron tolerance across all amperage classes (45A through 105A)

• Enhance​ internal bores with Silver Cutting™ mirror finishing to eliminate double-arc initiation sites

• Control​ CuCrZr microstructural integrity for thermal shock resistance at 105A

• Verify​ 220857/220994 swirl ring vane geometry with compressed-air flow testing against Hypertherm's reference vortex pattern

• Validate​ 220842/220777 hafnium emitter concentricity to within 5 microns

• Ensure​ thread integrity and O-ring groove precision to prevent gas path distortion and enable correct finger-tight seating

The result is a consumable series that delivers OEM-equivalent cut quality and service life, at a fraction of genuine Hypertherm cost — making HALANSM® the economically rational choice for fabricators operating Powermax65, Powermax85, or Powermax105 systems, whether in handheld drag-cutting, CNC mechanized production, gouging, or FineCut applications.

Forward compatibility note: For Powermax65/85/105 owners seeking to modernize, Hypertherm's sanctioned cartridge adapter (428951)​ transitions the Duramax torch to the single-piece SmartSYNC cartridge platform (428925–428939) . HALANSM® continues to manufacture the full multi-piece consumable series (220842, 220857/220994, 220941/220819/220816/220990, 220818/220992, 220854, and all sister parts) to the same engineering standard, providing sustained support for legacy systems worldwide.

In 45–105A plasma cutting, consumables aren't just wear items — they are the components that determine whether your cut is clean or scrapped.​ Choose HALANSM® Powermax65/85/105 Consumables Series: engineered for the physics, priced for the fabricator.
