The HALANSM 220777 is a premium Silver Core electrode featuring advanced CopperPlus technology. Designed as a direct replacement for Hypertherm Powermax systems, it delivers exceptional arc stability and extended service life across 45A to 105A applications. Its enhanced thermal management ensures superior cut quality and reduced downtime, making it the cost-effective choice for demanding metal fabrication tasks.
220777
HALANSM
HLN-220777

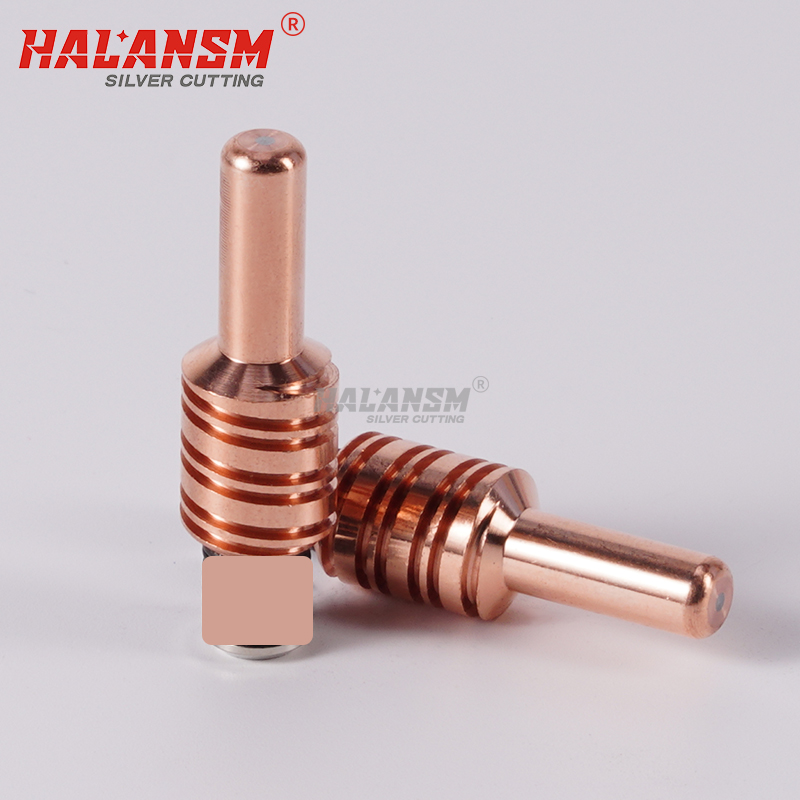

Electrode 220777 Silver Core Copperplus for Hypertherm Powermax 45A 65 85 105
The electrode is the critical heart of the plasma cutting torch, responsible for initiating and sustaining the plasma arc. The 220777 is a versatile, high-performance electrode designed for the Hypertherm Powermax family. It features a robust copper body enhanced with CopperPlus technology and a precisely centered Silver Core insert to significantly slow down wear and extend consumable life.
Key Advantages of HALANSM 220777:
Silver-Core Insert: The embedded silver tip drastically reduces electron migration and electrode erosion, allowing for more pierces and consistent cuts per tip compared to standard copper-only electrodes.
CopperPlus Durability: The heavy-duty copper body provides superior thermal mass and heat dissipation, preventing premature melting under the intense heat of the plasma arc.
Wide Compatibility: Specifically engineered as a direct drop-in replacement for Hypertherm Powermax 45A, 65, 85, and 105 systems (Powermax 45XP, 65, 85, 105). It seamlessly integrates with your existing torch without requiring any modifications.
Cost-Effective Performance: Delivers OEM-level arc stability and cut quality at a fraction of the cost of original factory parts, maximizing your return on investment and reducing operational expenses.

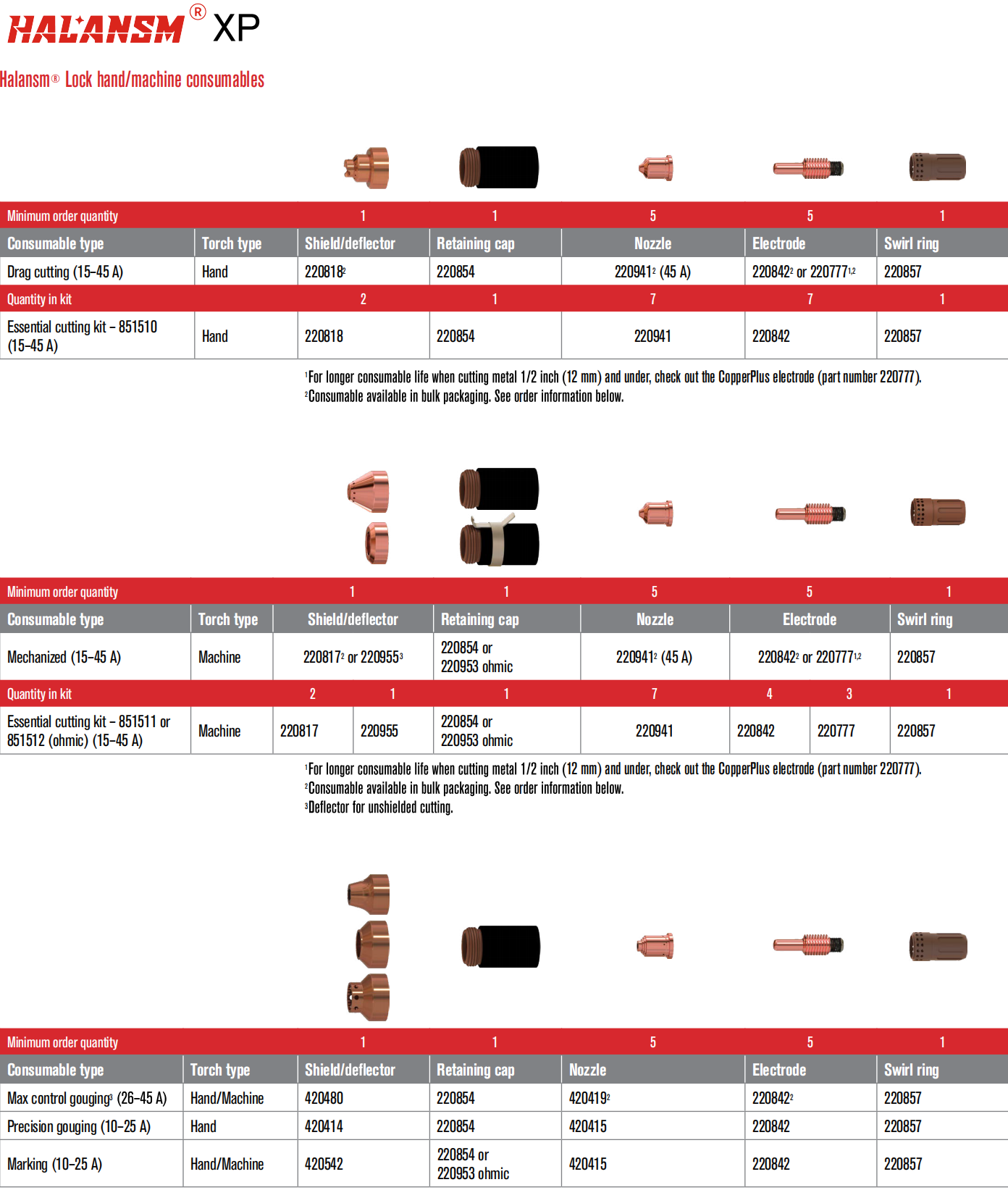

Compatible Powermax Consumable Stack:
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
Important Note: While this 220777 electrode is technically compatible with the Powermax 45A (45XP) system, the OEM part number for the standard electrode used in 45A is 220842. The 220777 is the standard electrode for 65A/85A/105A but can be used in 45A torches for extended life if desired. Please verify your specific torch requirements before purchasing to ensure optimal performance.
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |

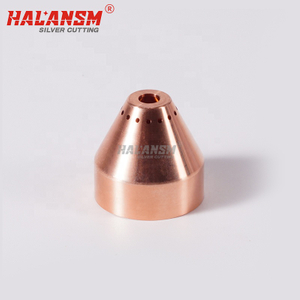

| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |

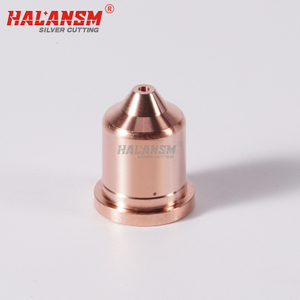

| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
