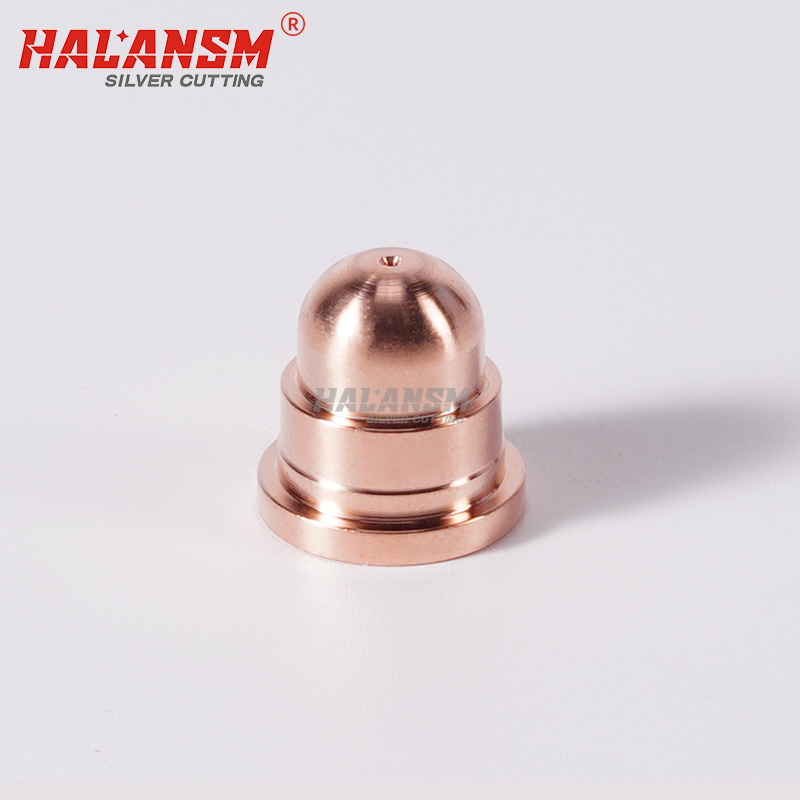

Unlock a new level of cutting precision with the HALANSM 220930 Finecut Nozzle. Specifically designed for intricate drag cutting applications, this nozzle delivers laser-like edge quality and superior cut resolution. Crafted from high-purity copper, it ensures maximum heat dissipation and a longer service life, making it the ideal upgrade for professionals demanding ultra-clean cuts on the Hypertherm Powermax platform.
220930
HALANSM
HLN-220930
HALANSM 220930 Nozzle – Laser-Like Precision for FineCut Applications
The plasma nozzle is the gateway to cut quality. For applications requiring intricate detail, drag cutting, or signage fabrication, the standard pierce nozzle simply won't suffice. The HALANSM 220930 Finecut Nozzle is engineered to focus the plasma arc into a finely controlled stream, allowing operators to "drag" the torch along a guide rail while maintaining a laser-like kerf width and exceptional edge squareness.
Key Advantages of HALANSM 220930:
Ultra-Fine Kerf Width: Produces a cut width of just 1.0 mm (0.040"), ideal for cutting detailed shapes, letters, and intricate patterns.
Optimized Flow Geometry: Features a specialized internal swirl flow design that stabilizes the plasma arc at lower pressures, resulting in a smoother, dross-free cut surface.
Extended Service Life: Manufactured from virgin copper alloys selected for their superior thermal conductivity, the HALANSM 220930 resists premature melting and erosion, offering more cuts per tip compared to generic alternatives.
Seamless Drop-In Replacement: Precision-machined to exact OEM tolerances, this nozzle installs effortlessly onto your existing Hypertherm shield cap and retaining cap without requiring adjustments.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
