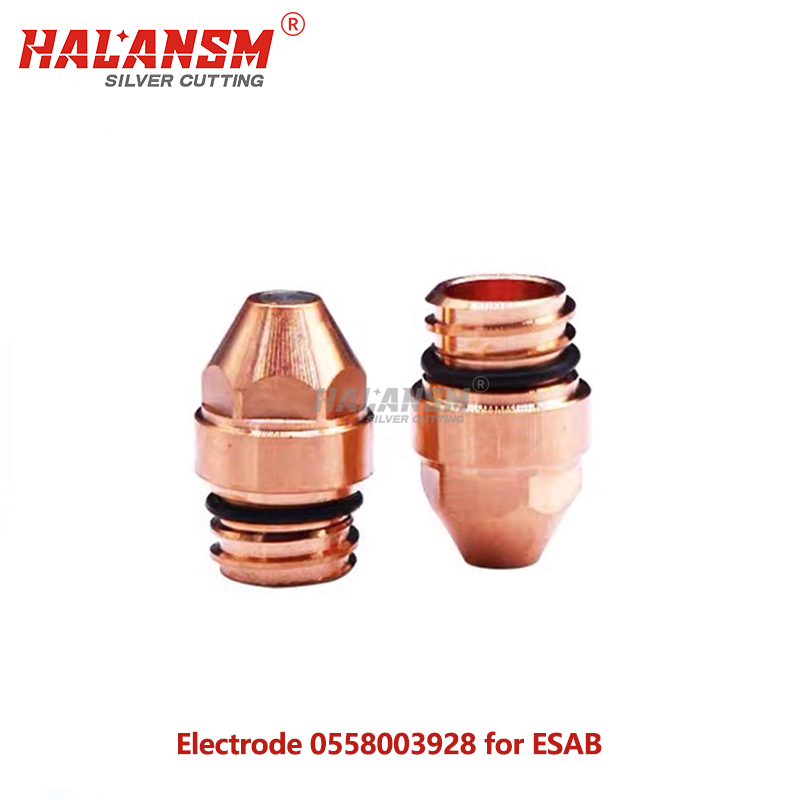

Electrode 0558003928 For ESAB PT36 Plasma Cutting Torch Consumables (600A N2 H35)
The electrode is the heart of the plasma cutting torch that generates the arc. 0558003928 is the dedicated 600A electrode for the ESAB PT36 system—specifically engineered to handle high-current operations with nitrogen (N2) and H35 gas mixtures.
Key Features
High Current Capability (600A): Specifically designed for heavy-duty industrial applications, providing a stable and powerful arc for cutting thick materials efficiently.
Optimized for N2 & H35 Gases: Features advanced material composition and internal hafnium insert technology to withstand the aggressive nature of nitrogen and H35 gas plasmas.
Superior Thermal Management: Constructed from high-purity copper alloys offering exceptional thermal conductivity to dissipate heat effectively and reduce electrode erosion.
Extended Service Life: Precision-machined to exact OEM tolerances, ensuring optimal performance and longevity, thereby reducing your overall production costs.
Direct OEM Interchangeability: Designed to match ESAB 0558003928 specifications exactly. Drop-in replacement with no modifications required for easy installation.
Compatible PT36 High-Amperage Stack Reference
Position | Component | Reference Number |
|---|
Electrode | 0558003928 | 0558003928 |
Swirl / Baffle | PT36 Swirl Ring Family | 0558002533 / 21944 |
Nozzle | 0558006025 (300A+) | 0558006025 |
Shield Cap | 0558006166 (6.6mm) | 0558006166 |
Retaining Cap | PT36 Retaining Cap | 37082 / 37081 |
Torch Body | 0558003804 | 0558003804 |
Real Shot: Actual product photos shown above represent the exact item you will receive.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
Download the complete product brochure：
