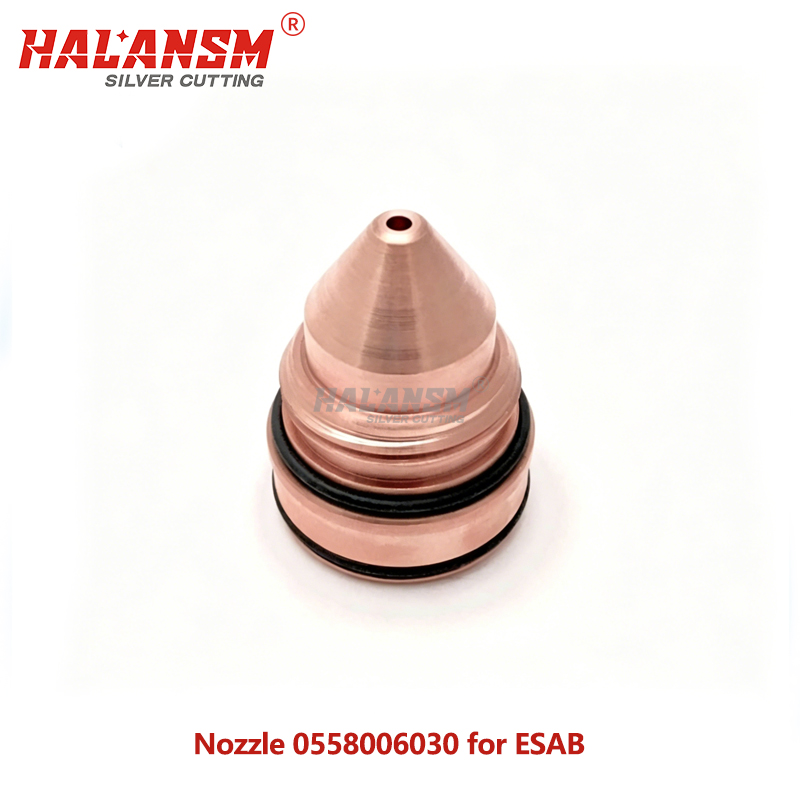

Nozzle 0558006030 For ESAB PT36 Plasma Cutting Torch Consumables (3.0mm 360A)
The nozzle is the part that constricts and directs the plasma arc. 0558006030 is the 3.0mm / 360A nozzle in the ESAB PT36 stack—positioned right after the swirl ring to compress the arc column and deliver a focused, high-velocity gas jet for mid-thickness plate work.
Key Features

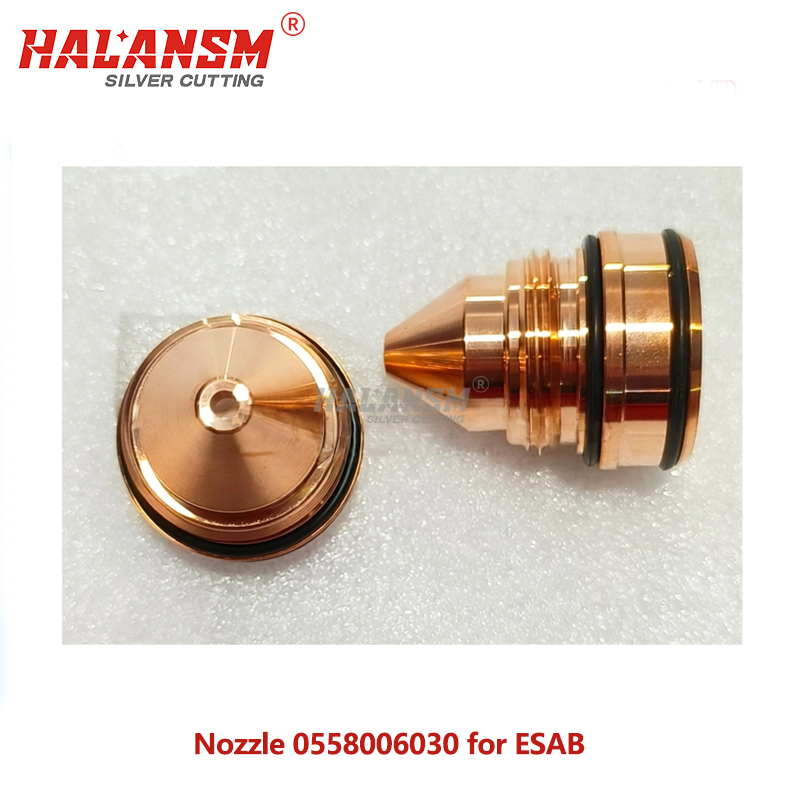

Precision 3.0mm Orifice： Bore finished to ESAB PT36 geometry so the plasma jet stays consistent; critical for edge squareness and dross control at 360A.
High Thermal Conductivity： Copper alloy body dissipates heat from the arc zone, keeping shape stable and life predictable under sustained 360A runs.
O-Ring Seal Land： Smooth seat surface mates with the shield cup to prevent gas bypass and cooling-water weep at high pressure.
Drop-In Fit： Threads, length and outer profile follow the ESAB 0558006030 envelope—no filing, no shimming.
Compatible 360A PT36 Stack Reference（同系列口径）
Pos | Component | Ref # |
|---|
Electrode | 0558012000 | 0558012000 |
Swirl / Baffle | PT36 swirl family | 0558002533 / 21944 |
Nozzle | 0558006030 | 0558006030 |
Shield Cap | 0558006166 (6.6mm, 290-450A) / next size | 0558006166 |
Retaining Cap | PT36 retaining | 37082 / 37081 |
Torch Body | 0558003804 | 0558003804 |
Real Shot: Actual product photos shown above represent the exact item you will receive.
