The 420273 Shield is the outer protective sleeve for Hypertherm XPR300/XPR170 stacks running 220A mild steel (O₂/Air). It locks alignment, protects the nozzle/electrode from spatter and heat, and preserves the gas column so your edge stays straight and dross stays manageable—while letting you run longer between changeouts.
420273
HALANSM
HLN-420273
Shield 420273 for Hypertherm XPR300 Plasma Cutting Torch Consumables 220A
The shield is the outermost sleeve of the torch head. Its job is simple but critical: keep the nozzle/electrode stack aligned, protect internals from molten spatter, and maintain the correct standoff so the gas path—and therefore the arc—stays stable on thicker plate.
Key Features
220A O₂/Air Geometry: Bore/length/contour follow the XPR300 mild‑steel 220A envelope so gas forms correctly and you don’t chase “random edge change.”
Precision O‑Ring Lands (via 420200/retaining interface): Smooth seat surfaces help prevent cooling‑water weep and gas bypass—two silent killers of cut stability.
High‑Purity Copper: Better thermal mass/conductivity than soft/impure copies; resists heat creep and keeps the stack truer for more cuts per set.
Drop‑In Fit: Built to the OEM envelope so it seats correctly with Retaining Cap 420200 / 420365 and the rest of the 220A stack.
Typical 220A (O₂/Air) Stack Reference
Pos | Component | Ref # |
|---|---|---|
Retaining Cap | 420200 / 420365 | 420200 / 420365 |
Shield | 420273 | 420273 |
Nozzle | 420270 | 420270 |
Swirl Ring | 420406 | 420406 |
Electrode | 420276 | 420276 |
Water Tube | 420368 | 420368 |

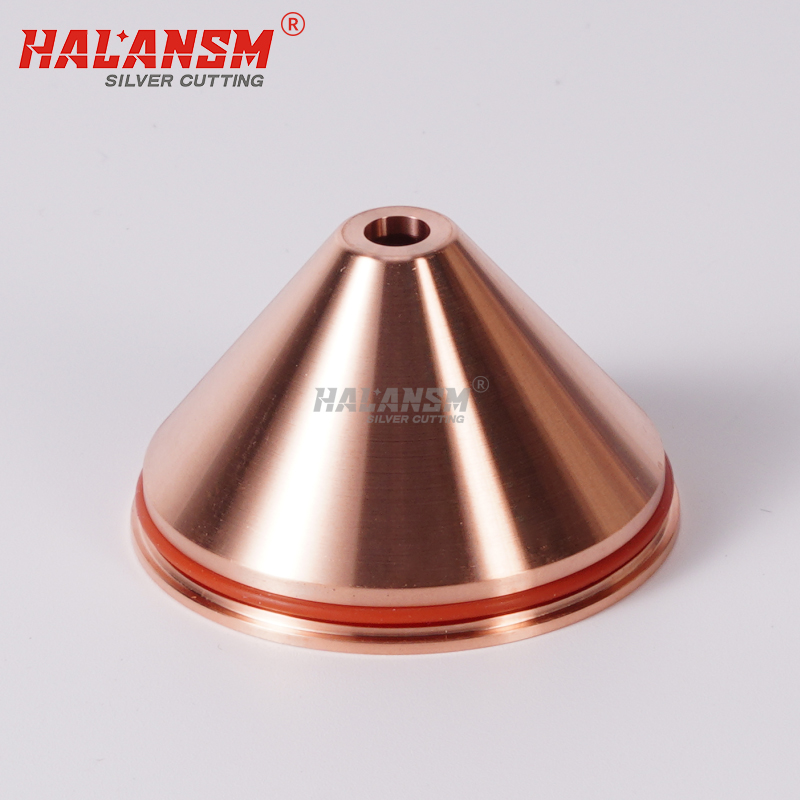

Real Shot: The image above displays the actual HALANSM 420513 shield cap, showcasing its high-polish copper finish and precision-machined base for reliable, heavy-duty operation.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
