The 520001 Nozzle is the high-amperage orifice component for Hypertherm XPR460 / XPR300 stacks running ~460A mild steel (O₂/Air). Its precision bore compresses and focuses the plasma/gas column into a tight, repeatable jet so thick-plate edges stay square, pierce starts behave, and nozzle wear stays controllable under extreme thermal load.
520001
HALANSM
HLN-520001

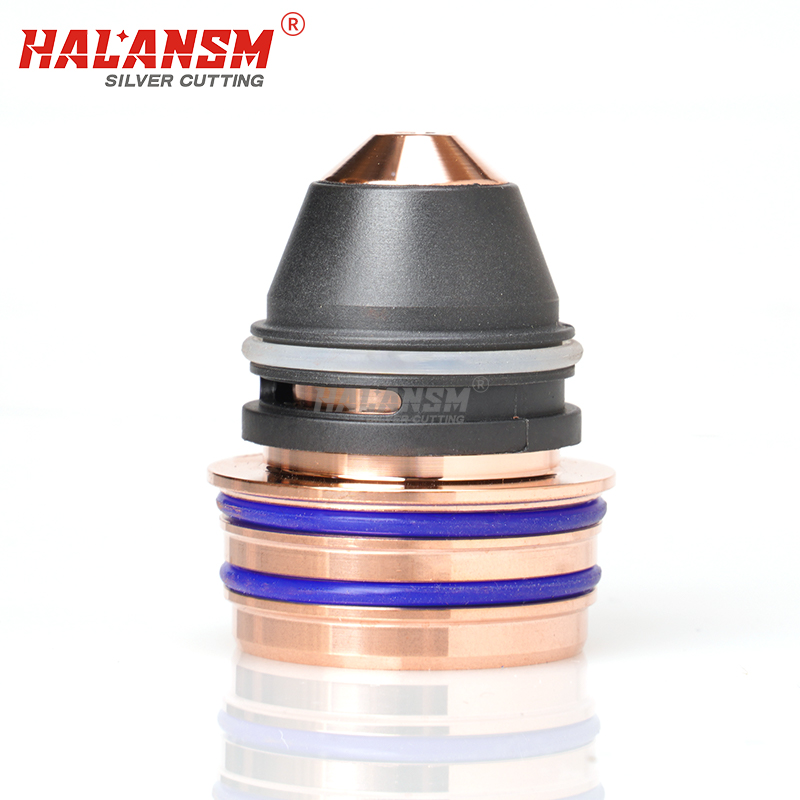

Nozzle 520001 For Hypertherm XPR Plasma Cutting Torch Consumables (~460A High-Amp Mild Steel)
The nozzle is the part that decides how tight your arc really is. 520001 is the ~460A mild-steel nozzle in the high-amperage XPR consumable stack: it compresses the arc column and directs the high-velocity gas stream so thick plate gets square edges with less dross and fewer edge drifts.
Key Features
Precision-Machined Orifice： Bore finished to the high-current nozzle envelope so the plasma jet leaves consistently—critical on thick plate where edge quality drives weld-prep cost.
High Thermal Conductivity： Copper alloy body pulls heat away from the arc zone under heavy, long-run duty; keeps shape stable and life predictable.
O₂/Air Mild Steel Geometry： Matched to the 460A shield/swirl ring/electrode stack（520002 / 420819 / long-life electrode）so gas sealing and flow alignment stay correct.
Drop-In Fit： Threads, length, and outer profile follow the Hypertherm 520001 envelope—no filing, no shimming.
Typical ~460A (O₂/Air) Stack Reference
Pos | Component | Ref # |
|---|---|---|
Electrode | long-life / Silver core class | 420276 |
Swirl Ring | 420819 | 420819 |
Nozzle | 520001 | 520001 |
Retaining Cap | 420200 / 420365 | 420200 / 420365 |
Shield Cap | 520002 | 520002 |
Water Tube | 420368 | 420368 |
Real Shot: Actual product photos shown above represent the exact item you will receive.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
