Optimize Your ESAB PT-36 Performance
The ESAB PT-36 is a versatile and widely used plasma torch platform known for its durability and cut quality. To maintain peak performance, regular replacement of front-end consumables is essential. Our catalog covers all the wear parts your torch will need throughout its service life.
Key Component Categories:
Electrodes: The heart of the plasma arc. Our compatible electrodes feature high-conductivity copper construction with precision inserts to ensure long life and consistent piercing capabilities across thick and thin materials.
Nozzles: Controls the arc constriction and gas flow. We offer a full range of standard and XR (Extended Range) nozzles in various diameters to match your specific cutting amperage and material type (mild steel, stainless steel, aluminum).
Shield Cups: Positioned below the nozzle, these components deliver secondary shield gas to protect the cut surface from oxidation and improve cut edge quality. We stock various lengths and bore sizes to suit different cutting heights and processes.
Swirl & Diffuser Assemblies: These precision-machined parts create a vortex gas flow that centers the plasma arc, preventing double arcing and ensuring a clean, square cut edge.
Retaining Hardware: Includes retaining caps, o-rings, and seals designed to keep the torch head cool, leak-free, and properly assembled under demanding industrial conditions.
Why Choose Our Compatible PT-36 Parts?
Cost-Effective: Reduce operational costs without compromising on cut quality or component lifespan.
Wide Availability: In stock and ready to ship for immediate restocking of your maintenance inventory.
Quality Matched: Manufactured to exacting tolerances to meet or exceed the performance standards of the original equipment.
Applications:
Ideal for fabrication shops, automotive repair, shipbuilding, and heavy equipment maintenance utilizing ESAB PT-36 plasma cutting systems.

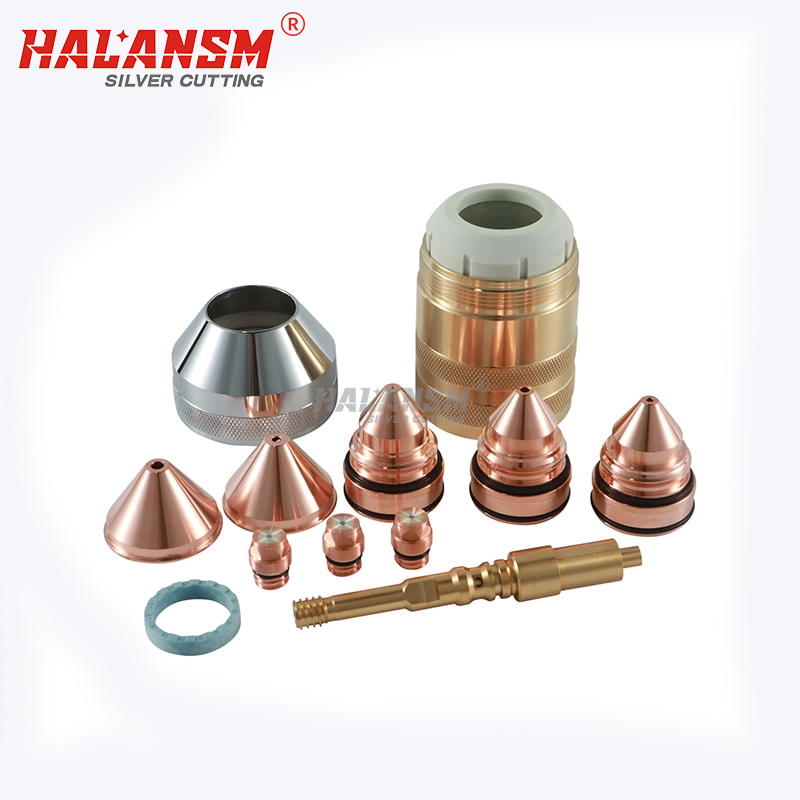

Real Shot: Actual product photos shown above represent the exact item you will receive.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
ITEM | PART NO. | DESCRIPTION |
| 1 | D37081 | Shield cap 50A-600A |
| 2 | D0558007624 | Shield cap 2,4mm |
| D0558006130 | Shield cap 3,0mm |
| D0558006141 | Shield cap 4,1mm |
| D0558006166 | Shield cap 6,6mm |
| D0558006199 | Shield cap 9,9mm |
| 3 | D21944 | Diffuser 50A-600A |
| 4 | D37082 | Retaining cap 50A-600A |
| 5 | D0558006010 | Nozzle 1.0mm, 50A (.040”) |
| D0558006014 | Nozzle 1,4mm, 100A (.055”) |
| D0558006018 | Nozzle 1,8mm, 130A (.070”) |
| D0558006020 | Nozzle 2.0mm, 200A (.080”) |
| D0558006023 | Nozzle 2.3mm, 280A (.090”) |
| D0558006025 | Nozzle 2,5mm, 300A (.099”) |
| D0558006030 | Nozzle 3.0mm, 360A (.120”) |
| D0558006036 | Nozzle 3,6mm, 450A (.141”) |
| D0558006041 | Nozzle 4,1mm, 600A (.161”) |
| 6 | D0558003914 | Electrode 50A-600A Std., O2 (SC) |
| 7 | D0558003924 | Electrode holder |
