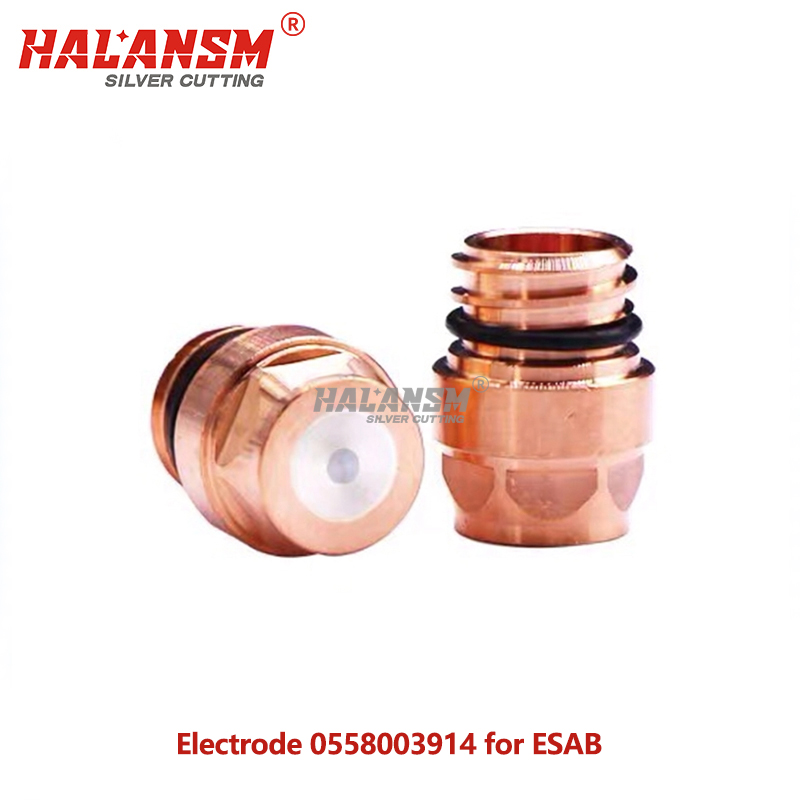

Electrode 0558003914 For ESAB PT36 Plasma Cutting Torch Consumables (450A)
The electrode is the heart of the plasma cutting torch that generates the arc. 0558003914 is the dedicated 450A electrode for the ESAB PT36 system—positioned at the very tip of the torch stack to initiate and sustain the plasma arc.
Key Features
Optimized 450A Performance: Specifically engineered for 450A output, providing a stable and consistent arc initiation for efficient cutting on medium to thick materials.
Advanced Material & Design: Constructed from high-purity copper alloys with a reinforced swirl tip geometry to enhance thermal conductivity and significantly slow down electrode erosion.
Superior Heat Resistance: Features a high-quality hafnium insert at the core, designed to withstand the extreme thermal loads and electrical stress of high-current plasma operations.
Extended Service Life: Precision-machined to exact OEM tolerances, ensuring optimal performance and longevity, thereby reducing the frequency of replacements.
Direct OEM Interchangeability: Designed to match ESAB 0558003914 specifications exactly. Drop-in replacement with no modifications required for easy installation.
Compatible 450A PT36 Stack Reference（同系列配件）
Position | Component | Reference Number |
|---|
Electrode | 0558003914 | 0558003914 |
Swirl / Baffle | PT36 Swirl Ring Family | 0558002533 / 21944 |

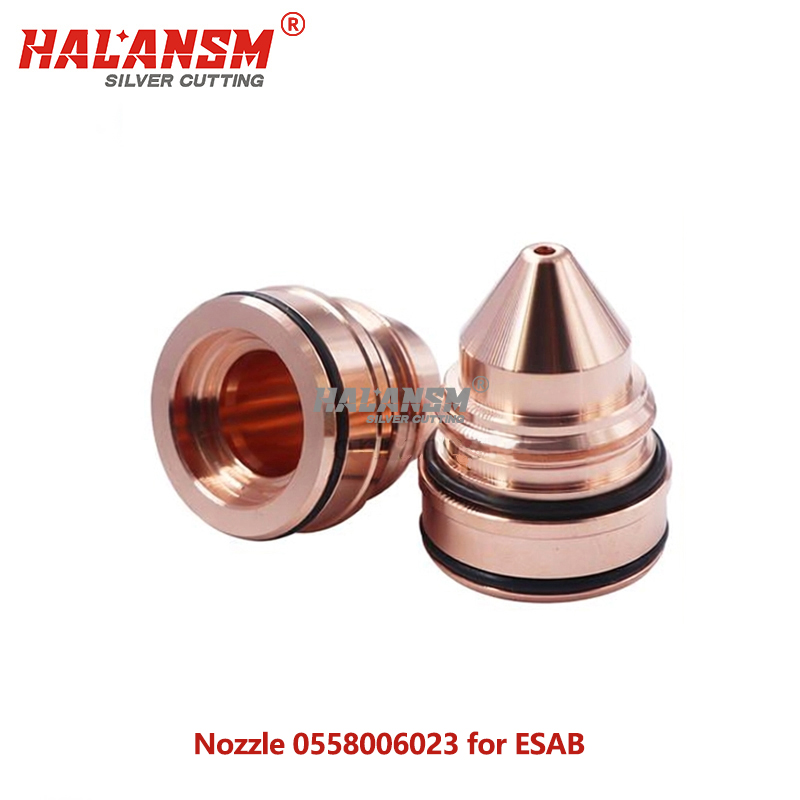

Nozzle | 0558006014 / 0558006023 | 0558006014 / 0558006023 |
Shield Cap | 0558006166 (6.6mm) | 0558006166 |
Retaining Cap | PT36 Retaining Cap | 37082 / 37081 |
Torch Body | 0558003804 | 0558003804 |
Real Shot: Actual product photos shown above represent the exact item you will receive.
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
Download the complete product brochure：
