The HALANSM 228716 Main Body is the backbone of your Powermax torch system. Engineered for durability and precision, this OEM-equivalent component ensures optimal electrical conductivity and cooling, providing a rock-solid foundation for your electrodes and nozzles while significantly extending the service life of your plasma cutter.
228716
HALANSM
HLN-228716

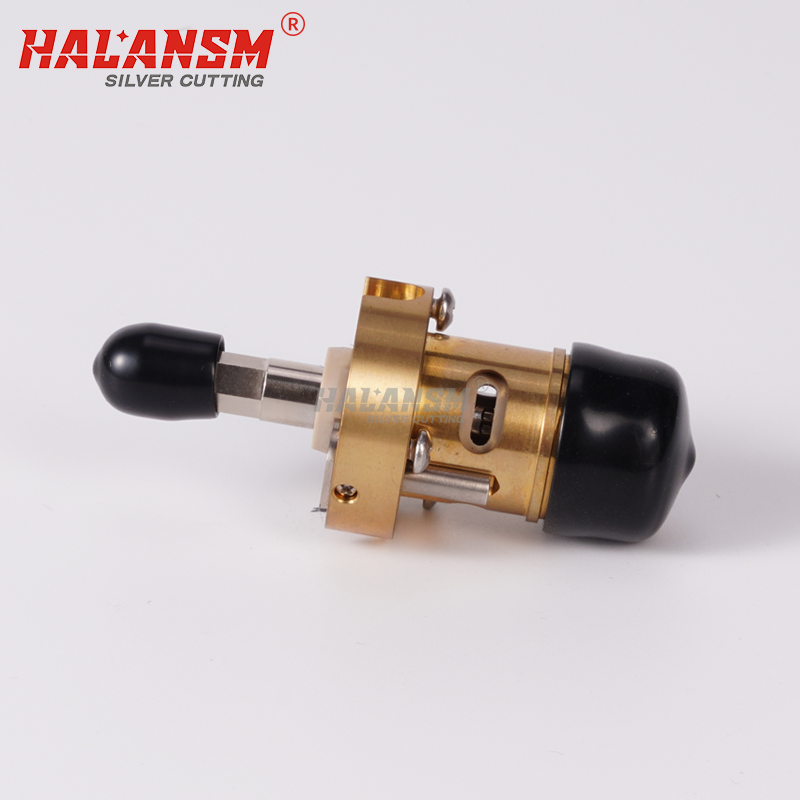

HALANSM Main Body 228716 – The Core of Your Plasma System
The torch main body is arguably the most critical component in your plasma cutting assembly. It houses the internal water channels for cooling and provides the conductive pathway for the high-voltage arc. The HALANSM 228716 is designed as a direct replacement for the Hypertherm OEM part, offering industrial-grade performance at a competitive price.
Why Choose HALANSM 228716?
Superior Thermal Management: Machined from high-purity copper alloys, the HALANSM main body offers excellent thermal conductivity. It effectively dissipates heat away from the electrode and nozzle, preventing premature burn-out and allowing for longer cutting cycles .
Precision CNC Machining: Every HALANSM 228716 is manufactured to exacting tolerances. The O-ring grooves and thread patterns are precision-machined to ensure a perfect, leak-proof seal every time you assemble your torch .
Peak Electrical Conductivity: A stable, low-resistance connection is essential for a consistent plasma arc. Our main bodies are engineered to maintain optimal electrical transfer, ensuring clean, dross-free cuts just like the original equipment .
Drop-In Installation: Forget about modifications or shimming. The HALANSM 228716 is designed as a true "plug-and-play" solution, making torch reconditioning quick and hassle-free .
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
