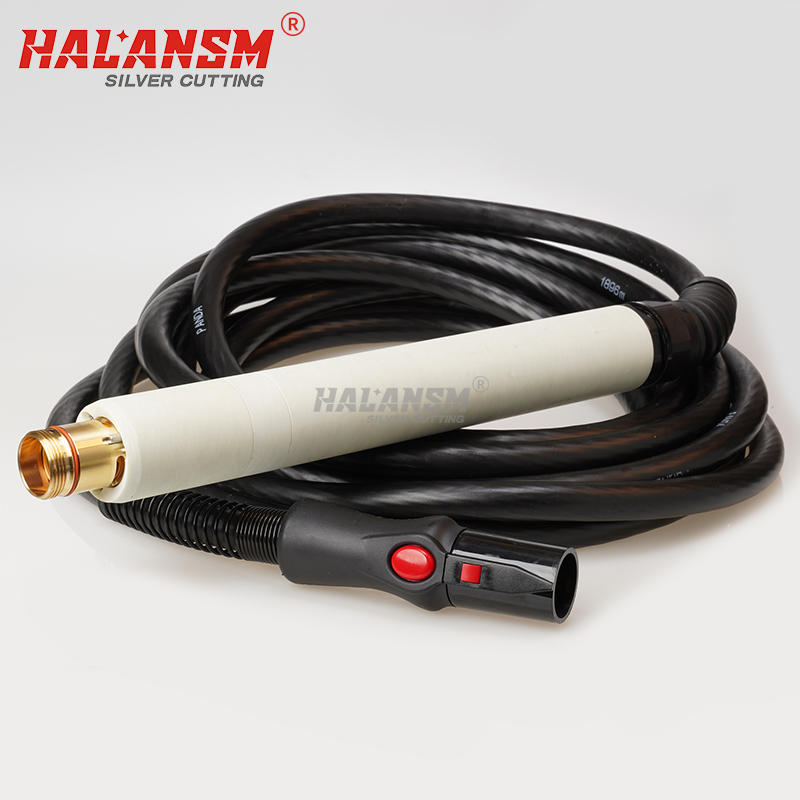

HALANSM plasma cutting torch with cable assembly for Hypertherm Powermax 65 85 105, compatible 059472 059473 059474 HALANSM plasma cutting torch with cable assembly for Hypertherm Powermax 65 85 105, compatible 059472 059473 059474

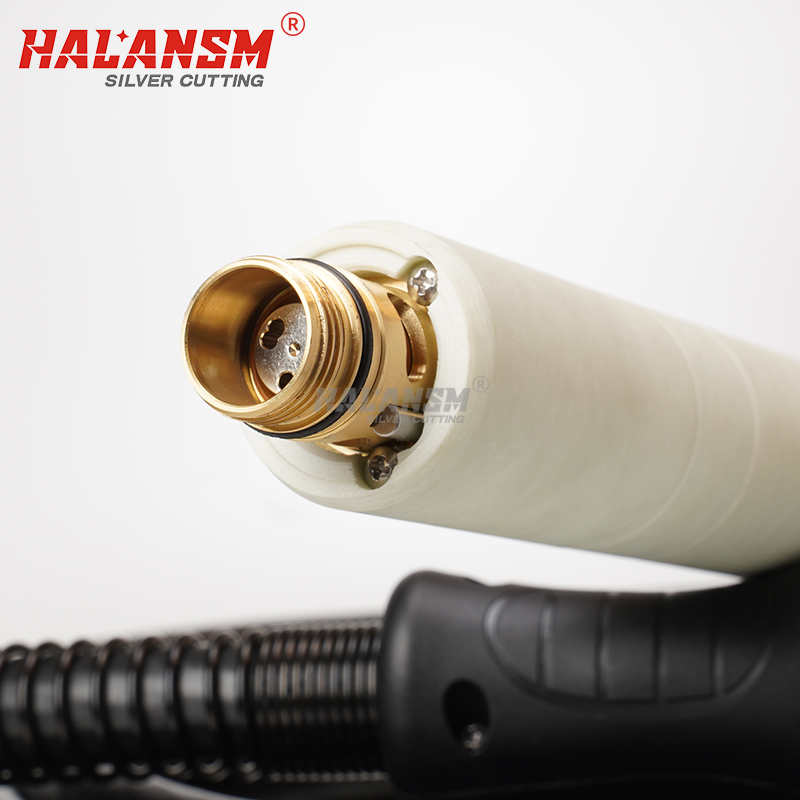

Ceramic torch head detail on HALANSM Powermax torch, heat resistant insulator for 105A cutting Ceramic torch head detail on HALANSM Powermax torch, heat resistant insulator for 105A cutting

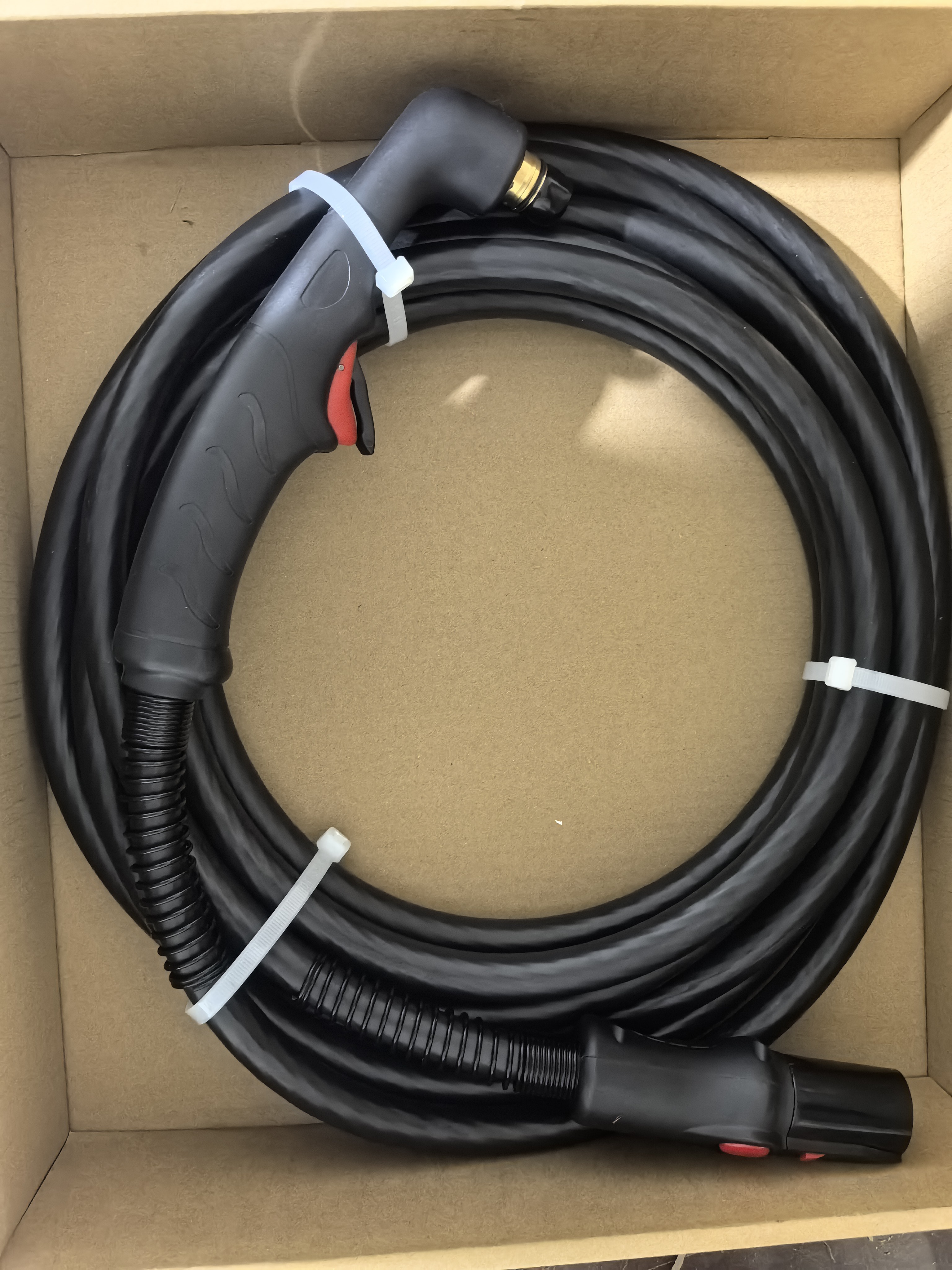

Ergonomic handle with red trigger and safety lever on HALANSM Powermax handheld torch Ergonomic handle with red trigger and safety lever on HALANSM Powermax handheld torch

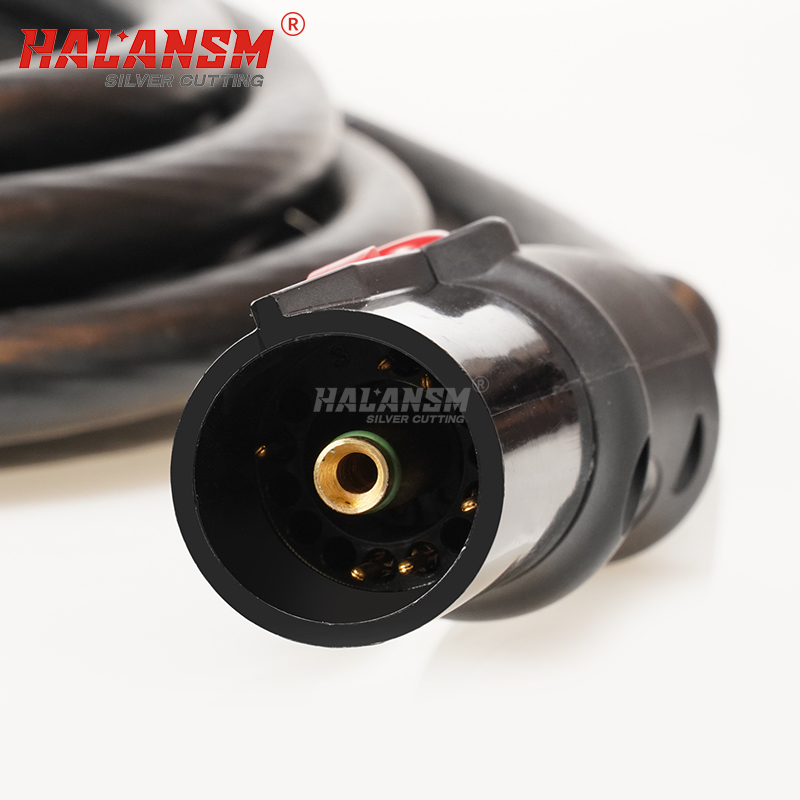

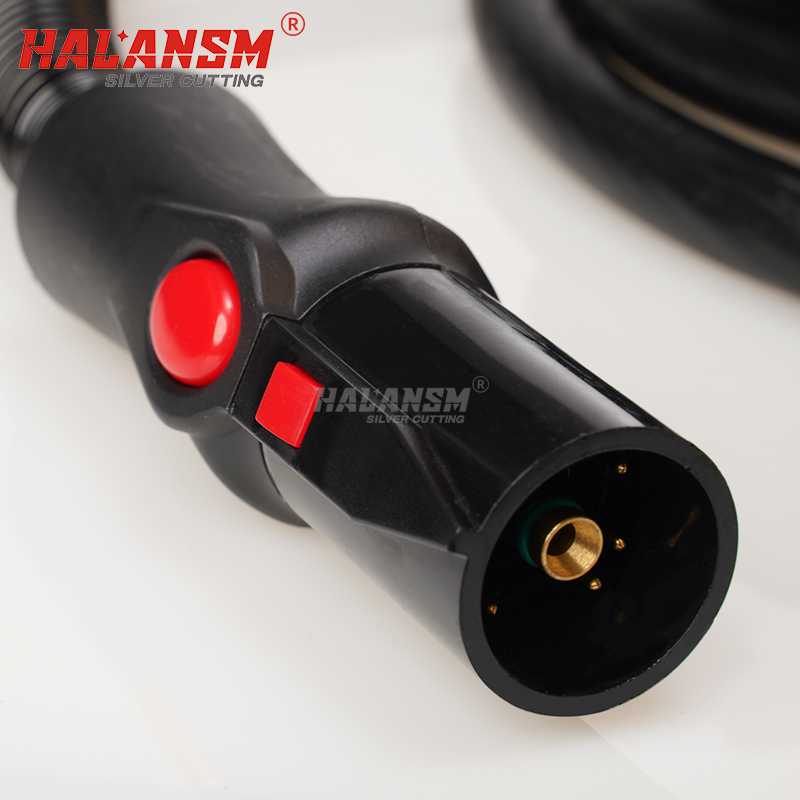

7-pin Euro-style power connector on HALANSM Powermax torch cable, secure pin configuration 7-pin Euro-style power connector on HALANSM Powermax torch cable, secure pin configuration

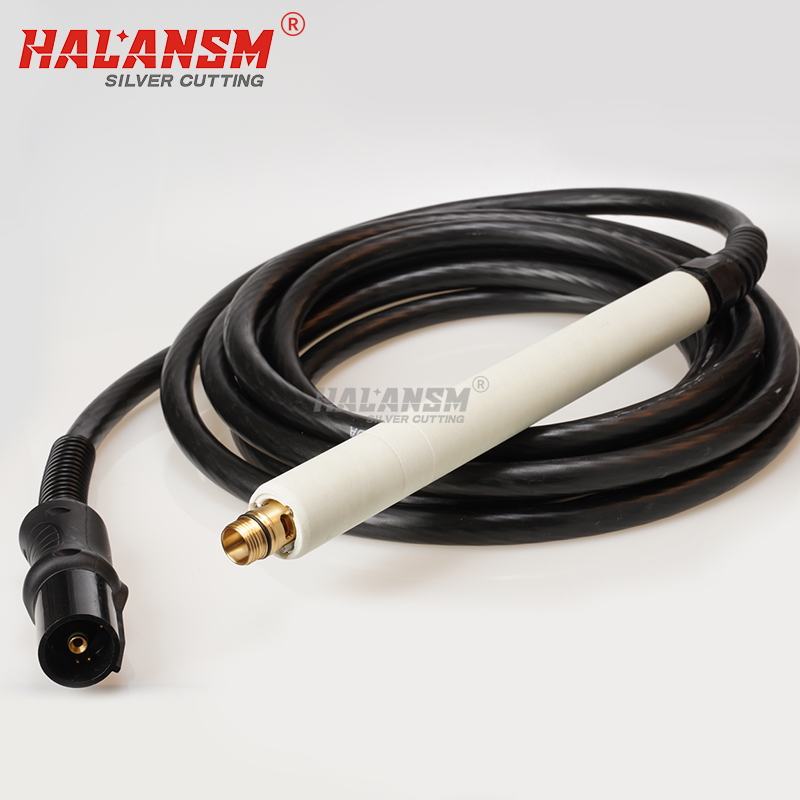

Heavy-duty rubber cable coiled view, HALANSM Powermax torch lead 15ft 25ft 50ft 75ft options Heavy-duty rubber cable coiled view, HALANSM Powermax torch lead 15ft 25ft 50ft 75ft options
HALANSM replacement torch lineup vs OEM, covers 059470 059471 059472 059473 059474 059475 059476 059477 059478 059479 059480 059481 059482 059483 059484 059466 059487 HALANSM replacement torch lineup vs OEM, covers 059470 059471 059472 059473 059474 059475 059476 059477 059478 059479 059480 059481 059482 059483 059484 059466 059487

loading

Plasma Cutting Torch With Cable For Hypertherm Powermax 65 85 105 (059470–059487 Series)

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM Plasma Cutting Torch with Cable​ is a full replacement assembly for the Hypertherm Powermax 65 / 85 / 105 platform (Duramax handheld family). Built around a heat-resistant ceramic head, reinforced rubber lead and 7-pin Euro quick-disconnect, it drops straight onto the power supply and pairs with the full PM consumable stack (220842 / 220990 / 220994 / 220993 etc.). Available across the 059470–059487 OEM cross-reference range​ with multiple cable lengths, so one HALANSM torch covers handheld drag, light mechanized and CNC gantry work without swapping bodies.

  • 059470 / 059471 / 059472 / 059473 / 059474 / 059475 / 059476 / 059477 / 059478 / 059479 / 059480 / 059481 / 059482 / 059483 / 059484 / 059466 / 059487

  • HALANSM

  • HLN-TORCH-0594xx (assign per length)

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Product Type
Plasma Cutting Torch with Cable Assembly
Torch Style
Handheld (Duramax-style / compatible SL60/SL100 envelope)
Compatible Machines
Hypertherm Powermax 65 / 85 / 105
Amperage Range
65A – 105A
Cooling
Air-Cooled
Cable Connector
7-Pin Euro-Style Quick Disconnect
Cable Length Options
15 ft / 25 ft / 35 ft / 50 ft / 75 ft
Lead Construction
Reinforced rubber / dual-line (power + trigger)
Head Material
High-temp ceramic insulator + copper alloy contacts
OEM Cross-Reference
059470–059487 series (see full list below)



Plasma Cutting Torch With Cable For Hypertherm Powermax 65 85 105 (059470–059487)

The torch is the interface between your power supply and the plate. The HALANSM Powermax torch assembly replicates the Duramax handheld envelope so every PM consumable (220842 electrode, 220990 nozzle, 220994 swirl, 220993 / 220992 shield, 220854 / 220953 retaining) seats exactly as OEM intended—no filing, no shimming, no arc wander from poor contact.


Key Points (buyer-facing)

  • Full 059470–059487 Coverage: HALANSM supplies the complete cross-reference spread—059466 (short lead) through 059487 (long lead / regional variant), so you don't have to guess which "059472" your machine actually shipped with.

  • Cable Length by Amperage: 15ft for bench/workcell, 25–35ft for general fab, 50–75ft for large gantry or outdoor repair. Euro 7-pin connector clicks into the Powermax front panel without adapter.

  • Ceramic Head Thermal Load: Ceramic insulator rated for sustained 105A drag and short mechanized runs—doesn't soften like nylon copies, so the consumable stack stays concentric longer.

  • Trigger & Safety Lever: Red trigger with spring-return + safety latch matches OEM hand-feel; spare triggers / O-rings serviceable from the front.


Full OEM Cross-Reference (059470–059487 series)

HALANSM torch assemblies cover the following Hypertherm OEM numbers:

HALANSM Replaces OEM

Typical Cable / Note

059466

Short lead variant

059470

Powermax 65/85/105 family

059471

Powermax 65/85/105 family

059472

75 ft / 22.8 m (most common long lead)

059473

Regional / config variant

059474

Regional / config variant

059475

Powermax 105 family

059476

Powermax 85/105 family

059477

Powermax 85/105 family

059478

Powermax 85/105 family

059479

Powermax 85/105 family

059480

Powermax 85/105 family

059481

Powermax 85/105 family

059482

Powermax 85/105 family

059483

Powermax 85/105 family

059484

Powermax 85/105 family

059487

Long lead / regional variant

Ordering tip:If you're not sure whether you need 059472 vs 059474, tell us (a) Powermax model + (b) cable length you currently use + (c) handheld vs mechanized, we'll map the right HALANSM SKU.

Typical Consumable Stack on This Torch (reference)

Pos

Component

Ref #

Electrode

220842 / 220777

220842 / 220777

Swirl Ring

220857 (≤85A) / 220994 (105A)

220857 / 220994

Nozzle

220941 / 220816 / 220990

220941 / 220816 / 220990

Shield Cap

220818 (hand) / 220817 (mech) / 220993 (105A)

220818 / 220817 / 220993

Retaining Cap

220854 / 220953

220854 / 220953

Torch Body / Lead

HALANSM 059470–059487 series

HALANSM


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
