The HALANSM 220953 is the dedicated heavy-duty retaining cap engineered for Hypertherm Powermax 105A mechanized (CNC/gantry) applications. Unlike standard handheld caps, this specialized component features a robust mechanical interface (Ohmic contact) designed to withstand the intense vibration, acceleration, and thermal cycling of automated high-speed cutting. It locks the electrode, swirl ring, and nozzle into perfect alignment, ensuring maximum consumable life and superior cut quality in robotic environments.
220953
HALANSM
HLN-220953

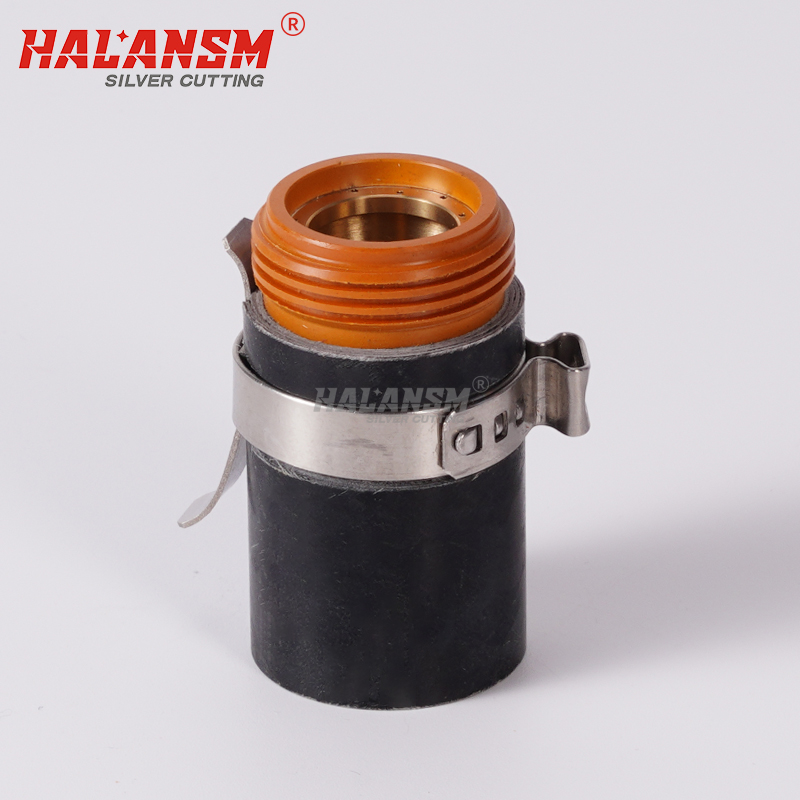

HALANSM 220953 – Heavy-Duty Mechanized Retaining Cap
When operating the Hypertherm Powermax 105 on a CNC gantry or robotic arm, standard hand-held torch components are prone to loosening, overheating, and inconsistent cuts due to severe vibration. The HALANSM 220953 Retaining Cap is specifically designed to solve this problem.
As the "keystone" of the plasma torch consumable stack, this cap does more than just hold parts together; it actively grounds the torch head through its integrated Ohmic contact system, stabilizing the plasma arc for cleaner, faster cuts.
Key Features of HALANSM 220953:
Mechanized-Only Design: Specifically rated for 105A full mechanized operations. The integrated grounding lug ensures a stable electrical path even under high-frequency vibration.
Industrial-Grade Durability: Forged from premium copper alloys selected for extreme thermal conductivity and resistance to thread galling, ensuring the cap maintains its grip mile after mile of cutting.
Arc Centering Technology: Precision-machined internal geometry centers the consumable stack perfectly, which is critical for achieving precise hole quality and edge squareness in automated manufacturing.
Seamless Drop-In Fit: Threads directly onto the torch body against the shield cup. It is dimensionally identical to the OEM 220953, requiring no modifications or special tools for installation.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
