This HALANSM 228736 Adapter Ring is the critical connecting component designed for the Hypertherm Powermax M65/M85/M105 series machine torches. Acting as a robust mechanical coupler, it seamlessly links the mounting hardware to ensure precise alignment and structural integrity. Manufactured to withstand harsh industrial environments, this part prevents loosening and vibration, directly contributing to consistent cut quality and extended service life of your automated plasma systems.
228736
HALANSM
HLN-228736

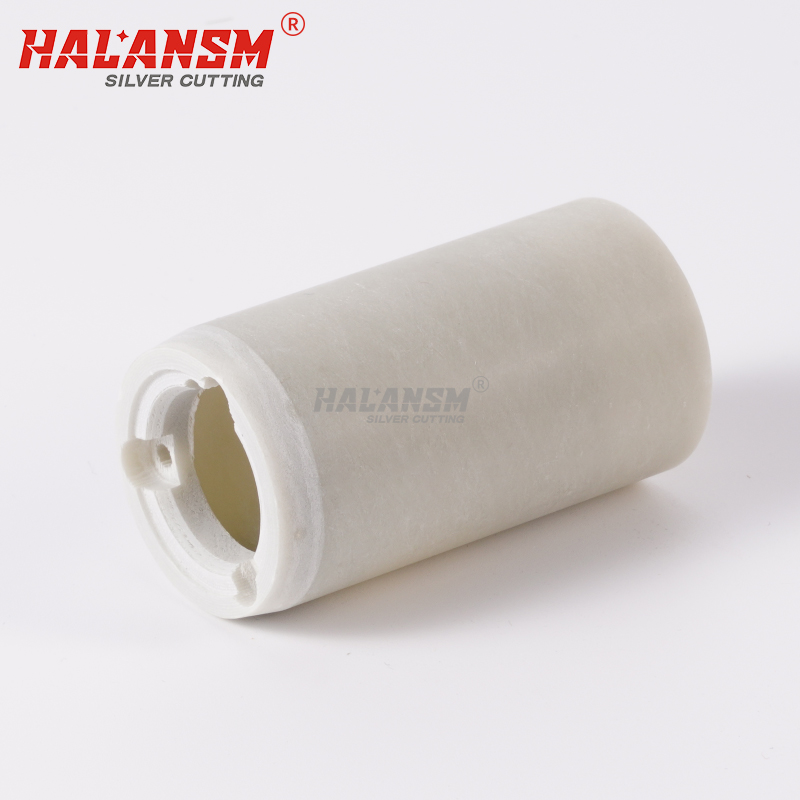

HALANSM Adapter Ring 228736 for Hypertherm Powermax M65 / M85 / M105 Machine Torch
In robotic or CNC plasma cutting systems, the connection between the torch and the machine interface must be exceptionally strong and precisely aligned. The HALANSM 228736 Adapter Ring serves as the central coupling link that ensures the complete torch assembly remains locked in place under extreme operational stress.
Key Features of HALANSM 228736:
Essential Mechanical Coupler: This part is specifically engineered to connect the Positioning Sleeve (228737) and the Mounting Sleeve (228735). It acts as the "bridge" that maintains the integrity of the torch's spine during high-speed automated cutting .
Anti-Vibration Design: In industrial automation, preventing unwanted movement is crucial. The 228736 adapter ring provides a tight, secure fit that eliminates play or wobble in the torch head, which is vital for maintaining cut accuracy and preventing premature wear of internal components.
Impact Resistance: Machine torches are often mounted on moving gantries where accidental collisions can occur. The HALANSM 228736 is constructed from high-strength, impact-resistant composite materials to withstand such stresses better than standard plastic alternatives.
Seamless Integration: Designed as a true OEM equivalent replacement for the Hypertherm 228736 part, it offers a perfect drop-in fit without requiring any modification to your existing torch cables or mounting hardware .
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
