220797 Halansm Nozzle – Hypertherm Powermax 45-105A Max Removal Gouging Tip

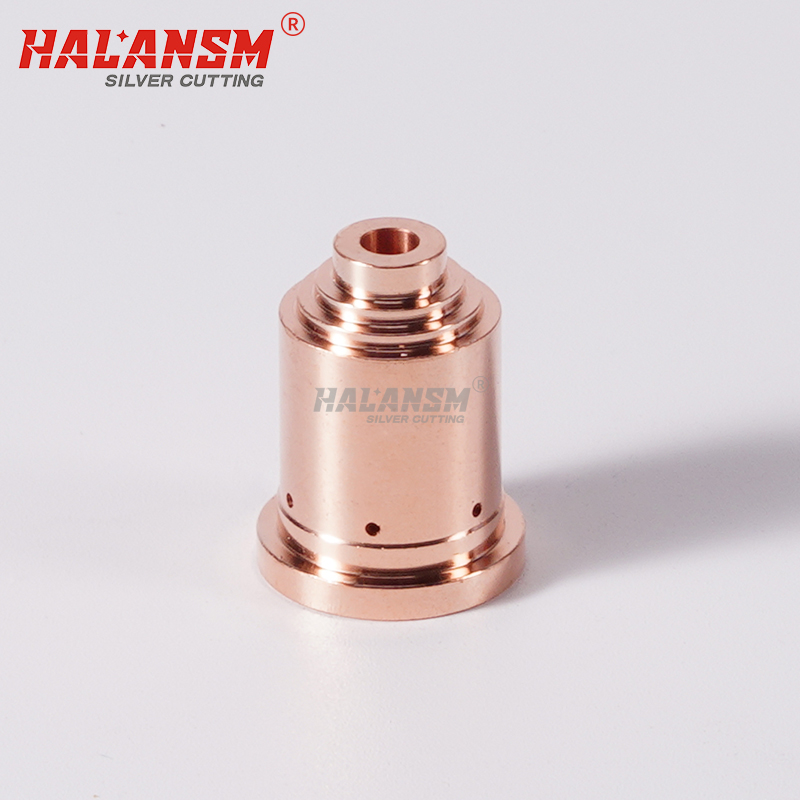

HALANSM 220797 Nozzle – Optimized for Aggressive Gouging & Metal Removal

When it comes to demanding metal fabrication tasks like carbon arc gouging or removing defective welds, having the right consumable is non-negotiable. The HALANSM 220797 gouging nozzle is purpose-built to handle the extreme thermal stresses of these applications, offering a robust and cost-effective alternative to OEM parts without sacrificing performance.

Key Features of HALANSM 220797:

• Aggressive Gouging Design: Engineered specifically for maximum metal removal rates, this nozzle features a reinforced internal structure and a precisely calculated orifice diameter. It allows for deeper, faster gouging compared to standard piercing nozzles, significantly boosting your workshop's productivity .

• Superior Thermal Management: Constructed from virgin, high-conductivity copper alloys, the 220797 efficiently dissipates intense heat away from the cutting zone. This thermal resilience prevents premature melting and uneven erosion, extending the consumable's operational life even under heavy use .

• Stable Arc Characteristics: The polished internal bore works in synergy with the swirl ring to induce a stable, rotating plasma vortex. This focused energy stream ensures cleaner groove profiles and reduces the likelihood of arc blow, even in challenging angles or tight spaces.

• Seamless Drop-In Fit: Manufactured to exact OEM tolerances, the HALANSM 220797 installs effortlessly into the torch head. It maintains perfect alignment with the retaining cap and shield, ensuring a secure seal and leak-free operation right out of the box .

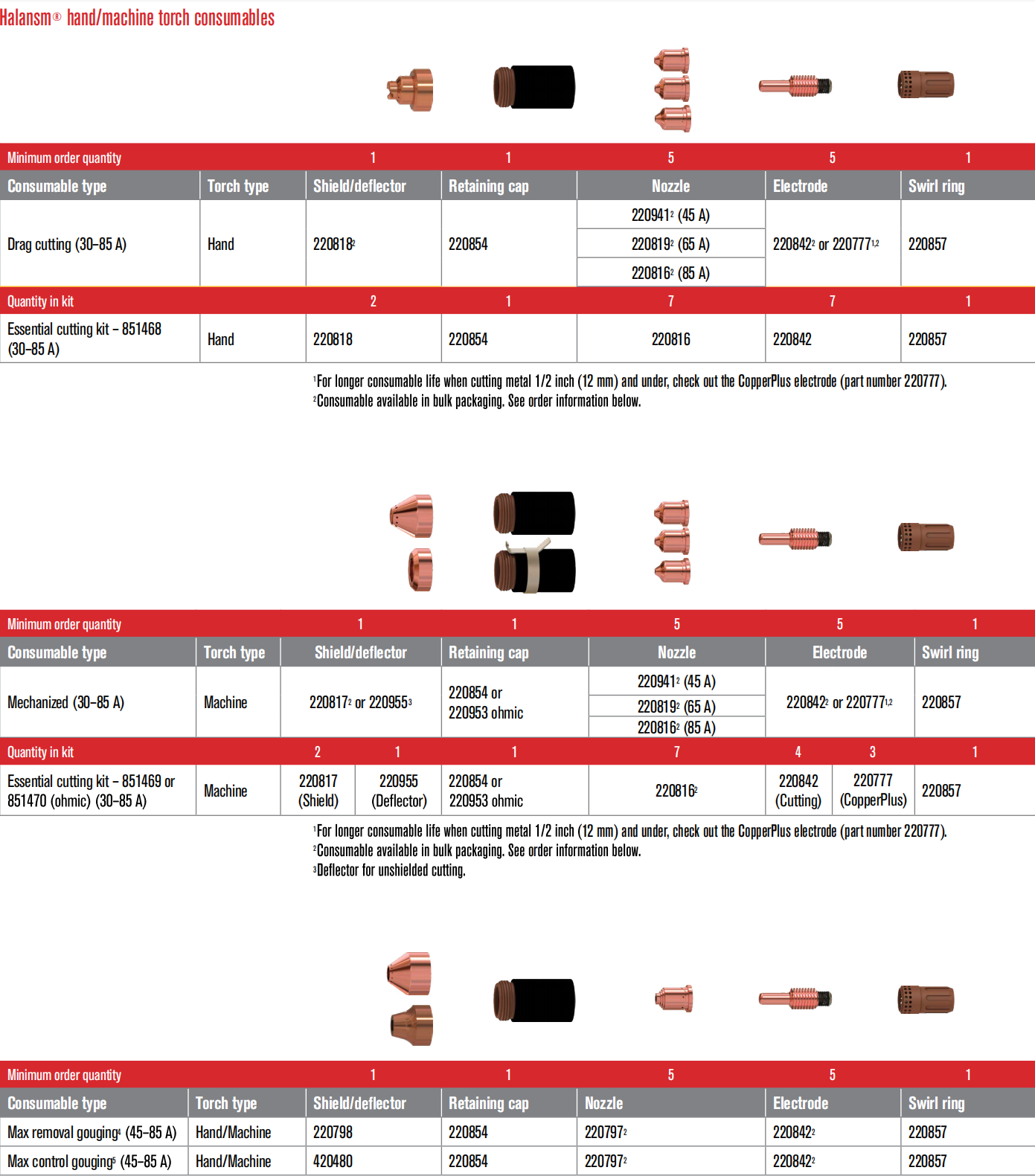

Compatible Powermax Consumable Stack:

For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.

Type	Amp	Shield/Deflector	Retaining Cap	Nozzle	Electrode	Swirl Ring
Hand	45	220818	220854	220941	220842 or 220777	220857
	65			220819
	85			220816
	105	220992		220990		220994
Machine	45	220817 or 220955	220854 or 220953	220941	220842 or 220777	220857
	65			220819
	85			220816
	105	220993 or 220955		220990		220994
Finecut	45	220931 220948	220854 or 220953	220930	220842	220947
Gouging	45-105	220798	220854	220797 220991	220842	220994

Disclaimer: This product is manufactured by HALANSM as a compatible replacement part. It is not created or endorsed by Hypertherm Inc. as an OEM product.

Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
