The HALANSM 220941 Nozzle is a critical consumable designed for the Hypertherm Powermax 105A plasma cutting system. Crafted with high-purity copper and advanced surface technology, it focuses the plasma arc into a fine, precise cutting stream. HALANSM guarantees exceptional dimensional accuracy and surface finish, providing a reliable, cost-effective alternative to OEM parts without compromising on cut quality or durability.
220941
HALANSM
HLN-220941

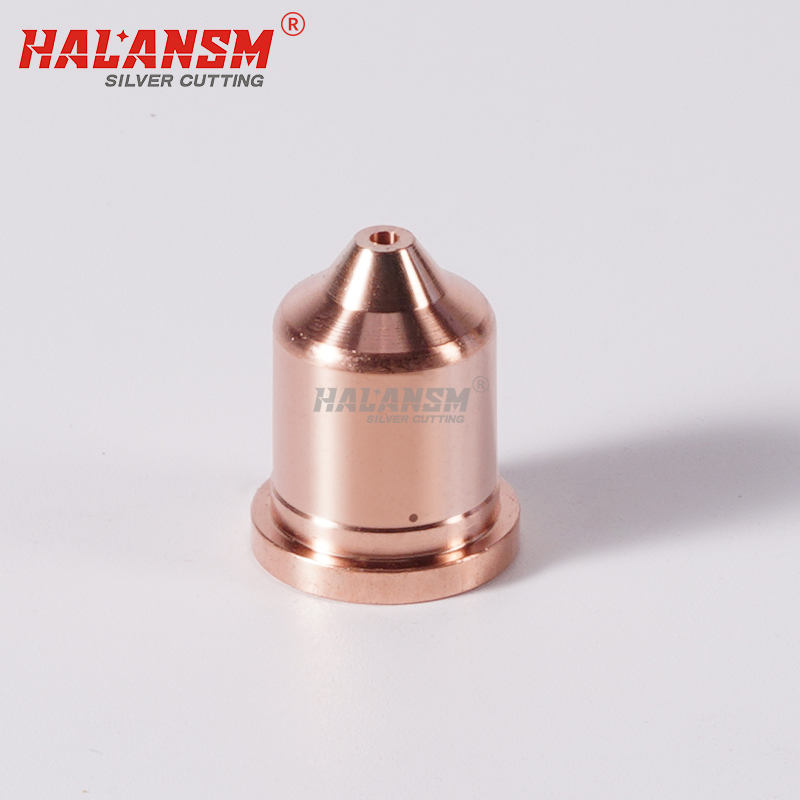

HALANSM 220941 Nozzle – Precision Cutting Performance
The plasma nozzle is one of the most crucial components in the consumable stack, responsible for directing the high-velocity plasma jet onto the workpiece. The HALANSM 220941 is manufactured to meet or exceed OEM standards, ensuring your Hypertherm Powermax 105A operates at peak efficiency.
Key Features:
Ultra-Precise Orifice: CNC-machined internal diameter ensures a consistent kerf width and superior edge quality, reducing post-cutting cleanup.
Enhanced Heat Dissipation: High thermal conductivity properties allow the nozzle to withstand prolonged cutting cycles while maintaining structural integrity.
Superior Erosion Resistance: Advanced manufacturing processes minimize premature wear, extending the service life of the nozzle compared to standard alternatives.
Perfect Fit Guarantee: Threads and seating dimensions are precision-matched to OEM specifications for a seamless drop-in replacement.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
