The HALANSM 220816 is the ultimate solution for heavy-duty plasma cutting applications. Designed as a direct replacement for the Hypertherm 220816, this nozzle is specifically engineered for 85-Amp output, delivering a stable, focused plasma arc capable of slicing through thick materials with precision. Its enhanced internal geometry ensures faster piercing times and a cleaner, dross-free cut surface, making it an indispensable component for fabrication shops focused on maximizing productivity and cut quality.
220816
HALANSM
HLN-220816

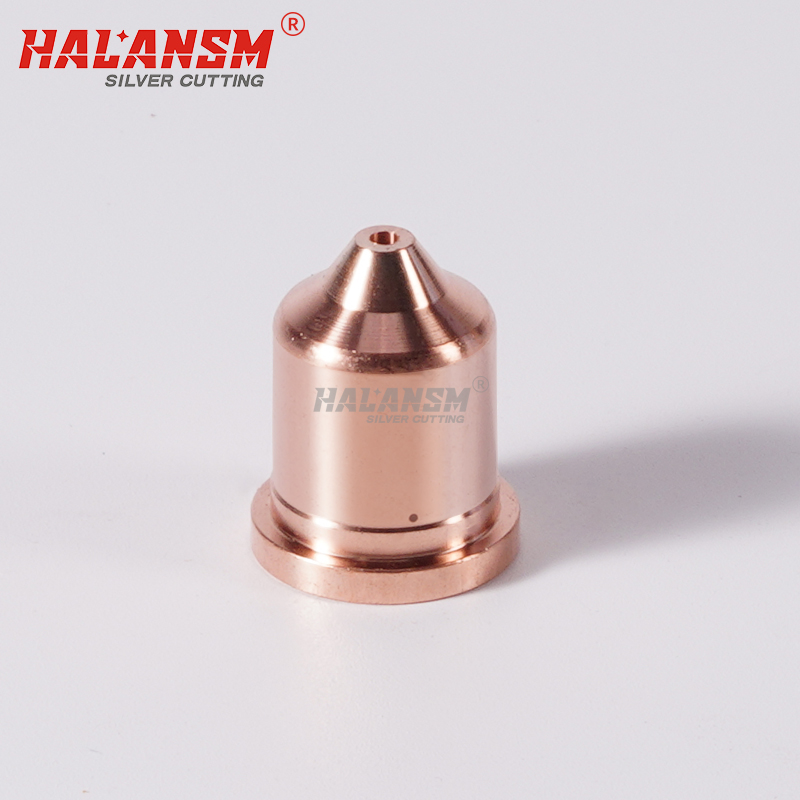

HALANSM 220816 Nozzle – Unleash the Power of 85A Precision Cutting
The plasma nozzle is the final critical component in the consumable stack, directly influencing cut quality, speed, and consumable longevity. The HALANSM 220816 is engineered to meet the rigorous demands of heavy-duty fabrication, providing a reliable and cost-effective alternative to OEM parts without compromising on performance.
Key Features of HALANSM 220816:
Heavy-Duty 85A Rating: Specifically designed for high-amperage cutting applications, the 220816 nozzle features a reinforced internal structure and a precisely drilled 1.5 mm orifice to handle the intense thermal load of thick metal processing .
Peak Thermal Conductivity: Constructed from virgin, high-purity copper alloys, the nozzle efficiently dissipates heat away from the cutting zone. This prevents premature melting and erosion, significantly extending the service life compared to standard or recycled copper tips .
Stabilized Plasma Arc: The precisely machined internal bore and smooth surface finish work in tandem with the swirl ring to create a laminar, rotating plasma flow. This results in faster piercing times, reduced dross adherence, and exceptionally square cut edges .
Seamless Drop-In Compatibility: Manufactured to exact OEM tolerances, the HALANSM 220816 installs effortlessly into the Hypertherm torch head. It works flawlessly with the existing retaining cap and shield, requiring no special tools or modifications.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
