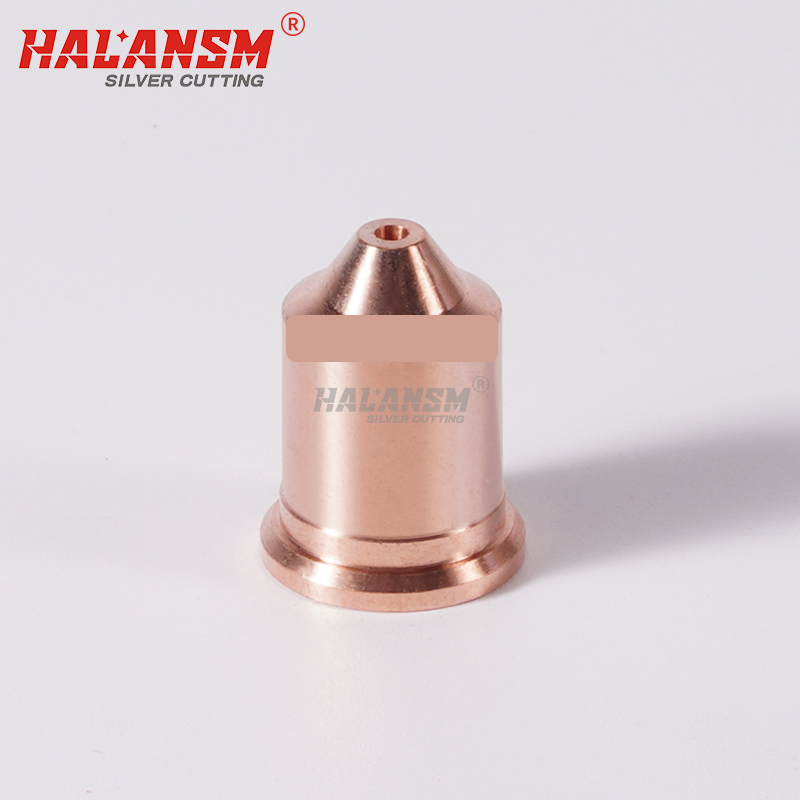

The HALANSM 220990 is the 105A standard nozzle in the Hypertherm Powermax 105 / 105A consumable stack. Precision-machined from high-purity copper alloy, it constricts and stabilizes the plasma arc for clean, dross-controlled cuts on heavier plate. Built to OEM envelope so it drops straight into the Powermax 105 torch (handheld / mechanized) alongside 220842 electrode, 220994 swirl, and 220993 or 220854 shield.
220990
HALANSM
HLN-220990
Nozzle 220990 For Hypertherm Powermax 105 / 105A Plasma Cutting Torch Consumables
The nozzle is the component that constricts and directs the plasma arc. 220990 is the 105A standard nozzle in the Powermax 105 stack—positioned after the swirl ring to compress the arc column and deliver a focused, high-velocity gas jet for medium-to-heavy plate work.
Key Features
105A Standard Bore： Machined to Powermax 105 geometry so the plasma jet stays consistent at full output—important for edge squareness and dross control on thicker material.
High Thermal Conductivity： Copper alloy body pulls heat away from the arc zone, keeping shape stable and life predictable under sustained 105A runs.
Swirl + Bore Sync： Internal finish works with the 220994 swirl to form a laminar vortex—cleaner pierce, less top-edge rounding, more cuts per tip.
Drop-In Fit： Threads, length and outer profile follow the 220990 OEM envelope—mates with shield 220993 (105A) or 220854, and retaining 220854 / 220953 with no filing.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
Download the complete product brochure：
