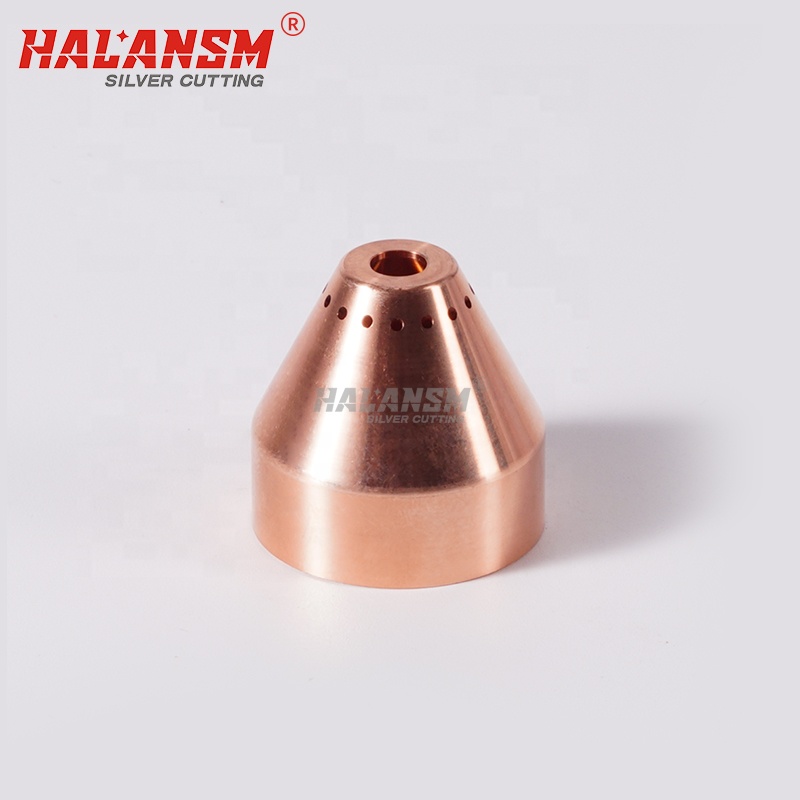

The HALANSM Shield Cap 220817 is a precision-machined, high-purity copper replacement designed for the Powermax 45, 65, and 85 systems when used with the Machine Torch. It protects the nozzle and inner consumables from spatter and thermal damage. Built to exact OEM dimensions, this 220817 shield ensures consistent standoff and arc integrity, providing reliable performance and extended service life for automated or hand-held mechanized cutting applications.
220817
HALANSM
HLN-220817
Shield Cap 220817 for Hypertherm Powermax 45 65 85 (Machine Torch)
The shield cap is a critical wear part in the plasma cutting torch that sits at the very front. It protects the nozzle and swirl ring from molten metal spatter and ensures the correct standoff distance between the torch and the material. The HALANSM Shield Cap 220817 is engineered to meet the rigorous demands of mechanized cutting applications.
Key Features of HALANSM 220817 Shield Cap:
Perfect Fit for Machine Torch: This 220817 shield is specifically designed for the Powermax 45XP, 65, and 85 when equipped with the Machine (Mechanized) Torch. It ensures seamless integration and consistent cutting performance.
Premium Copper Build: Constructed from high-purity copper, the HALANSM 220817 offers excellent thermal conductivity to withstand high temperatures while maintaining the precise geometry needed for a stable plasma arc.
Extended Service Life: Our advanced manufacturing processes result in a dense, spatter-resistant surface. This means fewer interruptions for shield changes and reduced operating costs over time.
Cost-Effective Alternative: Get the same cutting quality and reliability as the original equipment without the premium price tag.
Compatible Powermax Consumable Stack:
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
