As a core component of the HALANSM plasma cutting accessory series, the 228737 Positioning Sleeve is specifically designed for Hypertherm Powermax M65/M85/M105 mechanized systems. Manufactured with precision, it ensures accurate alignment and secure mounting of the torch head, significantly improving cutting accuracy and operational stability for automated CNC applications.
228737
HALANSM
HLN-228737

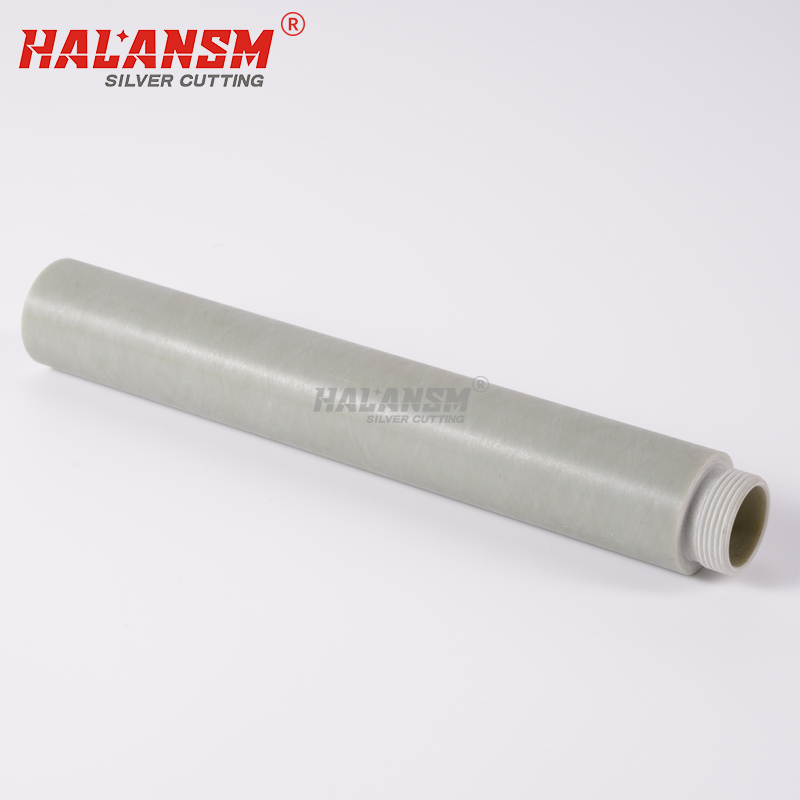

HALANSM Positioning Sleeve 228737 for Hypertherm Powermax M65 / M85 / M105 Machine Torch
The positioning sleeve is a critical structural component in robotic or CNC plasma cutting systems. It acts as the "spine" that maintains the precise linear alignment between the plasma torch and the machine's gantry or robotic arm, ensuring that the cutting head maintains a consistent standoff distance from the material at all times.
Key Advantages of HALANSM 228737:
Precision Alignment for CNC: Specifically engineered for the Hypertherm Powermax M65, M85, and M105 machine torches, this sleeve guarantees micron-level accuracy in torch positioning. This is essential for achieving precise cut edges and hole quality in automated production environments.
High-Temperature Dimensional Stability: Constructed from high-grade engineering composite materials, the HALANSM 228737 retains its shape and structural integrity even under the intense heat radiation and thermal cycling of continuous high-amperage (65A-105A) operation.
Secure Coupling: Works in tandem with the mounting sleeve (228735) and adapter ring (228736) to create a rock-solid assembly that prevents unwanted vibration, drifting, or torch deflection during high-speed cutting cycles.
Drop-In OEM Equivalent: Designed to match the exact envelope and thread specifications of the OEM 228737 part. It offers a seamless, hassle-free replacement to minimize machine downtime.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
