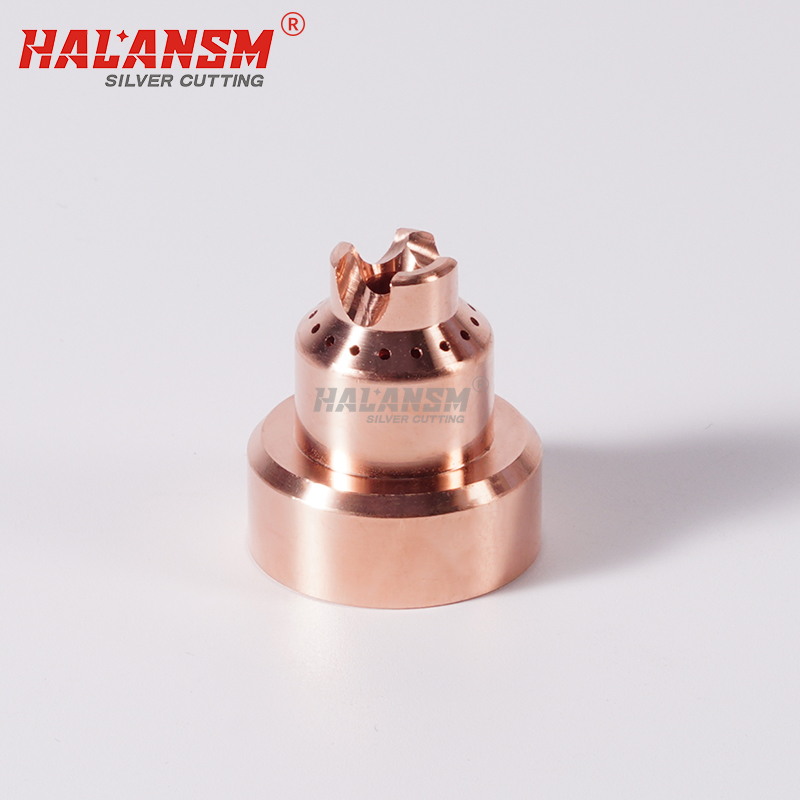

The HALANSM 220818 is a high-performance shield cap designed for the Hypertherm Powermax 45, 65, 85, and 105 hand-held plasma cutting torches. Crafted from premium copper, this essential consumable provides superior protection for the nozzle and swirl ring, ensuring consistent cut quality and extended service life even under demanding industrial conditions.
220818
HALANSM
HLN-220818
Shield Cap 220818 for Hypertherm Powermax 45 65 85 105 Plasma Cutting Torch Consumables
The shield cap is a critical component located at the forefront of the plasma cutting torch. It plays a vital role in directing the plasma flow and protecting the internal nozzle from molten metal spatter. The HALANSM Shield Cap 220818 is specifically engineered for drag cutting applications on the Hypertherm Powermax 45, 65, 85, and 105 systems.
Key Benefits of HALANSM 220818:
Optimized for Drag Cutting: Designed to sit flush against the material surface, allowing operators to "drag" the torch along the cut line for straight-line cutting or marking applications.
Superior Thermal Conductivity: Manufactured from high-purity copper, this shield cap efficiently dissipates heat, preventing warping and ensuring dimensional stability even during prolonged use.
Extended Wear Life: Precision-machined to exacting tolerances, the HALANSM 220818 provides a perfect seal and consistent arc characteristics, reducing premature wear and tear on other torch components.
Seamless Compatibility: Fully interchangeable with Hypertherm part number 220818. Requires no modifications for installation on Powermax 45/65/85/105 hand torches.
Compatible Powermax Consumable Stack:
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
