Often overlooked but absolutely critical, the HALANSM 220857 Swirl Ring is the hidden hero of your plasma cutting system. Positioned between the electrode and the nozzle, it forces the shielding gas into a high-speed vortex. This technology ensures a perfectly centered plasma arc for unparalleled cut quality and extended consumable life.
220857
HALANSM
HLN-220857

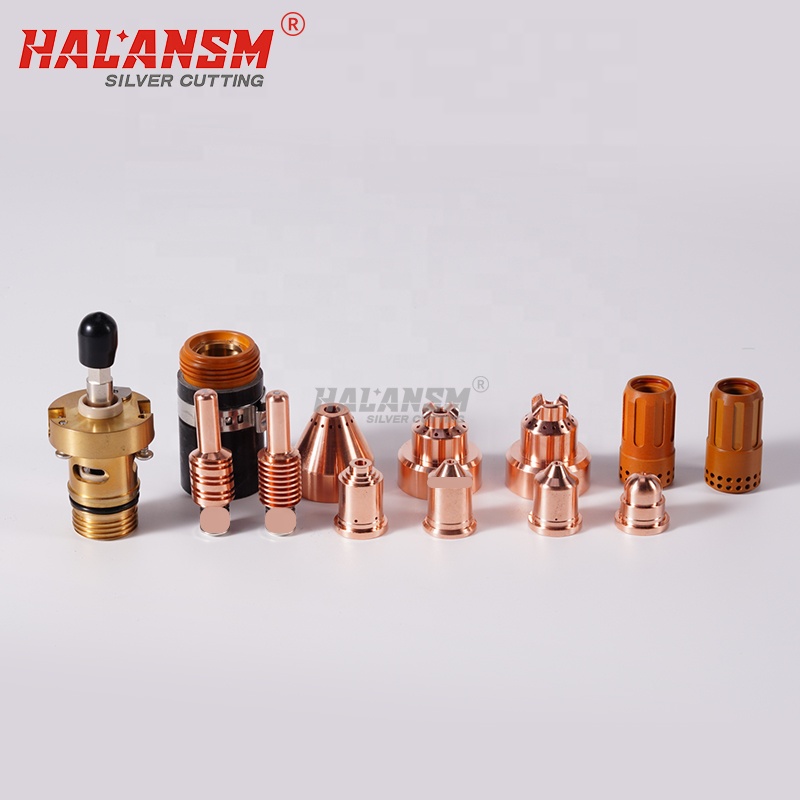

HALANSM 220857 Swirl Ring – Precision Gas Flow for Superior Cuts
The swirl ring is a small but vital component in the Hypertherm Powermax torch assembly. Its primary function is to impart a centrifugal force on the incoming plasma gas, creating a stable, rotating vortex. The HALANSM 220857 is engineered to deliver this performance consistently, ensuring that your plasma arc remains perfectly centered on the electrode for maximum efficiency.
Key Features of HALANSM 220857:
Arc Stabilization: The precisely angled vanes inside the swirl ring create a tornado-like effect that focuses the plasma stream. This results in faster piercing times and cleaner, squarer edges on your cut parts .
Extended Consumable Life: By keeping the arc centered, the swirl ring prevents uneven erosion of the copper nozzle and silver-plus electrode, significantly increasing the lifespan of your most critical torch components .
Advanced Material Composition: Constructed from high-temperature resistant composite materials combined with durable metal inserts, the HALANSM 220857 withstands the extreme thermal cycling of plasma cutting without warping or cracking.
Perfect Drop-In Replacement: Manufactured to exact OEM specifications, this swirl ring installs seamlessly into the torch head. It is dimensionally identical to the Hypertherm 220857, ensuring a leak-proof seal and perfect alignment every time.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
