As a critical component of the HALANSM plasma torch hardware series, the 228735 Mounting Sleeve serves as the primary structural base that mechanically attaches the entire plasma torch assembly to the robotic arm or gantry. Engineered for maximum structural integrity, this component is essential for maintaining precise torch alignment and withstanding the intense mechanical stresses encountered in high-speed CNC cutting operations.
228735
HALANSM
HLN-228735

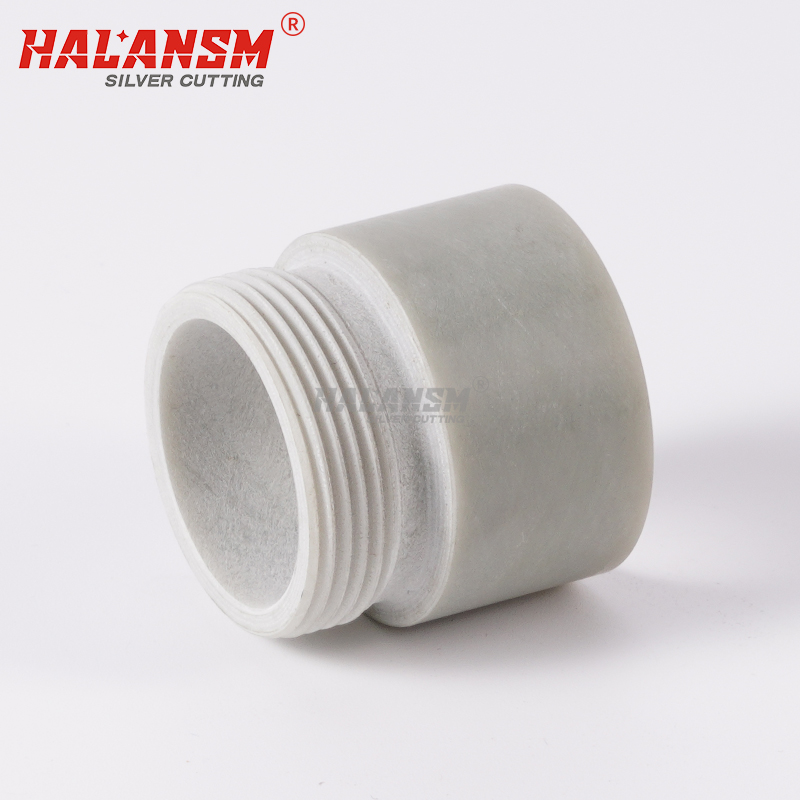

HALANSM Mounting Sleeve 228735 for Hypertherm Powermax M65 / M85 / M105 Machine Torch
In automated plasma cutting systems, the connection between the torch and the machine interface must be exceptionally strong and precisely aligned. The HALANSM 228735 Mounting Sleeve serves as the foundational base that mechanically secures the entire plasma torch assembly to the robotic arm or gantry, ensuring stable and vibration-free operation.
Key Features of HALANSM 228735:
Primary Structural Foundation: This heavy-duty sleeve is the "gatekeeper" of the torch assembly. It provides the primary thread engagement point that locks the torch firmly into the machine interface, preventing any shifting during high-speed travel cuts .
Designed for Mechanized Stress: Unlike handheld torches, machine torches endure significant G-forces and impacts during automated processing. The HALANSM 228735 is manufactured from high-grade, reinforced composite materials specifically chosen for their superior impact resistance and tensile strength.
Precision Thread Engagement: Features precisely machined external and internal threads that match the OEM specifications perfectly. It allows for easy hand-tightening while ensuring a secure, sealed connection every time.
Seamless Hardware Integration: The 228735 is designed to work flawlessly within the Powermax mounting system, creating a rigid backbone when paired with the Adapter Ring (228736) and Positioning Sleeve (228737) .
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
