The HALANSM 220994 is the 105A-class swirl ring for the Hypertherm Powermax 105 / Duramax platform. Positioned between electrode and nozzle, it spins the plasma gas into a laminar vortex that locks the arc onto the electrode center—critical for cut quality at full 105A output. Unlike the 220857 (10–85A, copper-bodied, used on PM45/65/85), the 220994 is the PM105-primary swirl: Hypertherm officially specifies it across all PM105 consumable stacks (drag 105 / mechanized / FineCut / gouging). Reinforced polymer + copper-insert construction takes the thermal load of sustained 105A runs better than the 85A-ring.
220994
HALANSM
HLN-220994

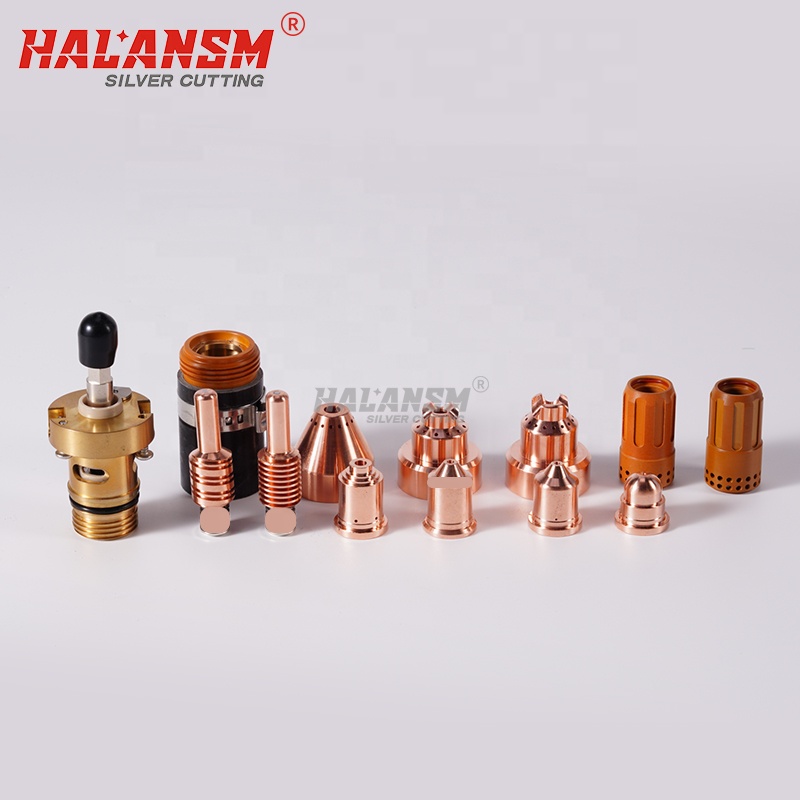

Swirl Ring 220994 For Hypertherm Powermax 105 Plasma Cutting Torch Consumables
The swirl ring is the hidden workhorse between electrode and nozzle. Its internal vanes spin the shielding gas into a vortex, centering the plasma arc on the electrode and focusing the jet through the nozzle orifice. On a PM105 running at full 105A, gas velocity and thermal load are too high for the smaller-ring; that's why Hypertherm defines 220994 as the PM105 swirl across every stack.
Key Points (buyer-facing)
220994 vs 220857 — don't mix them up:
220857 = copper body, 10–85A, PM45/65/85 primary (also fits PM105 45/65/85 stacks, but not the 105A nozzle)
220994 = polymer + copper insert, 85–105A, PM105 primary, covers drag-105 / mechanized / FineCut / gouging on PM105
If the buyer is on PM105 and ordering 220990 (105A nozzle), they need 220994, not 220857.
Vortex Stability at 105A: Internal vane count/angle tuned for the higher gas volume of 105A output — prevents arc wander, improves pierce repeatability on thick plate.
Thermal Load Design: Polymer body + copper insert takes sustained 105A heat better than an all-copper 85A ring would; reduces swelling/deformation that kills nozzle life.
Drop-In: Seats between 220842 electrode and 220990 nozzle exactly to OEM envelope — no filing, no shimming.
Compatible Powermax Consumable Stack:
For optimal cutting performance, it is recommended to replace the electrode alongside other wear parts.
Type
Amp
Shield/Deflector
Retaining Cap
Nozzle
Electrode
Swirl Ring
Hand
45
220818
220854
220941
220842 or 220777
220857
65
220819
85
220816
105
220992
220990
220994
Machine
45
220817 or 220955
220854 or 220953
220941
220842 or 220777
220857
65
220819
85
220816
105
220993 or 220955
220990
220994
Finecut
45
220931
220948
220854 or 220953
220930
220842
220947
Gouging
45-105
220798
220854
220797 220991
220842
220994
| No | Ref No | Description |
| 1 | 220992 | Shield for Plasma cutting torch consumables Handheld 105A |
| 220993 | Shield for Plasma cutting torch consumables Mechanized105A | |
| 220818 | Shield for Plasma cutting torch consumables Handheld 45A/65A/85A | |
| 220817 | Shield for Plasma cutting torch consumables Mechanized 45A/65A/85A | |
| 220955 | Shield for Plasma cutting torch consumables Mechanized 45A/65A | |
| 220948 | Shield for Plasma cutting torch consumablesHandheld 45A/65A/85A | |
| 2 | 220854 | Retaining Cap for Plasma cutting torch consumables5A/65A/85A |
| 3 | 220941 | Nozzle for Plasma cutting torch consumablesHandheld 45A |
| 220819 | Nozzle for Plasma cutting torch consumablesHandheld 65A | |
| 220930 | Nozzle for Plasma cutting torch consumables | |
| 220816 | Nozzle for Plasma cutting torch consumables 85A | |
| 220990 | Shield for Plasma cutting torch consumables 105A | |
| 4 | 220842 | Electrode for Plasma cutting torch consunables 45A/65A/85A/105A |
Need help identifying other Hypertherm XPR consumables? Feel free to contact our support team for assistance.
