In the competitive world of metal fabrication, efficiency is king. For thinner gauge materials and intricate jobs, the Hypertherm HPR130XD demands a specific class of consumables to deliver clean, fast, and economical cuts. HALANSM® answers this call with its premium 30A and 50A series, engineered to provide factory-level performance at a fraction of the cost.
Application Scenarios: Where 30A & 50A Excel
The 30A and 50A amperage range is the "sweet spot" for fabricators working with:
Thin to Medium Sheet Metal: Ideal for processing mild steel and aluminum sheets where warping must be minimized.
High-Volume Production: In automated or hand-held applications, these lower-amp consumables offer extended life cycles and consistent cut quality, reducing downtime for maintenance.
Intricate Detail Work: Perfect for fabrication shops requiring precision over brute force, ensuring clean edges without excessive dross.
Compatible Equipment Matrix
The HALANSM® 30A/50A series is meticulously designed as a direct replacement for Hypertherm HPR130XD systems. Below is a breakdown of the compatible equipment categories and their primary use cases:
Amperage Class | Primary Application | Material Thickness | Recommended Torch System |
|---|---|---|---|
30A Standard | Fast Piercing & Cutting | 0.5mm - 12mm (20 Gauge - 1/2") | Hypertherm HPR130XD |
50A Standard | Medium Thickness Cutting | 6mm - 25mm (1/4" - 1") | Hypertherm HPR130XD |
30A Fine Cut | Precision Metal Art & HVAC | Up to 6mm (1/4") | Hypertherm HPR130XD |
50A Bevel | Weld Preparation (Optional) | Structural Steel | Hypertherm HPR130XD |

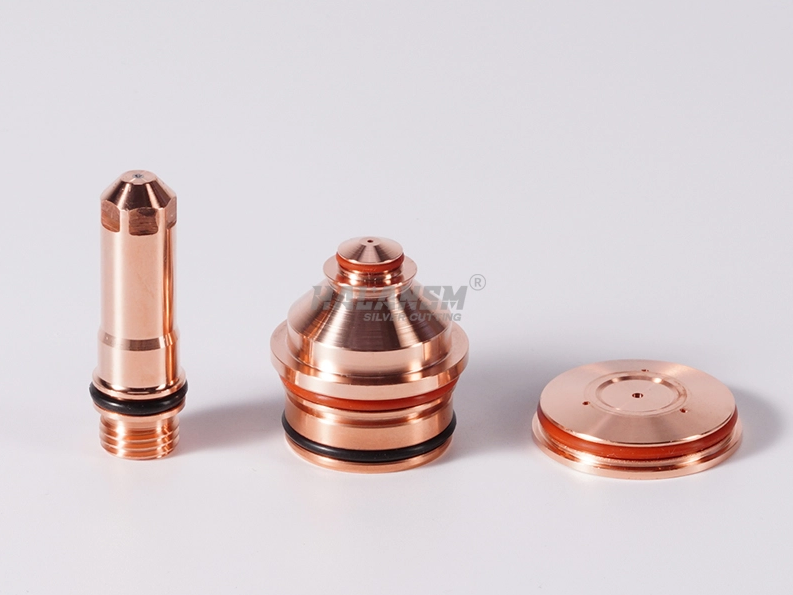

Complete Consumable Stack Specifications
Maintaining peak performance requires a synchronized consumable stack. HALANSM® provides all the critical components to keep your torch running cool and efficient.
Component | HALANSM® Model | OEM Cross Reference (30A / 50A) | Primary Function |
|---|---|---|---|
Electrode | Compatible Part | 220192 / 220552 | Generates the primary plasma arc; features high-purity hafnium insert for stable ignition. |

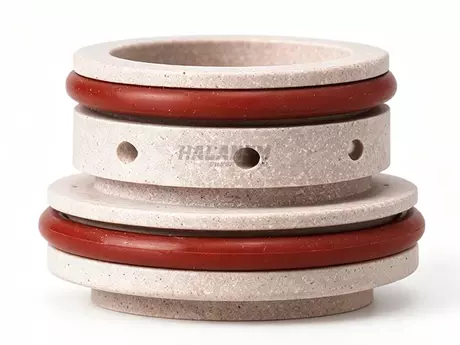

Swirl Ring | Compatible Part | 220180 / 220553 | Creates a vortex gas flow to cool the nozzle and center the arc for precise cutting. |
Nozzle | Compatible Part | 220193 / 220554 | Focuses the plasma stream into a concentrated cutting jet for superior edge quality. |
Retaining Cap | Compatible Part | 220313 (Shared) | Applies mechanical compression to secure the nozzle and swirl ring in perfect alignment. |
Inner Shield | Compatible Part | 220193 / 220554 | Shields the nozzle from spatter and assists in arc focusing. |

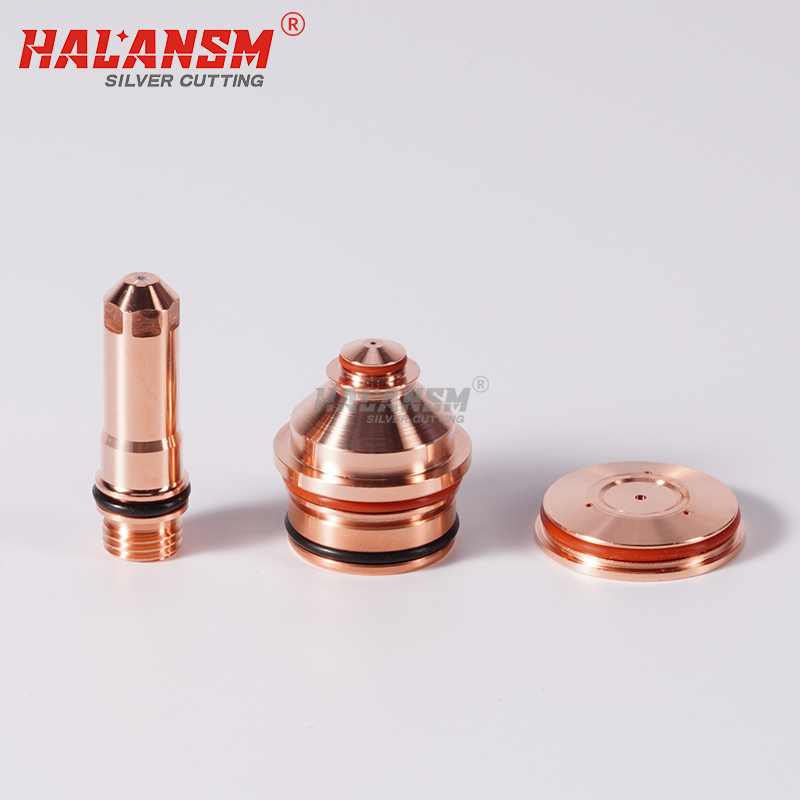

Outer Shield Cap | Compatible Part | 220194 / 220555 | Provides final gas wash and protects internal components from external damage. |
Water Tube | Compatible Part | 220398 (Shared) | Delivers high-pressure internal water cooling to prevent torch meltdown during sustained operations. |
Frequently Asked Questions (FAQ)
Q: Are HALANSM® 30A/50A parts as durable as the genuine OEM parts?
A: Yes. HALANSM® employs the same stringent manufacturing tolerances and utilizes premium materials, including our proprietary Silver Cutting™ surface treatment. This results in enhanced thermal conductivity and erosion resistance, offering durability that meets or exceeds industry standards.
Q: Can I mix HALANSM® 30A parts with 50A parts in the same torch?
A: We strongly advise against mixing amperage classes. The internal gas flow dynamics and cooling requirements differ significantly between 30A and 50A. Using mismatched parts can lead to premature failure, erratic arc behavior, and potential damage to your HPR130XD power supply.
Q: What is the benefit of the Silver Cutting™ finish seen on these parts?
A: The Silver Cutting™ process is a specialized cryogenic and polishing treatment. It removes microscopic imperfections from the copper surface, creating a mirror-like finish. This minimizes arc start times and maximizes the life of the electrode by reducing heat buildup at the critical hafnium insert interface.
