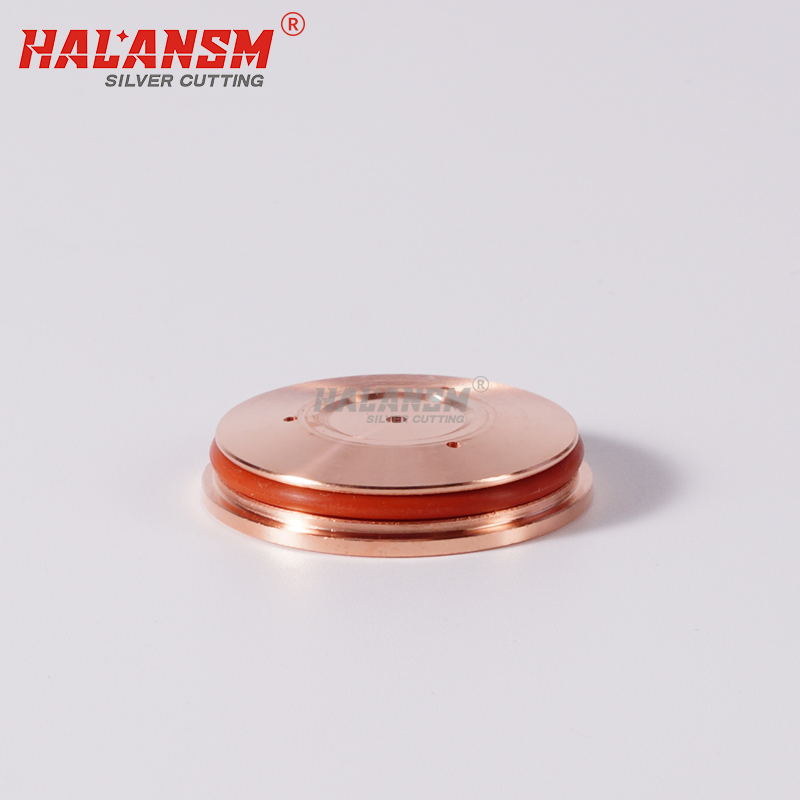

HALANSM 220555 shield compatible replacement for Hypertherm HPR130XD HPR260XD HPR400XD 50A mild steel plasma cutting torch, pairs with 220747 shield cap HALANSM 220555 shield compatible replacement for Hypertherm HPR130XD HPR260XD HPR400XD 50A mild steel plasma cutting torch, pairs with 220747 shield cap

loading

220555 Shield Compatible for Hypertherm HPR 130XD 260XD 400XD 50A Mild Steel Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 220555​ is the 50A mild steel shield​ for the Hypertherm HPRXD plasma torch family — HPR130XD, HPR260XD, HPR400XD. Copper-alloy body, precision-machined internal bore to maintain correct standoff distance and laminar gas flow around the 220554 nozzle. In the HPR 50A stack it pairs with 220552 electrode + 220553 swirl ring + 220554 nozzle + 220754 retaining cap + 220555 shield + 220747 shield cap + 220340 water tube. HALANSM 220555 is OEM-profile matched to Hypertherm 220555 geometry, lower cost-per-piece than OEM. Compatible aftermarket replacement, not Hypertherm OEM.

  • 220555

  • HALANSM®

  • HLN-220555

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number
220555
Product Type
Shield (Mild Steel 50A)
Compatible Torch​
Hypertherm HPR130XD / HPR260XD / HPR400XD
Amperage
50A
Material
Copper Alloy
Application
Mild Steel Plasma Cutting
OEM Reference​
Hypertherm 220555



Shield 220555 / 50A Mild Steel Shield for HPRXD Series – HALANSM®

220555 is Hypertherm's 50A mild steel shield for the HPRXD plasma torch family. Copper-alloy body with precision-machined bore, seated between the nozzle retaining cap (220754) and the shield cap (220747). Its job: protect the inner consumable stack from molten spatter and maintain the laminar gas shroud around the 220554 nozzle for a stable, focused arc and clean cut edge.


220555 in the HPRXD 50A Mild Steel Stack

Pos

Part

Ref

Electrode

220552 (50A)

220552

Swirl Ring

220553 (50A)

220553

Nozzle

220554 (50A)

220554

Retaining Cap

220754 (30–50A)

220754

Shield

220555 (50A MS)

220555

Shield Cap

220747 (30–130A HPRXD)

220747

Water Tube

220340 (45–260A)

220340


Key Points (buyer-facing)

  • 50A MS shield, one part number for all HPRXD machines: 220555 fits HPR130XD, HPR260XD, HPR400XD identically.

  • NOT a shield cap: 220555 is the shield (mid-stack protective sleeve around the nozzle). The shield cap that screws on top is 220747 (30–130A HPRXD). Both are required for a complete 50A stack.

  • 50A-only: 220555 is rated 50A mild steel. Running it at 80A/130A will cause premature shield blow-out. Correct shields by amp: 30A = 220194, 80A = 220189, 130A = 220183, 200A = 220761, 260A = 220764, 400A = 220636.

  • Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life.

NOTE: 220555 = 50A MS shield. Shield cap pairing on HPRXD: 30–130A → 220747. The 50A stack is identical across all HPRXD machines except for amp-specific parts. HALANSM 220555 is an aftermarket compatible replacement, not Hypertherm OEM.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


HALANSM-HyPerformance-HPR800-400-260-130XD-Consumables-Catalog-Mild-Steel

Download the complete product brochure：
