The Oxygen Nozzle in the HyPro2000 Family: Hypertherm's official HyPro2000 for HT2000 consumables chart places 220893 in the oxygen nozzle position — the O₂ chemical reaction with mild steel accelerates the cut and produces a smooth, low-dross edge . The same 220893 serves HyPro2000 retrofit for MAX200 and native MAXPRO200 on oxygen processes .
Oxygen-Specific Gas Dynamics: 220893 is engineered for oxygen plasma cutting of mild steel — its internal geometry is tuned to O₂ flow characteristics. For air cutting (mild steel / stainless / aluminum), the correct nozzle is 220892 at 130A or 420044 at 200A . Fitting a 220893 on an air stack, or a 220892 on an O₂ stack, degrades cut quality and shortens consumable life.
Arc Constriction = Cut Speed: The nozzle's primary job is to shape, direct, and constrict the plasma arc . The HALANSM 220893 reproduces Hypertherm's micron-level orifice geometry so the oxygen arc stays tightly focused — delivering fast pierce and cut speeds with minimal dross adhesion.
220893
HALANSM®
HLN-220893

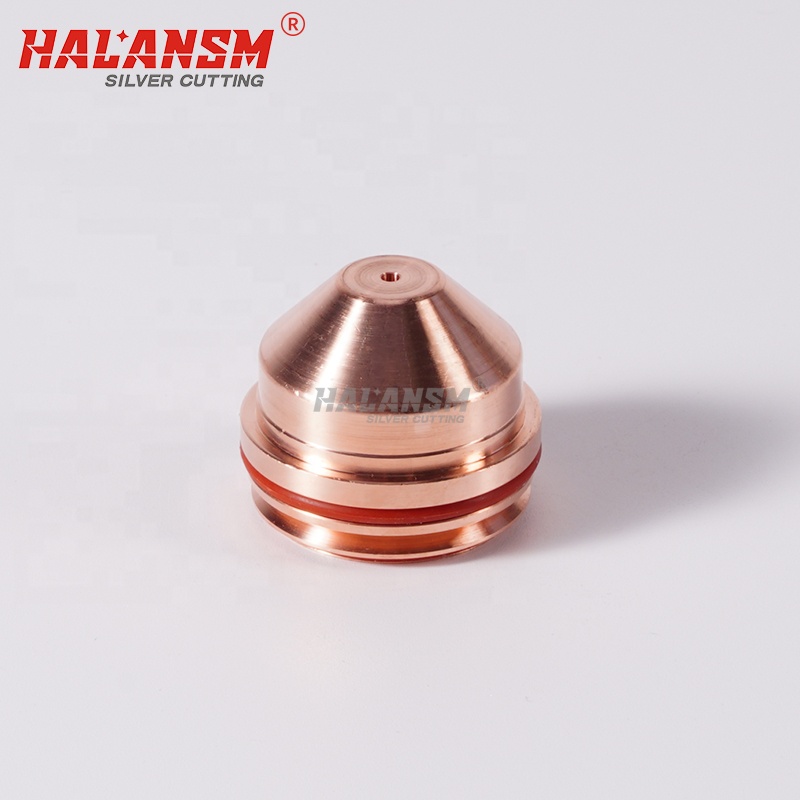

HALANSM® 220893 Nozzle — Oxygen for HyPro2000 Upgrade Torch for HT2000 / MAX200 / MAXPRO200
The HALANSM® 220893 is the designated oxygen nozzle for Hypertherm's HyPro2000 upgrade torch for HT2000, the HyPro2000 retrofit on MAX200, and the native MAXPRO200 . As the component that shapes, directs, and constricts the plasma arc , the nozzle directly governs cut speed, edge squareness, and dross levels in oxygen plasma cutting. Constructed from high-purity copper-chromium alloy with an integrated red high-temperature seal ring , the 220893 is optimized for one thing: fast, clean oxygen-plasma cutting of mild steel.
Why 220893 is the right nozzle for oxygen work
Across the HyPro2000/MAXPRO200 family, Hypertherm's official consumables matrices place the 220893 in the oxygen nozzle position:
HyPro2000 upgrade torch for HT2000 — the official HT2000 table's 130A row lists Air only with 220892 ; the O₂ nozzle 220893 appears in 200A O₂ stacks for this host .
HyPro2000 retrofit torch for MAX200 — 130A O₂ and 200A O₂ stacks both specify 220893-class oxygen nozzles paired with 220488/220834 swirl rings and 220487/220937 electrodes .
Native MAXPRO200 machine torch — oxygen processes at the 130A and 200A class list 220893-family nozzles for mild steel .
HALANSM's own product copy states it is "designed for the 130A current range... specifically engineered to focus the plasma arc into a tight, stable column" with "integral red seal ring ensures a leak-proof fit, preventing shielding gas leaks" . One nozzle, three host torches, one gas process — oxygen.
Key Features
Oxygen-Specific Gas Dynamics: The 220893's internal geometry is tuned to the specific flow characteristics of oxygen plasma. O₂ cutting on mild steel produces a chemical exothermic reaction with the base material that accelerates the cut and yields a smooth edge with minimal dross . A nozzle designed for air (like the 220892 or 420044) would not channel O₂ flow optimally — which is why Hypertherm specifies 220893 for O₂ and 220892/420044 for air.
Precision Orifice for High-Current Constriction: The micron-level precision of the central orifice guarantees a highly focused plasma arc . At both 130A and 200A O₂ loads, this focus translates into faster pierce and cut speeds on mild steel while minimizing dross adhesion on the underside of the cut.
Advanced Material Stability: The high-purity copper-chromium alloy body offers exceptional thermal conductivity to dissipate the extreme heat of an O₂ plasma arc . This extends operational lifespan even under continuous heavy-duty industrial use — critical in shipbuilding, structural steel, and heavy machinery fabrication.
Leak-Proof Integrated Seal: The built-in high-temperature red seal ring creates a perfect gas-tight barrier between the nozzle and the swirl ring . This maintains consistent gas flow and arc stability for superior cut finishes, preventing the gas bypass that causes arc wander and premature electrode wear.
Oxygen Consumable Stack (130A O₂ — Mild Steel)
Position | Part | 130A O₂ |
|---|---|---|
Nozzle | 220893 | 220893 |
Shield | 220491 (O₂) | 220491 |
Swirl Ring | 220488 | 220488 |
Electrode | 220487 (130A) | 220487 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
Oxygen Consumable Stack (200A O₂ — Mild Steel, HyPro2000 for HT2000)
Position | Part | 200A O₂ |
|---|---|---|
Nozzle | 220893 (O₂ stack) | 220893 |
Shield | 220832 (200A O₂) | 220832 |
Swirl Ring | 220834 (200A O₂) | 220834 |
Electrode | 220937 (200A) | 220937 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
NOTE: 220893 = oxygen nozzle for the HyPro2000/MAXPRO200 family. Compatible hosts: HyPro2000 upgrade torch for HT2000, HyPro2000 retrofit for MAX200, and MAXPRO200 machine torch — all on Oxygen for mild steel cutting . This nozzle is oxygen-specific; for 130A Air (mild steel / stainless / aluminum) on HyPro2000 for HT2000, use nozzle 220892 instead . For 200A Air use 420044; for 200A O₂ the specified nozzles are 220831 (standard) or 220893 (in certain stacks) — confirm your exact stack. The 220893 pairs with electrode 220487/220937, swirl ring 220488/220834, and the appropriate O₂ shield. Always inspect the nozzle orifice for roundness and wear when cut quality degrades — a worn nozzle causes arc wander, double-arcing, and accelerated electrode erosion . HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.
Real Shot: Images above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
