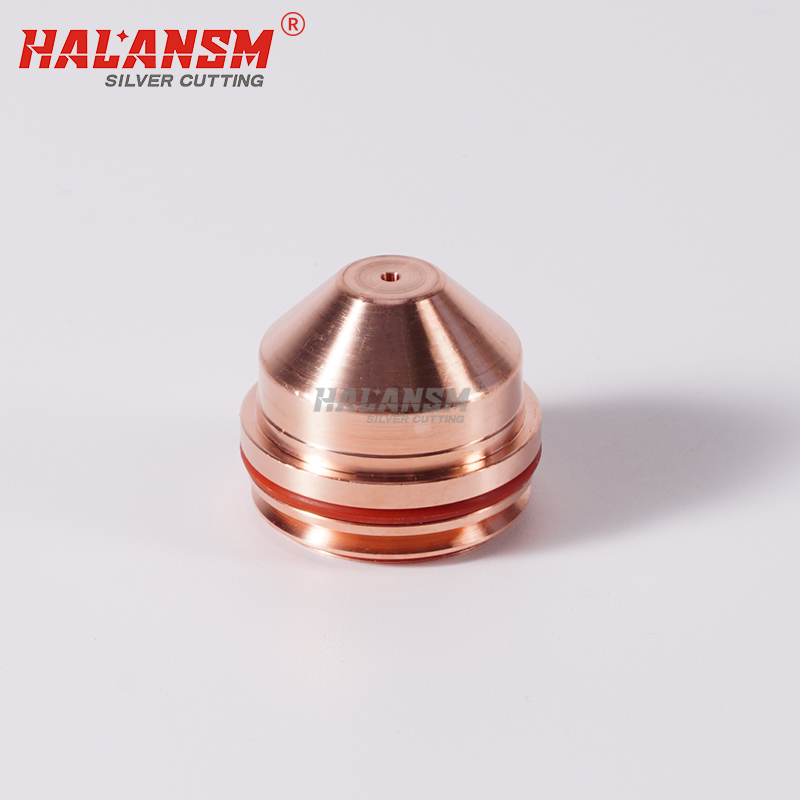

220891 Nozzle for Hypertherm HyPro2000 MAX200 50A Plasma Cutting Torch Consumable

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220891​ is the second 50A fine-cut nozzle option for Hypertherm HyPro2000 torches on MAX200 hosts (also native on MAXPRO200 50A). Same 50A fine-cut class as 220890, alternative bore / gas-path variant within the HyPro 50A family — buyers running specific cut profiles or gas tweaks may spec 220891 over 220890. Pairs with 220528 elec + 220529 swirl + 220532 shield + 220936 cap. 220891 ≠ MAX200 standard nozzles (020689/020611/020608) — HyPro torch barrel only, different swirl seat + cap thread.

  • 220891

  • HALANSM®

  • HLN-220891

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Model
220891
Type
Nozzle / 50A Fine-Cut Tip (variant)
Amperage
50A
Material
High-Purity Copper (silver-grade thermal treat)
Compatible Torch​
Hypertherm HyPro2000 (on MAX200 host) / MAXPRO200 50A
Application
Fine-Cut / Conical Flow & Thin Sheet (MS/SS)
Process Gas​
Air (primary for 50A fine-cut)
Cross-Reference
Hypertherm 220891
Paired Stack​
220528 elec + 220529 swirl + 220891 noz​ + 220532 shield + 220936 cap



Nozzle 220891 / 50A Fine-Cut Nozzle (220890 Variant) for HyPro2000 (MAX200) & MAXPRO200 – HALANSM

220891 sits alongside 220890 in Hypertherm's 50A fine-cut lineup for HyPro2000 torch — listed under both "HyPro2000 for MAX200 50A" and "MAXPRO200 50A". Same amp class, same stack mates, alternative bore / gas-path vs 220890; which one to run depends on cut profile, kerf target, or shop gas tweak. Both are air-primary for thin MS/SS sheet (HVAC, precision parts, fine-feature work).


220891 in HyPro2000 / MAXPRO200 50A stack

Pos

Part

Ref

Electrode

220528 (50A fine-cut elec)

220528

Swirl

220529

220529

Nozzle

220891 (50A fine-cut, alt to 220890)

220891

Shield

220532

220532

Retaining Cap

220936 (HyPro/MAP cap)

220936


Key Points (buyer-facing)

  • 220891 vs 220890, not either/or random: Both are 50A HyPro fine-cut nozzles, same stack, different bore/gas-path. If buyer's running stock air thin-sheet, either may work; if they're dialing kerf or edge profile, the two are distinct specs. Don't treat 220891 as "220890 replacement" — they're parallel SKUs.

  • Two hosts share this number: 220891 lists under both HyPro2000-on-MAX200 and native MAXPRO200 50A — same nozzle, HyPro-style 220936 cap interface. Plain "MAX200" (no HyPro upgrade) = wrong line, uses 020689 (40A) or 020611/020608 (100A/200A standard), different swirl seat + cap thread.

  • Full 50A HyPro stack: 220528 + 220529 + 220891 + 220532 + 220936. Mixing with MAX200 standard 020x/120x parts (e.g. forcing 220891 onto 120837 cap barrel) = arc off-center + rapid burn — HyPro uses 220936 copper cap, standard MAX200 machine uses 120837, handheld 40A uses 020423 graphite.

  • Gas fit: 50A fine-cut = air-primary on HyPro. N₂/H35/Arg-H₂ live at 130A+ on HyPro2000 / MAXPRO200, not 50A nozzle class.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
