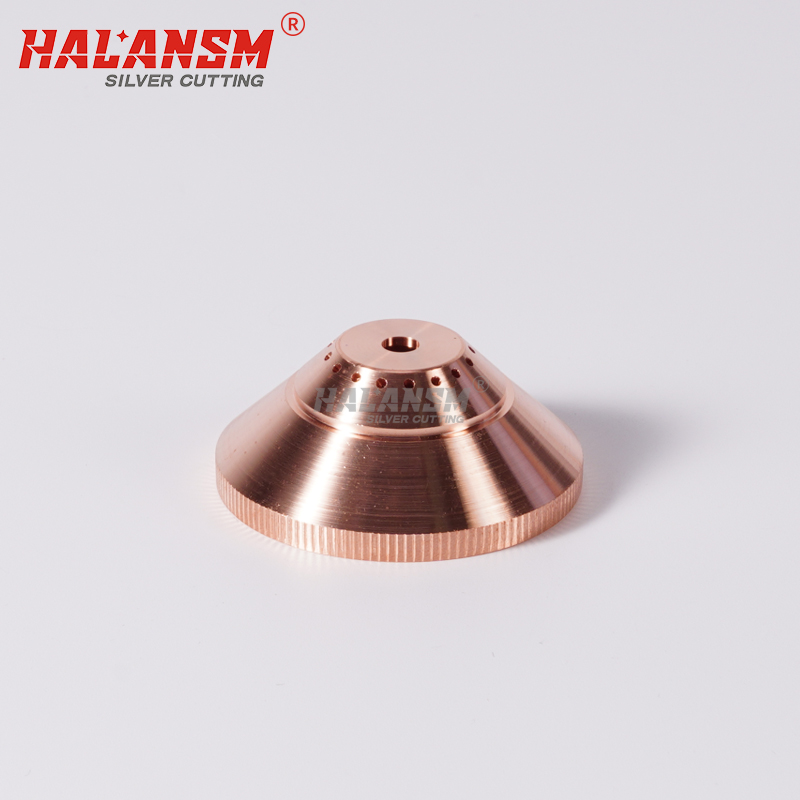

HALANSM Replacement Shield 020688 compatible with Hypertherm MAX200 40A Plasma Cutting Torch HALANSM Replacement Shield 020688 compatible with Hypertherm MAX200 40A Plasma Cutting Torch

loading

020688 Replacement Shield for Hypertherm MAX 200 40A Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® Replacement Shield 020688​ is a high-quality, drop-in replacement designed for the Hypertherm MAX200 40A plasma torch. Crafted from durable copper, this component ensures efficient heat dissipation and proper torch functionality, maximizing cut quality and operational uptime for light fabrication tasks.

  • 020688

  • HALANSM®

  • HLN-020688

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Reference OEM Part No.​
020688
Product Type
Shield Cup (Cap Only)
Material
High-Conductivity Copper
Compatible System​
Hypertherm MAX200 Series
Compatible Amperage​
40A
Application​
Thin Sheet Metal Cutting (HVAC / Fabrication)



HALANSM® Replacement Shield 020688 for Hypertherm MAX200 40A

The HALANSM® 020688 Shield Cup is an essential component for maintaining the performance and longevity of your Hypertherm MAX200 40A plasma cutting system. Designed to provide optimal cooling and electrical insulation, this shield cup is critical for achieving precise cuts and preventing damage to internal torch components.


Key Features:

  • Precision Fit: Manufactured to exact OEM specifications to ensure seamless integration with the Hypertherm MAX200 40A torch.

  • Superior Heat Dissipation: Constructed from premium copper material to efficiently manage the extreme temperatures generated during plasma cutting operations.

  • Enhanced Durability: Engineered to withstand the harsh thermal cycling and mechanical stresses of industrial use.

  • Optimal Performance: Ensures proper alignment and protection of the nozzle and electrode, which is vital for maintaining a stable plasma arc and consistent cut quality.

  • Cost Savings: HALANSM® provides a reliable, high-performance alternative to expensive original equipment manufacturer (OEM) parts, reducing your operational costs without sacrificing quality.


Compatibility Information:

  • System: Hypertherm MAX200 Plasma Cutting System

  • Amperage: Specifically engineered for the 40A output level.

  • Part Number: Cross-referenced to OEM part number 020688.

  • Material: High-purity copper for maximum thermal conductivity.

Disclaimer: This product is a replacement aftermarket part manufactured by HALANSM®. It is not created or sold by Hypertherm. Hypertherm is a registered trademark of Hypertherm, Inc.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
