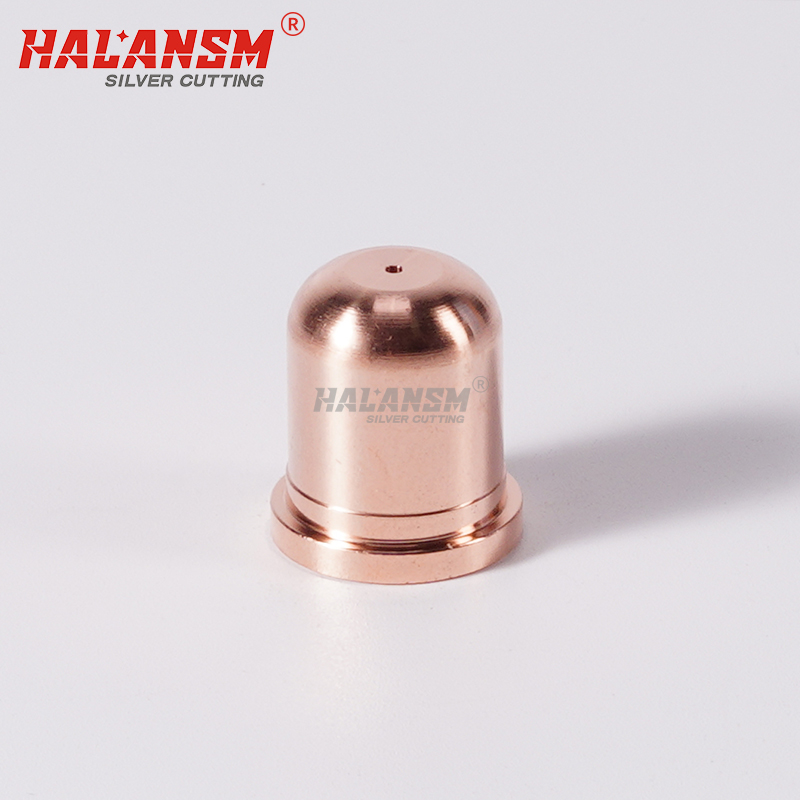

The HALANSM® 220006 is a 40-Ampere extended-length, non-shielded plasma cutting nozzle. Specifically engineered for mechanized (CNC) cutting systems, it provides an extended standoff distance for precise arc control and superior cut quality on automated cutting tables using Hypertherm Powermax 1000 and 1250 series torches.
220006
HALANSM®
HLN-220006
Extended Nozzle 220006 / 40A Non-Shielded Tip for Hypertherm Powermax 1250 & T60/T80 – HALANSM
The HALANSM® 220006 is an extended-length, non-shielded plasma cutting nozzle rated for 40 Amperes. Unlike standard handheld nozzles, this consumable is specifically designed for mechanized (CNC) cutting applications where maintaining a precise standoff distance between the torch and the material is critical for optimal cut quality and piercing performance.
220006 in Powermax 1250 / T60/T80 Mechanized Stack
Position | Part Number | Function |
|---|---|---|
Electrode | 220182 (Ag) / 220181 | Generates the plasma arc |
Swirl Ring | 220188 / 020608 | Directs gas flow |
Nozzle | 220006 | Extends arc reach for CNC cutting |
Retaining Cap | 120928 / 220190 (Std) | Secures consumables (No Shield) |
Key Compatibility Notes
Mechanized Specific: The 220006 is designed to be used without a separate shield cup. It seats directly against the retaining cap inside the torch head, extending the plasma arc further out for automated cutting tables.
40A Application: This nozzle is specifically calibrated for 40-Ampere output. Using it at higher amperages or with incorrect swirl rings may lead to premature wear or damage.
System Compatibility: Fully compatible with Hypertherm Powermax 1000, Powermax 1250, and the T60/T60M and T80/T80M torch series.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
