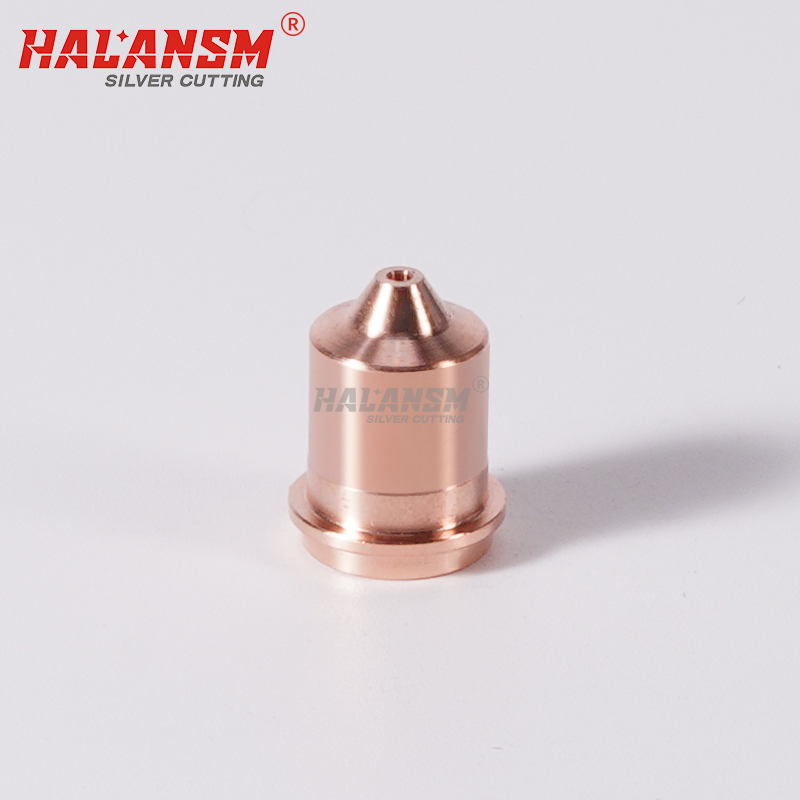

HALANSM Nozzle 220671 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A drag cutting copper tip HALANSM Nozzle 220671 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A drag cutting copper tip

loading

Nozzle 220671 for Hypertherm Powermax 45 & 45A Plasma Cutting Torch Consumables

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220671​ is the standard copper nozzle for Hypertherm Powermax 45 / 45A hand torch, 15-45A drag cutting tier. Bore is sized to mate with 220669 silver electrode via 220670 swirl vortex — clean arc focus for thin-to-mid sheet drag cuts. 2208xx family, thread/seat ≠ HSD130 45A (2205xx), forcing cross = gas leak / blown tip.

  • 220671

  • HALANSM®

  • HLN-220671

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220671
Product Type
Nozzle / Cutting Tip (Standard)
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Drag Cutting (Hand Torch)
Material
High-Purity Copper



Enhanced Cut Quality for Versatile Applications

The HALANSM® 220671 nozzle is the critical component responsible for directing the plasma arc to create a precise cut. Its smooth bore and precision-machined internal flow paths ensure maximum energy concentration, resulting in faster pierce times and superior edge quality on various metal thicknesses.


Key Features:

  • Optimal Flow Design: The internal geometry is designed to work seamlessly with the Silver-Core Electrode 220669, ensuring laminar gas flow that cools the electrode while focusing the arc.

  • Durable Copper Build: Constructed from premium oxygen-free copper for maximum thermal conductivity and heat resistance during prolonged cutting sessions.

  • Drop-In Replacement: Threads and physical dimensions are identical to the OEM 220671, allowing for easy, tool-free installation and removal.

  • Cost Savings: HALANSM® manufactures this nozzle to meet or exceed OEM standards, providing professional-grade results without the premium price tag.


Installation & Compatibility Guidelines

  • Correct Consumable Stack: For standard drag cutting, the correct assembly order (from the torch body out) is: Electrode (220669) -> Swirl Ring (220670) -> Nozzle (220671) -> Shield Cap (220674).

  • System Lock: The Powermax 45 / 45A consumable system (including the 220671 nozzle) is mechanically incompatible with the HSD130 45A system (2205xx series). Please verify your torch model before purchasing to avoid damage.

  • Amperage Range: This nozzle is specifically designed for the 15-45A range. Using it outside this range may result in premature failure or suboptimal cut quality.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart
