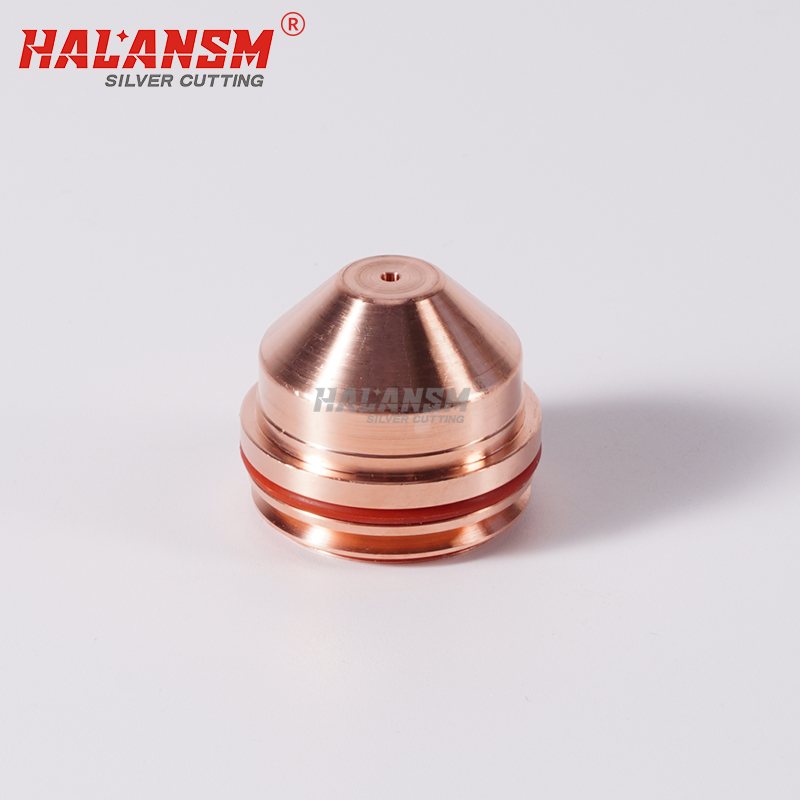

HALANSM 220530 Plasma Nozzle for Hypertherm HSD130 50A Oxygen Cutting, replacement for MAXPRO200 50A HALANSM 220530 Plasma Nozzle for Hypertherm HSD130 50A Oxygen Cutting, replacement for MAXPRO200 50A

loading

220530 Nozzle for Hypertherm HSD130 50A (O₂) Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220530​ is the 50A O₂ nozzle​ for Hypertherm HSD130 (and MAXPRO200 50A) — the O₂ counterpart to 220525 (45A Air). 220530 has a wider, O₂-optimised bore profile that handles higher heat load and faster pierce on mild steel. If you run HSD130 50A on oxygen, 220525 (Air) will overheat / blow out — you need 220530. Stacks with 220528 elec + 220529 swirl + 220532 shield (handheld) or 220936 retaining cap (machine).

  • 220530

  • HALANSM®

  • HLN-220530

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220530
Product Type
Nozzle / Cutting Tip
Compatible Torch​
Hypertherm HSD130 50A
MAXPRO200 50A
Amperage
50 A
Gas / Process​
O₂ (Oxygen) — do NOT use on Air stack
Material
High-Purity Copper
Paired Stack​
220528 elec + 220530 noz + 220529 swirl + 220532 shield (handheld) / 220936 cap (machine)
OEM Reference​
Hypertherm 220530



Nozzle 220530 / 50A O₂ for Hypertherm HSD130 & MAXPRO200 – HALANSM

The HSD130 50A O₂ tier is where Hypertherm's handheld/light-mechanized line starts punching above its weight on mild steel — faster pierce, cleaner edge, less dross than Air 45A. But it only works if the nozzle bore matches the gas. 220530 is that O₂ bore. 220525 (45A Air) will blow out on O₂ 50A; 220530 on Air is a lazy cut. HALANSM locks OEM bore geometry so the arc centers on the 220528 silver electrode.


Where 220530 sits in the HSD130 50A O₂ stack

Pos

Part

Ref

Electrode

220528 (silver core, 45/50A shared)

220528

Swirl

220529

220529

Nozzle

220530 (O₂, 50A)

220530

Shield

220532 (handheld) / 220936 (machine retaining cap)

220532 / 220936


Key Points (buyer-facing)

  • O₂-optimised bore: Wider profile vs 220525 to handle 50A heat load + O₂ reactivity on mild steel.

  • HSD130 / MAXPRO200 50A: Fits both — HSD130 handheld/light-CNC and MAXPRO200 50A share this nozzle.

  • 220530 ≠ 220525: Same torch body, different gas. Mixing = overheated tip or weak arc. HALANSM bags them separately.

  • OEM geometry: Bore concentricity follows Hypertherm 220530 envelope so arc stays on 220528 hafnium centre.


Don't run this on Air. If your shop runs both HSD130 45A Air (220525) and 50A O₂ (220530), tag both SKUs clearly — floor cross-rate on these two is high.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
