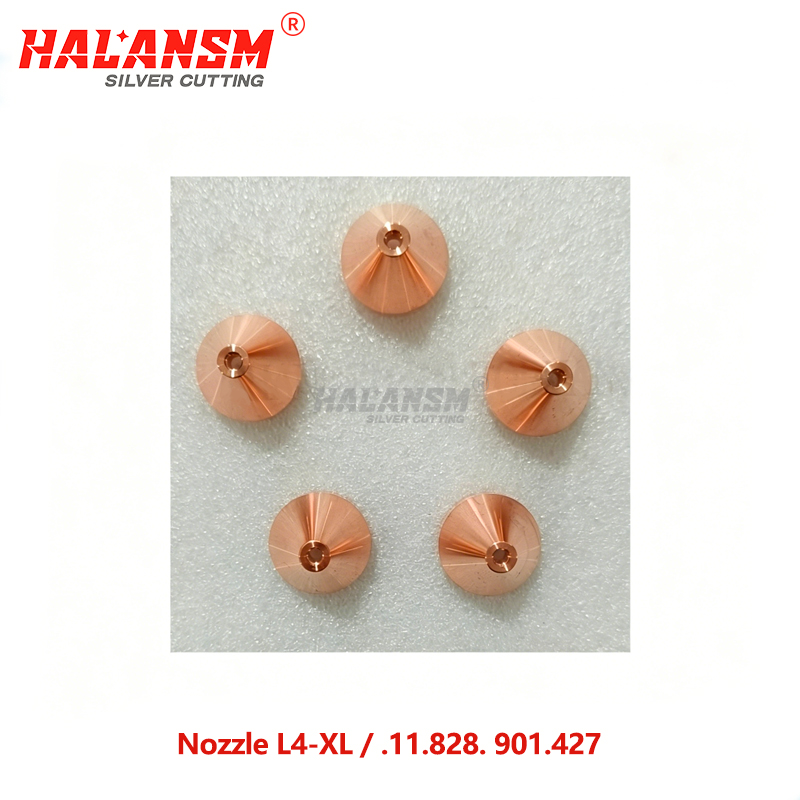

HALANSM Nozzle L4-XL / 11.828.901.427 for Kjellberg PB-S70 PB-S75 plasma torch, copper tip HALANSM Nozzle L4-XL / 11.828.901.427 for Kjellberg PB-S70 PB-S75 plasma torch, copper tip

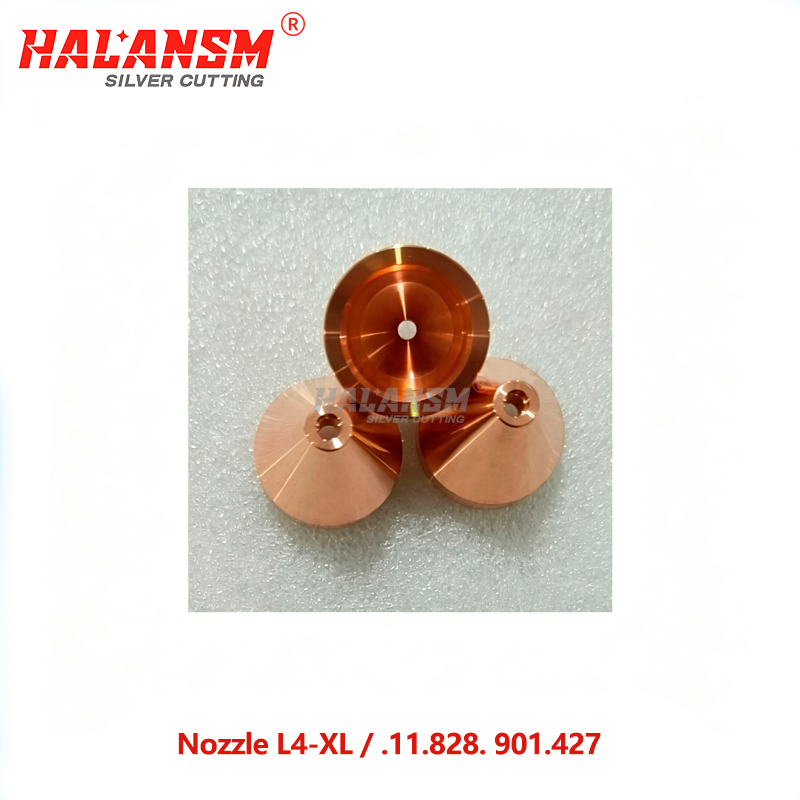

Orifice detail of HALANSM L4-XL nozzle 11.828.901.427 for Kjellberg PB-S handheld torch Orifice detail of HALANSM L4-XL nozzle 11.828.901.427 for Kjellberg PB-S handheld torch

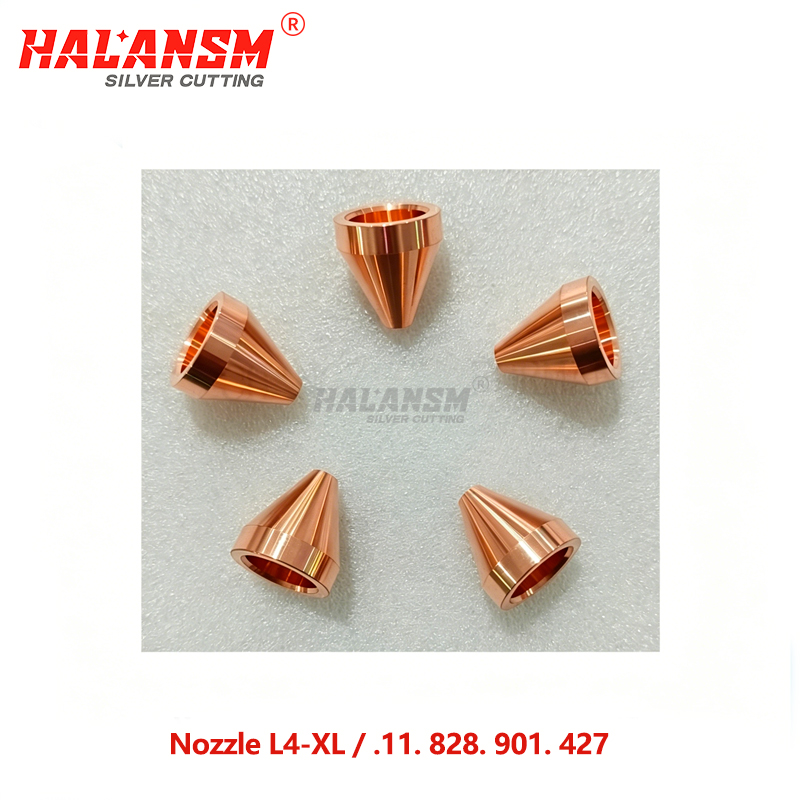

HALANSM L4-XL nozzle installed with KB-XL electrode 11.834.321.3001 on Kjellberg PB-S70 torch HALANSM L4-XL nozzle installed with KB-XL electrode 11.834.321.3001 on Kjellberg PB-S70 torch

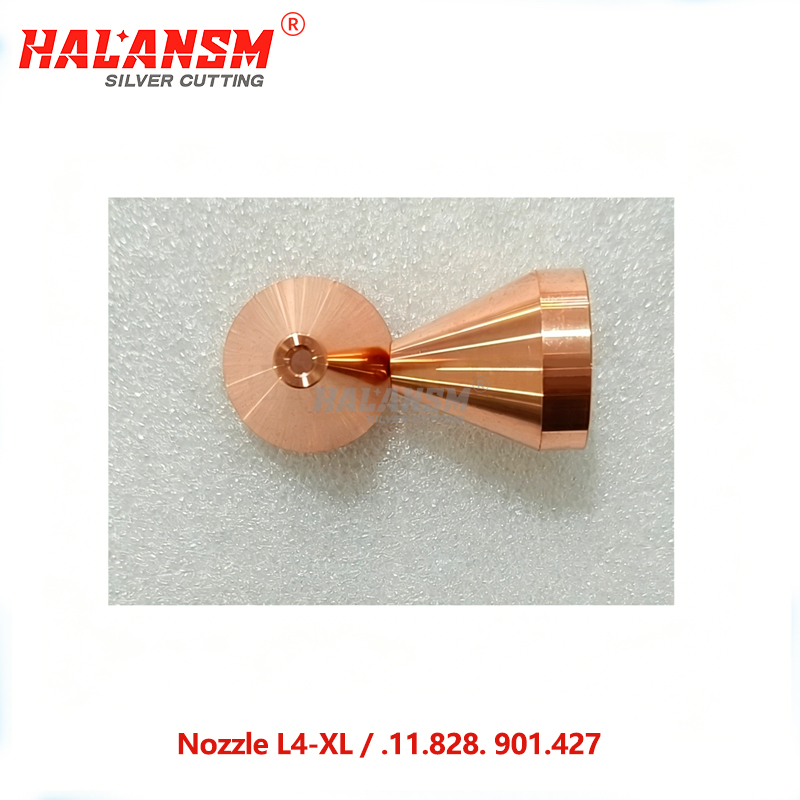

HALANSM L4-XL (PB-S70/75 handheld) vs Y4020 (HiFocus130i/160i machine) – different platforms, do NOT cross-use HALANSM L4-XL (PB-S70/75 handheld) vs Y4020 (HiFocus130i/160i machine) – different platforms, do NOT cross-use

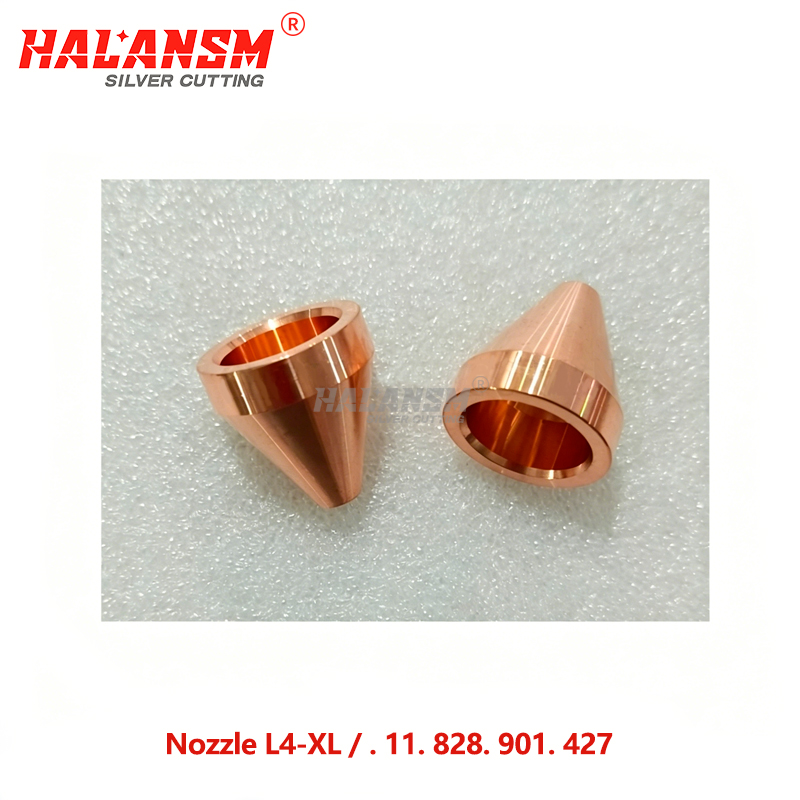

HALANSM L4-XL nozzles 11.828.901.427 packed 5pcs for Kjellberg PB-S consumables HALANSM L4-XL nozzles 11.828.901.427 packed 5pcs for Kjellberg PB-S consumables

loading

Nozzle L4-XL / .11.828.901.427 for Kjellberg PB-S70 / PB-S75 Plasma Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM L4-XL​ is the copper nozzle (tip) for Kjellberg's PB-S70 / PB-S75 handheld/manual plasma torch​ stack. It seats behind the PB-S shield/cap and in front of the KB-XL silver electrode. PB-S is Kjellberg's handheld​ tier (vs HiFocus = machine, FineFocus = precision) — so L4-XL lives in a different world from Y4020 (HiFocus130i/160i) even though both are "nozzle-class." Forcing L4-XL onto a HiFocus torch (or vice versa) = seat mismatch / arc wander.

  • L4-XL / .11.828.901.427

  • HALANSM

  • HLN-.11.828.901.427

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
L4-XL / .11.828.901.427
Product Type
Nozzle / Tip (Cutting)
Compatible Torch​
Kjellberg PB-S70 / PB-S75 (handheld/manual)
Material
High-Purity Copper
Paired Electrode
KB-XL / .11.834.321.3001
OEM Reference​
Kjellberg .11.828.901.427
Platform
Kjellberg PB-S (handheld) — NOT HiFocus / FineFocus​



Nozzle L4-XL / 11.828.901.427 for Kjellberg PB-S70 PB-S75 Plasma Torch

The PB-S family is Kjellberg's handheld/manual plasma tier (PB-S20 → PB-S75), and L4-XL is the 70/75A tip in that family. It's a different animal from the HiFocus machine-nozzle (Y4020) or FineFocus precision-nozzle (R2008) — three separate platforms, three separate nozzle geometries.


Key Points (buyer-facing)

  • PB-S70 / PB-S75 Only: L4-XL seats into the PB-S handheld torch head with KB-XL silver electrode behind it. Thread pitch and seat land are PB-S-specific.

  • L4-XL ≠ Y4020 ≠ R2008:

        L4-XL = PB-S70/75 (handheld)

        Y4020 = HiFocus 130i/160i (machine, 2.0mm bore)

        R2008 = FineFocus 450 (machine, 0.8mm low-amp)

All three are "nozzles" but torch bodies don't interchange. Mixing = seat leak / burnt cap.

  • OEM Geometry: Copper body, bore sized to PB-S70/75 output, concentricity locked to KB-XL electrode so the arc stays on the hafnium center.


PB-S70/75 Stack (reference)

Pos

Component

Ref #

Electrode

KB-XL

11.834.321.3001

Nozzle

L4-XL

11.828.901.427

Shield / Cap

PB-S dedicated cap

(PB-S family)

Cross-sell:If buyer runs mixed Kjellberg fleet (PB-S handheld + HiFocus machine + FineFocus precision), we can tag L4-XL / Y4020 / R2008 in one order with platform labels pre-printed so the floor doesn't cross them. Mention it in the order note.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
