220936 HALANSM® Outer Shield Cap for Hypertherm HSD130 / HyPro2000 on MAX200 / MAXPRO200 / HT2000 — 50A / 130A / 200A Universal

HALANSM® 220936 Outer Shield Cap — Universal 50A / 130A / 200A for HSD130 / HyPro2000 / MAXPRO200 / HT2000

The HALANSM® 220936 is the outer shield cap of the Hypertherm consumable stack — the single part that locks the shield cup to the torch barrel while the inner 220935 retaining cap locks the electrode, swirl ring, and nozzle from the torch-head side . One 220936 services four different torch hosts — HSD130, HyPro2000 installed on legacy MAX200, native MAXPRO200, and HT2000 — across 50A, 130A, and 200A by swapping only the shield cup (220532 / 220620 / 220627) .

Why 220936 is not interchangeable with 220935 — or with MAX200 standard caps

The 220936's defining feature is the integrated ohmic / inductive height-sense (IHS) tab. The moment the torch touches the plate, the tab completes the sensing circuit and tells the CNC exactly where Z-zero is, so pierce height is set automatically . Fit a tabless 220935 on a sensing torch and you lose that signal entirely. Conversely, the 220936 is not the same as the plain MAX200 standard caps (020423 graphite handheld / 120837 copper machine) — threads and seat geometry differ, and forcing HyPro caps onto a non-HyPro MAX200 barrel causes thread galling, gas leaks, and arc wander .

Key Features

• Universal Outer Cap Across the HyPro Family: Per the Hypertherm consumables matrix, one 220936 covers 50A / 130A / 200A on both HyPro2000-on-MAX200 and native MAXPRO200 hosts . The shield cup swaps by amperage (220532 → 220620 → 220627); the inner 220935 and outer 220936 stay put — fewer SKUs than the MAX200 standard line where caps split by amp and torch type .

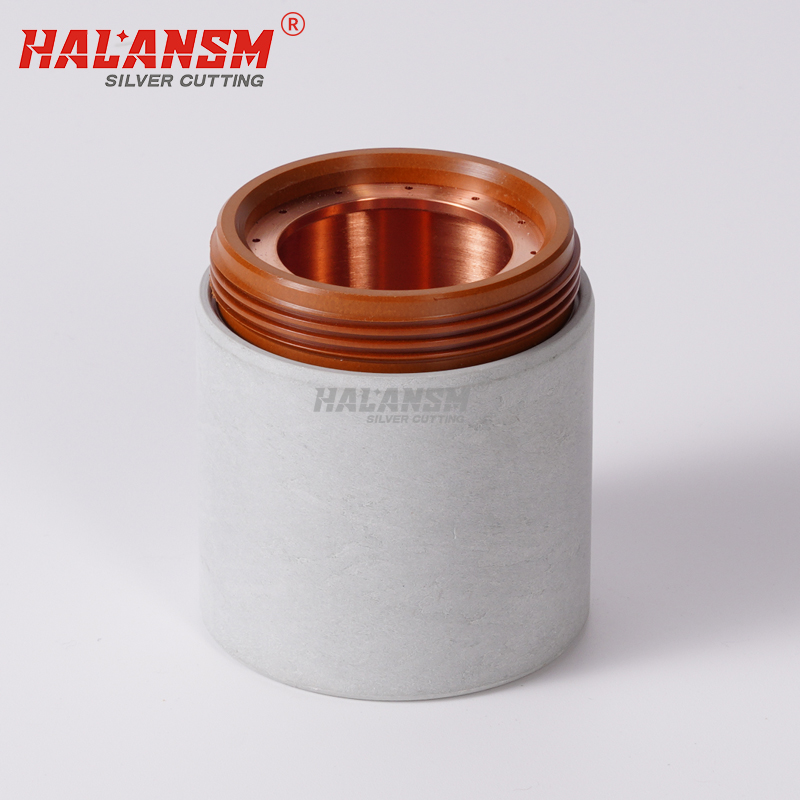

• Copper Body + Ceramic Insulator Ring: The copper body spreads heat and provides mechanical strength; the white ceramic ring electrically isolates the outer cap from the inner stack and protects against spatter and radiant heat . This composite construction is what allows the same cap to survive 50A detail work and 200A heavy plate without cracking or deforming.

• Ohmic / IHS Height-Sense Tab: The tab is the single feature that separates 220936 from 220935. It closes the torch-to-workpiece circuit the instant contact is made, enabling automatic pierce-height control on CNC torch-height controllers — critical for lights-out and high-mix production .

• Secure Seating & Gas Management: Precision O-ring grooves and a true, concentric bore constrict the outer shielding gas envelope and prevent coolant intrusion. Hypertherm maintenance docs call out checking the cap bore for roundness — a dented or cracked 220936 lets gas escape unevenly and is a direct cause of double-arcing and degraded cut edges .

220936 in the Consumable Stack (by amperage)

NOTE: 220936 = outer shield cap with ohmic/IHS height-sense tab. It is the specified outer cap for HSD130 (45/50/65/130A), HyPro2000-on-MAX200, native MAXPRO200, and HT2000 machine/CNC torches wired for automatic height sensing. For handheld or non-sensing torches, use the tabless 220935 instead — fitting a tab on a non-sensing torch interferes with torch seating. 220936 is not interchangeable with plain MAX200 standard caps (020423 / 120837); threads and seat geometry differ. HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
