Optimized for Oxygen Cutting: Specifically engineered for 50A standard straight cutting on mild steel using oxygen as the assist gas.
Enhanced Protection: Provides a robust barrier to protect the nozzle and inner consumables from spatter and thermal damage, extending their lifespan.
Perfect Fit & Finish: Manufactured to exact OEM specifications for seamless drop-in replacement and easy torch assembly.
220532
HALANSM®
HLN-220532

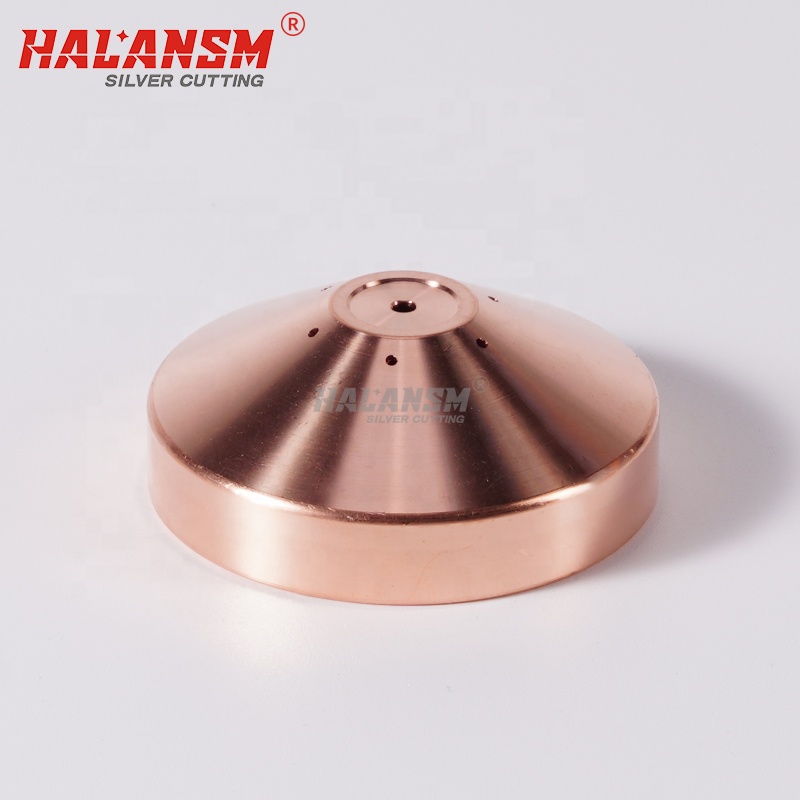

HALANSM® 220532 Shield for HyPro2000 & HT2000 Plasma Torch – 50A
The HALANSM® 220532 Shield is a critical protective component designed for the Hypertherm HyPro2000, HT2000, and MAXPRO200 plasma cutting systems. Positioned at the base of the torch consumable stack, the shield plays a vital role in safeguarding the nozzle and ensuring the integrity of the plasma arc during operation.
Why Choose the HALANSM 220532 Shield?
During high-current plasma cutting, molten metal spatter and intense thermal loads can rapidly degrade the torch components. The shield acts as the first line of defense, catching spatter and distributing heat evenly to prevent localized overheating. A damaged or warped shield can lead to double arcing, poor cut quality, and catastrophic torch failure. The HALANSM 220532 is engineered to replicate OEM tolerances, ensuring your torch operates safely and efficiently.
Key Features:
Oxygen Cutting Specialist: This shield is specifically designed for use with oxygen assist gas at 50A. Its internal geometry and material composition are optimized to handle the unique chemical and thermal demands of oxygen cutting on mild steel.
Superior Thermal Management: Constructed from high-purity CuCrZr alloy, the shield efficiently dissipates heat through the torch's water-cooling system, preventing thermal runaway and ensuring consistent performance shift after shift.
Precision Engineering: Features a smooth, polished internal bore to minimize turbulence and ensure a stable plasma arc. The precisely machined O-ring grooves guarantee a perfect seal, preventing coolant leakage and maintaining optimal operating pressures.
Extended Service Life: The high-quality materials and advanced manufacturing processes used in the HALANSM 220532 result in a consumable that lasts longer than standard alternatives, reducing downtime and maintenance costs.
Complete 50A Oxygen Cutting Stack Reference:
For optimal performance, longevity, and to prevent torch damage, it is highly recommended to replace the shield as part of a complete consumable set. The standard 50A oxygen plasma consumable stack includes:
Electrode: 220528
Swirl Ring: 220529
Nozzle: 220891
Shield: 220532
Shield Cap: 220936
NOTE: This 220532 shield is specifically designed for 50A standard oxygen cutting. While it may physically fit other configurations, using it outside of its rated application may result in suboptimal performance and reduced consumable life. HALANSM® is an independent brand offering premium aftermarket replacements compatible with Hypertherm® systems.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
