Precision Angled Cut Design: The HALANSM® 220659 is a specialized bevel nozzle engineered to deliver precise 200A angled plasma cuts, ideal for edge preparation and weld prep in industrial fabrication.
Superior Thermal Conductivity: Manufactured from premium copper alloys, this nozzle provides exceptional heat dissipation, allowing for higher duty cycles and extended service life even under intense thermal stress.
Perfect OEM Alignment: Designed to match the exacting tolerances of the original equipment manufacturer (OEM), ensuring seamless integration with the Hypertherm HPR series torch heads and swirl rings for a stable, focused arc.
220659
HALANSM®
HLN-220659

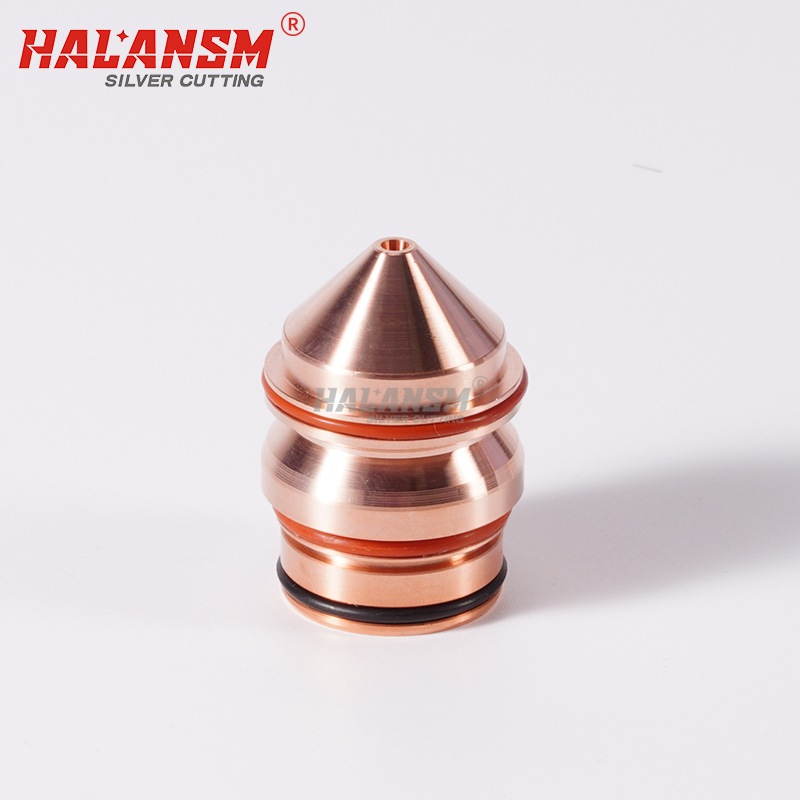

200A Bevel Nozzle 220659 for HPR Plasma Torch – HALANSM®
The HALANSM® 220659 200A Bevel Nozzle is a critical component for fabricators utilizing Hypertherm HPR 130XD, HPR260XD, or HPR400XD plasma systems for high-definition bevel cutting applications. Unlike standard straight-cut nozzles, this bevel nozzle features a precisely angled exit orifice that directs the plasma arc to cut through material at a specific angle, facilitating faster welding times and stronger joint integrity .
Engineered for Complex Thermal Dynamics
Bevel cutting introduces asymmetric heat distribution and alters the natural flow of the plasma plume. The HALANSM 220659 nozzle is precision-machined to manage these complex fluid dynamics. Its internal geometry works in tandem with the swirl ring to centrifuge the gas, focusing the arc into a tight, stable column that maintains its angle throughout the cut, resulting in clean, dross-free bevel edges .
Key Features:
Optimized for 200A Bevel Operations: Specifically designed to operate at 200 Amps, the 220659 nozzle ensures the plasma arc retains its focus and energy at the precise angle required for edge preparation. It is the perfect companion to the HALANSM 220845 inner retaining cap and 220658 shield .
Maximum Erosion Resistance: Crafted from virgin-grade copper-chromium alloy, the nozzle offers superior resistance to thermal erosion compared to standard alternatives. This durability minimizes downtime and reduces the frequency of replacements.
Leak-Proof Secondary Gas Seal: Features a precision-cut O-ring groove that guarantees a perfect, leak-proof seal with the retaining cap (220845). This ensures consistent flow of the secondary shielding gas, protecting the cut edge from atmospheric contamination.
Mandatory Component Replacement: Plasma cutting consumables wear out simultaneously. For peak performance and safety, Hypertherm recommends replacing the nozzle, retaining cap, and shield as a complete interchangeable set. Mixing old and new components can lead to arc instability, poor cut quality, and potential damage to the torch.
The Complete 200A Bevel Consumable Stack:
For optimal results, the HALANSM 220659 nozzle should be installed as part of the following complete set:
Electrode: 220662 (200A Bevel)
Swirl Ring: 220353 (200A Bevel)
Nozzle: 220659 (200A Bevel)
Retaining Cap: 220845 (80A / 200A Bevel)
Shield: 220658 (200A Bevel)
Shield Cap: 220637 (Standard HPR)
Water Tube: 220700 (Bevel Specific)
NOTE: 220659 = 200A Bevel Nozzle. Primary fit: HPR130XD / HPR260XD / HPR400XD. HALANSM 220659 is an aftermarket compatible replacement, not Hypertherm OEM.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
