Perfect Compatibility: Specially designed for 130A cutting on Hypertherm HPR130XD, HPR260XD, and HPR400XD plasma torches.
Enhanced Cooling: Features advanced waterway channels that optimize coolant flow to prevent overheating and warping during high-current operations.
Durable Construction: Made from high-purity tellurium copper with a premium electroless nickel plating for maximum corrosion and spatter resistance.
Cut Quality: Works synergistically with the nozzle and retaining cap to ensure a stable, focused plasma arc for cleaner cuts and reduced dross.
Easy Installation: Precision-machined external threads allow for quick, hassle-free assembly and disassembly.
220183
HALANSM®
HLN-220183

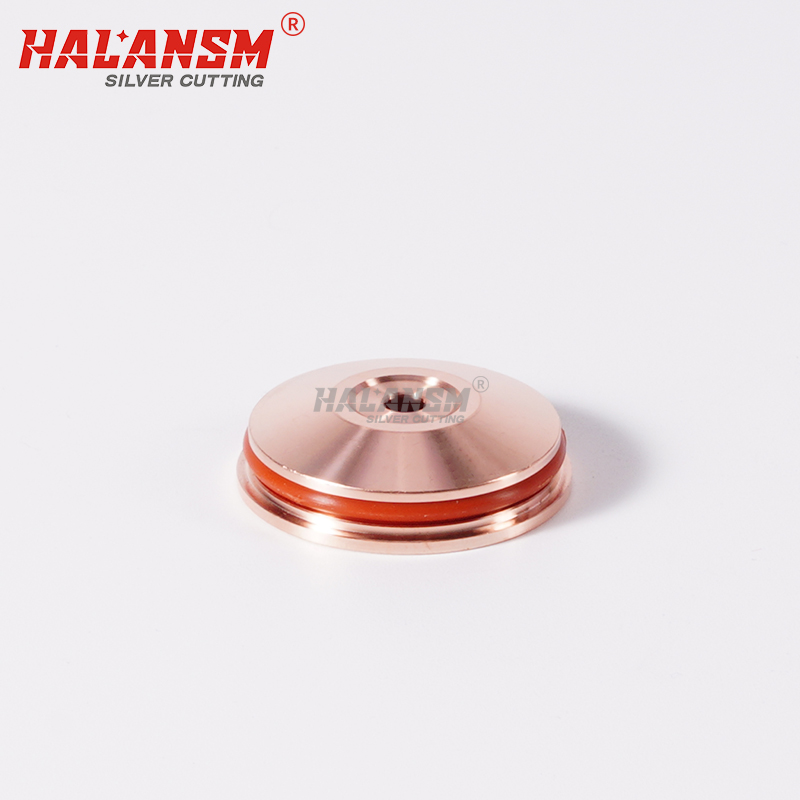

HALANSM® 220183 Shield Cap – Essential Protection for HPRXD 130A Plasma Torches
The HALANSM 220183 Shield Cap is a vital protective component in your Hypertherm HPRXD plasma cutting torch consumable stack. Designed as a direct replacement for OEM part number 220183, this shield cap is engineered for 130A operations on HPR130XD, HPR260XD, and HPR400XD systems.
Positioned at the very tip of the torch, the shield cap serves a dual purpose: it physically protects the critical inner consumables (electrode, swirl ring, and nozzle) from damage, and it directs the flow of shield gas around the plasma plume. This gas blanket is essential for cooling the cut edge and shielding the arc from atmospheric contamination.
The HALANSM 220183 sets itself apart through meticulous engineering and material science:
Advanced Cooling Technology
During 130A cutting operations, temperatures reach extreme levels. The HALANSM 220183 features precisely engineered internal waterway channels that maximize the flow of coolant. This ensures that heat is rapidly dissipated from the torch tip, preventing the shield cap from warping or cracking, thereby extending its service life significantly.
Superior Materials for Harsh Environments
Constructed from high-purity tellurium copper, the shield cap offers exceptional thermal conductivity. This is further enhanced by a thick, mirror-like layer of electroless nickel plating. This coating not only provides outstanding resistance to the corrosive effects of the shield gas and molten metal spatter but also creates a super-smooth surface that is easy to clean, ensuring consistent cut quality over time.
Optimized Gas Flow Dynamics
The internal geometry of the HALANSM 220183 has been precision-machined to optimize the mixing and direction of the shield gas. This ensures a stable, laminar flow around the plasma arc, which is crucial for achieving high-quality, dross-free cuts, especially when piercing and cutting thicker materials.
Technical Specifications
Part Number: 220183
Compatible Systems: Hypertherm HPRXD Series (HPR130XD, HPR260XD, HPR400XD)
Current Rating: 130A (Mild Steel)
Material: Tellurium Copper + Electroless Nickel Plating
Function: Outer protection and shield gas direction
Don't let a worn or damaged shield cap compromise your cutting performance and damage your expensive torch. Trust HALANSM® for reliable, high-performance alternatives to OEM parts.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
