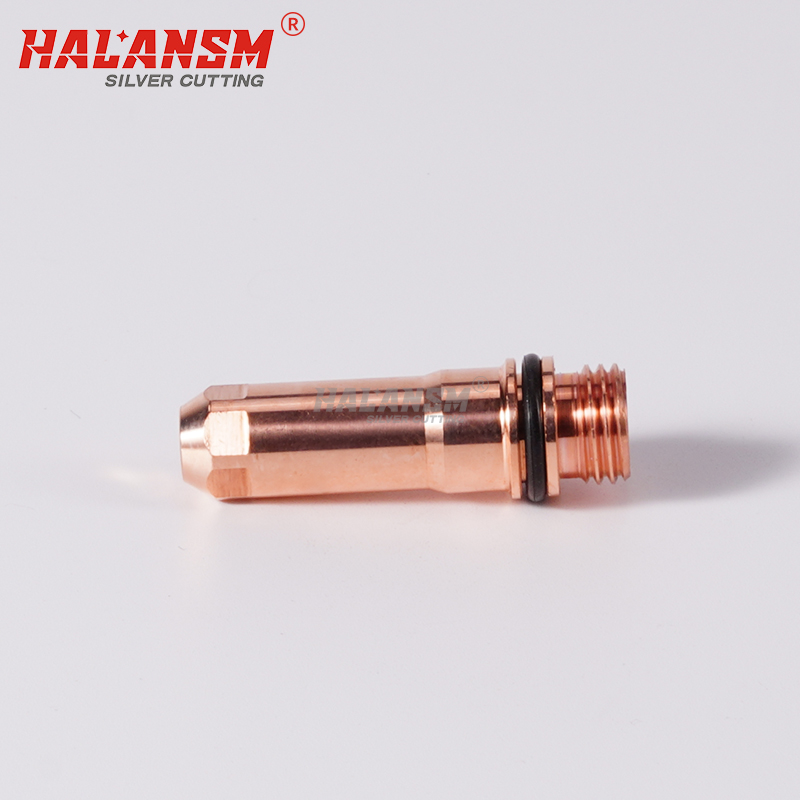

The HALANSM® 220187 is the 80A mild steel electrode for the Hypertherm HPR plasma torch family — HPR130, HPR260, HPR130XD, HPR260XD, HPR400XD. Copper alloy body with high-purity hafnium tip, precision-machined for perfect concentricity and optimal arc starting . In the HPR 80A mild steel stack it pairs with 220179 swirl ring + 220188 nozzle + 220756 retaining cap + 220189 shield + 220747 shield cap + 220340 water tube . HALANSM 220187 is OEM-profile matched to Hypertherm 220187 geometry, lower cost-per-piece than OEM. Compatible aftermarket replacement, not Hypertherm OEM.
220187
HALANSM®
HLN-220187
Electrode 220187 / 80A Mild Steel Electrode for HPR Series – HALANSM®
220187 is Hypertherm's 80A mild steel electrode for the HPR plasma torch family. Copper alloy body with high-purity hafnium tip, precision-machined for perfect concentricity . As the primary electrical contact point, it connects to the negative output from the power supply and initiates the plasma arc — the single most critical factor in cut quality, pierce capability, and consumable life .
220187 in the HPR 80A Mild Steel Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220187 (80A MS) | 220187 |
Swirl Ring | 220179 (80–130A) | 220179 |
Nozzle | 220188 (80A) | 220188 |
Retaining Cap | 220756 (80–130A) | 220756 |
Shield | 220189 (80A MS) | 220189 |
Shield Cap | 220747 (30–130A HPRXD) / 220173 (30–130A HPR130/260) | 220747 / 220173 |
Water Tube | 220340 (45–260A) | 220340 |
Key Points (buyer-facing)
80A MS electrode, one part number crosses BOTH platforms: 220187 fits the older HPR130/HPR260 AND the newer HPR130XD/HPR260XD/HPR400XD identically . The 80A mild steel electrode is platform-agnostic at the 80A level.
NOT for 130A: While 220187 is listed under some 80–130A categories , the verified 80A mild steel electrode is 220187; 130A mild steel uses 220181. Do not run 220187 at 130A — it will prematurely fail.
Hafnium tip must be concentric: The HALANSM 220187 is CNC-machined to ensure the hafnium tip is perfectly centered in the copper body . Off-center tips cause arc wander, double-arcing, and rapid nozzle wear.
Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life.
NOTE: 220187 = 80A MS electrode. Fits HPR130/HPR260/HPR130XD/HPR260XD/HPR400XD. 130A MS electrode = 220181. HALANSM 220187 is an aftermarket compatible replacement, not Hypertherm OEM.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
