Optimal Standoff Distance: Precision-machined internal geometry maintains the correct distance between the torch tip and the metal plate for superior arc focus and cut quality.
Superior Protection: Heavy-duty chrome-plated brass construction provides excellent shielding for delicate internal components against spatter and debris.
Extended Service Life: High-purity materials resist thermal erosion and mechanical wear, significantly outlasting standard shield caps.
Perfect Fit: Manufactured to exact OEM specifications for seamless compatibility with Hypertherm HPR 30A, 50A, 80A, and 130A torches.
Cost Savings: HALANSM® delivers factory-equivalent performance at a fraction of the OEM price, maximizing your production uptime.
220747
HALANSM®
HLN-220747

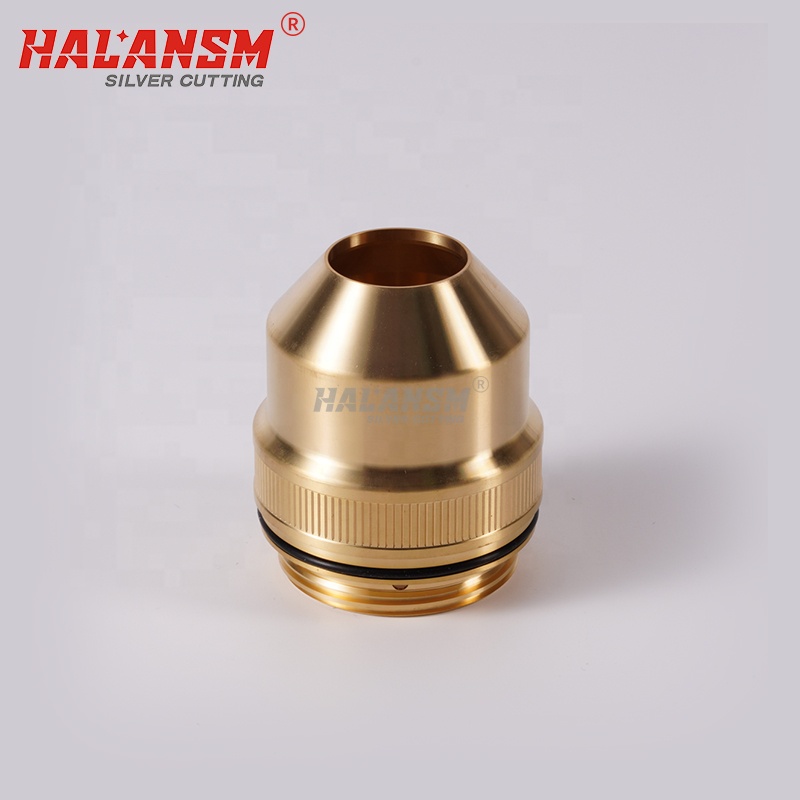

Shield Cap 220747 for HPRXD Plasma Torch – HALANSM®
The HALANSM® 220747 Shield Cap is a critical protective consumable for your Hypertherm HPRXD plasma torch. Located at the very tip of the torch assembly, this component plays a vital role in maintaining the correct standoff distance between the nozzle and the workpiece, which is essential for achieving a stable plasma arc and high-quality cuts.
Designed for operators of HPR130XD, HPR260XD, and HPR400XD systems, the HALANSM 220747 provides robust protection for the precision-machined nozzle and swirl ring located beneath it. Unlike the standard mild steel 220173 shield cap used on non-XD HPR machines, the 220747 features a heavy-duty chrome-plated brass construction. This specialized design is engineered to withstand the higher pressures and demands of the HPRXD series, offering superior resistance to the intense heat and abrasive conditions encountered during high-current cutting operations up to 130A.
Proper torch maintenance is crucial for consistent cutting performance. Worn or damaged shield caps can lead to poor arc stability, excessive dross, and inconsistent pierce quality. By choosing HALANSM®, you invest in a premium quality replacement that restores your torch to peak performance, ensuring clean, dross-free cuts every time.
Upgrade your plasma torch maintenance kit today with HALANSM® 220747 Shield Cap—engineered for performance, built for longevity, and backed by our commitment to quality.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Note: The 220747 is the correct shield cap for the HPRXD series (30A-130A). This is different from the 220173 shield cap used on the older HPR130/260/400 non-XD machines (which use the 220194 shield instead of the 220747). The 220194 shield/220173 shield cap combo is only for the non-XD machines, while the 220747 shield cap is exclusively for the XD series.
HPR 30A Mild Steel Stack Reference (HPRXD):
Pos | Part Number | Part Name |
|---|---|---|
Electrode | 220192 | Silver Electrode (30A) |
Swirl Ring | 220180 | Swirl Ring (30-45A) |
Nozzle | 220193 | Electroplated Copper Nozzle (30A) |
Retaining Cap | 220754 | Retaining Cap (30-50A) |
Shield | 220194 | Shield (30A Mild Steel) |
Shield Cap | 220747 | Shield Cap (XD Series) |
Water Tube | 220340 | Water Tube (45-260A) |
