The 130A Air Nozzle Across Four Hosts: Hypertherm's official HyPro2000 upgrade torch for HT2000 Air chart places 220892 at the 130A position . The same 220892 also serves HyPro2000 on MAX200, native MAXPRO200, and HSD130 at 130A Air .
Air-Only by Design: 220892 is engineered specifically for air plasma cutting of mild steel, stainless steel, and aluminum . For 130A oxygen (mild steel), the correct nozzle is 220893 — fitting a 220892 on an O₂ stack, or a 220893 on an air stack, degrades cut quality and shortens consumable life. This distinction matters.
Arc Constriction = Cut Quality: The nozzle's primary job is to shape, direct, and constrict the plasma arc . The HALANSM 220892 reproduces Hypertherm's micron-level orifice geometry so the 130A air arc stays tightly focused — delivering clean kerfs, minimal dross, and predictable consumable wear.
220892
HALANSM®
HLN-220892

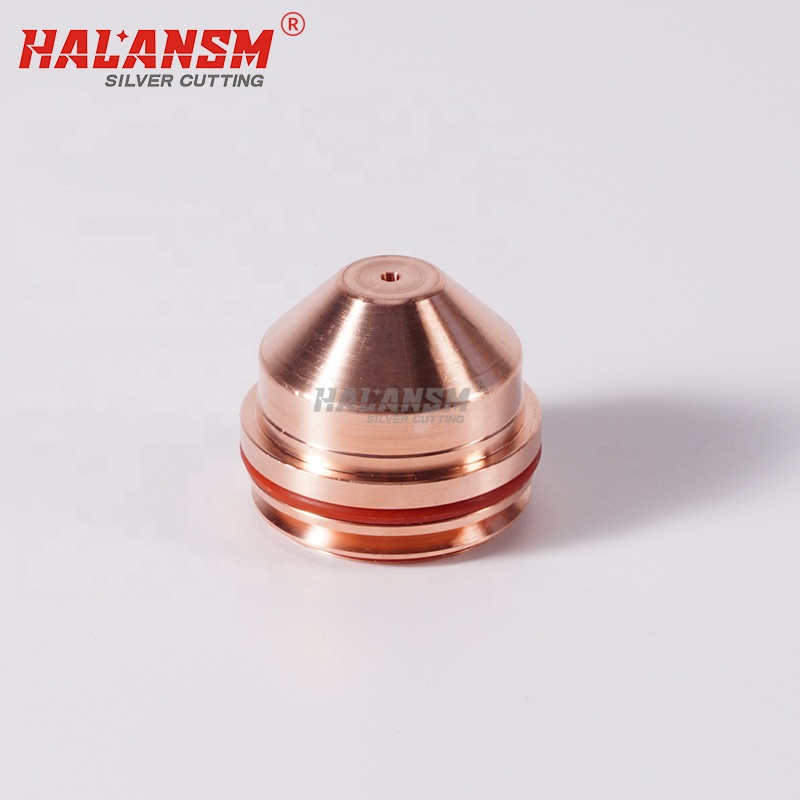

HALANSM® 220892 Nozzle — 130A Air for HyPro2000 Upgrade Torch for HT2000 / MAX200 / MAXPRO200 / HSD130
The HALANSM® 220892 is the designated 130A air nozzle for Hypertherm's HyPro2000 upgrade torch mounted on the HT2000 platform, the HyPro2000 retrofit on MAX200, the native MAXPRO200, and the HSD130 . As the component that shapes, directs, and constricts the plasma arc , the nozzle directly governs cut speed, edge squareness, and dross levels at the 130A Air class. Constructed from high-purity copper-chromium alloy , the 220892 is optimized for one thing: clean, fast air-plasma cutting of mild steel, stainless steel, and aluminum.
Why 220892 is the right nozzle for 130A Air work
Across all four host platforms, Hypertherm's official consumables matrices place the 220892 at the 130A Air position:
HyPro2000 upgrade torch for HT2000 — 130A Air (mild steel / stainless / aluminum): 220536 shield · 220936 shield cap · 220892 nozzle · 220488 swirl ring · 220487 electrode · 220521 water tube · 220935 retaining cap (without tab)
HyPro2000 retrofit torch for MAX200 — 130A Air: same stack as above
Native MAXPRO200 machine torch — 130A Air: 220536 · 220936 · 220892 · 220488 · 220487 · 220521 · 220935 (no tab)
HSD130 — 130A Air: HALANSM®Weld and HALANSM both list 220892 for HSD130 at 130A
Key Features
Precision Orifice for Air-Arc Constriction: The micron-level precision of the central orifice guarantees a highly focused air-plasma arc . At 130A, this focus translates into clean, dross-free cuts on mild steel, stainless steel, and aluminum — the single biggest driver of throughput in fabrication shops running air plasma.
Air-Specific Gas Dynamics: The 220892's internal geometry is tuned to the specific flow characteristics of air plasma. Air and oxygen have fundamentally different ionization and flow behavior — which is why Hypertherm specifies 220892 for Air and 220893 for O₂ at the same 130A . Fitting a 220892 on an O₂ stack, or a 220893 on an air stack, degrades cut quality and shortens consumable life.
High Thermal Conductivity: The copper-chromium alloy body offers exceptional thermal conductivity to dissipate the intense heat of a 130A arc . This extends operational lifespan even under continuous production cutting — critical in job shops and contract fabrication.
Leak-Proof Seating: Machined to Hypertherm's exact OEM dimensions so it drops into the torch head and seals perfectly against the 220488 swirl ring and 220536 shield — no gas bypass, no pressure loss, no arc instability.
130A Air Consumable Stack (Mild Steel / Stainless / Aluminum)
Position | Part | 130A Air |
|---|---|---|
Nozzle | 220892 | 220892 |
Shield | 220536 (Air/N₂) | 220536 |
Swirl Ring | 220488 | 220488 |
Electrode | 220487 | 220487 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
NOTE: 220892 = 130A air nozzle. Compatible hosts: HyPro2000 upgrade torch for HT2000, HyPro2000 retrofit for MAX200, MAXPRO200, and HSD130 — all at 130A Air for mild steel / stainless / aluminum . This nozzle is air-specific; for 130A oxygen (mild steel), use nozzle 220893 instead . For 200A Air use 420044; for 200A O₂ use 220831 (each covered on its own product page). The 220892 pairs with electrode 220487, swirl ring 220488, and shield 220536 . Always inspect the nozzle orifice for roundness and wear when cut quality degrades — a worn nozzle causes arc wander, double-arcing, and accelerated electrode erosion . HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
