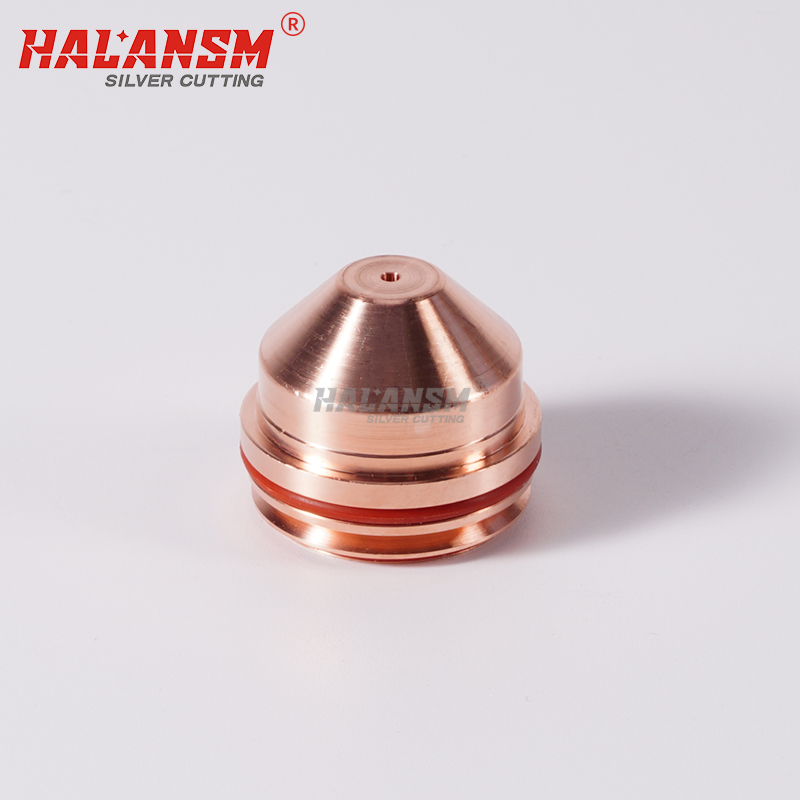

HALANSM 220890 Nozzle for Hypertherm HyPro2000 MAX200 50A plasma cutting torch consumable HALANSM 220890 Nozzle for Hypertherm HyPro2000 MAX200 50A plasma cutting torch consumable

loading

220890 Nozzle for Hypertherm HyPro2000 MAX200 50A Plasma Cutting Torch Consumable

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220890​ is the 50A fine-cut nozzle for Hypertherm HyPro2000 torches on MAX200 hosts (also cross-lists to MAXPRO200 50A). Bore and gas-path tuned for conical-flow air cutting on thin sheet — narrower kerf, less dross, cleaner edge than standard MAX200 40A stack. Pairs with 220528 elec + 220529 swirl + 220532 shield in the HyPro 50A stack. 220890 ≠ MAX200 standard nozzles (020689/020611/020608) — host/torch must read "HyPro2000" or "MAXPRO200" to fit; standard MAX200 barrel uses different swirl seat and cap interface.

  • 220890

  • HALANSM®

  • HLN-220890

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Model
220890
Type
Nozzle / 50A Fine-Cut Tip
Amperage
50A
Material
High-Purity Copper (silver-grade thermal treat)
Compatible Torch​
Hypertherm HyPro2000 (on MAX200 host) / MAXPRO200 50A
Application
Fine-Cut / Conical Flow & Thin Sheet (MS/SS)
Process Gas​
Air (primary for 50A fine-cut)
Cross-Reference
Hypertherm 220890
Paired Stack​
220528 elec + 220529 swirl + 220890 noz​ + 220532 shield + HyPro cap



Nozzle 220890 / 50A Fine-Cut Nozzle for HyPro2000 (MAX200) & MAXPRO200 – HALANSM

220890 is Hypertherm's 50A fine-cut nozzle for the HyPro2000 torch — appears on two hosts: HyPro2000 retrofitted onto legacy MAX200 and MAXPRO200 50A (native). Bore is conical-flow tuned: narrower than standard MAX200 40A (020689), tighter kerf, less dross on thin MS/SS sheet. Runs air as primary 50A gas; for N₂/H35/Arg-H₂ you'd be on higher amps, not 50A.


220890 in HyPro2000 / MAXPRO200 50A stack

Pos

Part

Ref

Electrode

220528 (50A fine-cut elec)

220528

Swirl

220529

220529

Nozzle

220890 (50A fine-cut)

220890

Shield

220532

220532

Retaining Cap

220936 (HyPro/MAP cap)

220936


Key Points (buyer-facing)

  • Fine-cut bore, not standard MAX200: 220890 kerf and gas-path are finer than MAX200 40A standard nozzle 020689. If host is plain "MAX200" (no HyPro2000 upgrade), 50A-class cutting actually runs the 40A stack (120547+020613+020689+020688+020423 graphite cap) — 220890 won't seat on standard MAX200 barrel (different swirl seat + cap thread, HyPro uses 220936 copper cap, standard MAX200 40A handheld uses 020423 graphite cap, machine uses 120837).

  • Two hosts share this number: 220890 lists under both "HyPro2000 for MAX200 50A" and "MAXPRO200 50A" — same nozzle, different host torch body. Both use HyPro-style cap (220936), not MAX200 standard caps (020423/120837). Confirm buyer's torch badge reads "HyPro2000" (on MAX200 backplane) or "MAXPRO200" — plain "MAX200" = wrong line.

  • 220528 + 220529 + 220890 + 220532 + 220936 = full 50A HyPro stack: Elec/swirl/noz/shield/cap all HyPro-numbered (220xxx), not interchangeable with MAX200 standard 020x/120x stack. Mixing HyPro noz (220890) onto MAX200 standard barrel (020689 seat) = arc off-center + rapid burn.

  • Process fit: 50A fine-cut is air-primary (thin sheet, HVAC, precision parts). If buyer needs 50A on N₂/H35/Arg-H₂, that's not a 50A nozzle class — those gases live at 130A+ on HyPro2000 / MAXPRO200.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


HALANSM-HyPro2000-for-MAX200-plasma-consumables-catalog-chart

Download the complete product brochure：
