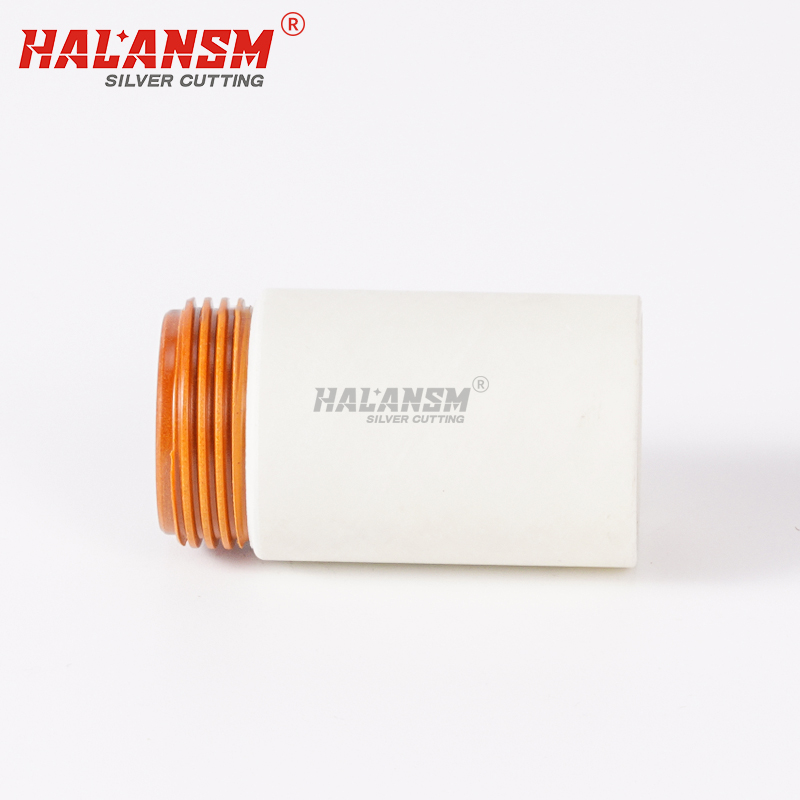

HALANSM Replacement Retaining Cap 220048 for Hypertherm Powermax 1650 and T100 Plasma Torch HALANSM Replacement Retaining Cap 220048 for Hypertherm Powermax 1650 and T100 Plasma Torch

loading

220048 Replacement Retaining Cap for Hypertherm Powermax 1650 - 100A Mechanized - HALANSM®

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 220048​ is a 100-Ampere retaining cap designed for heavy-duty mechanized plasma cutting. It provides robust retention for the torch consumables stack, ensuring consistent cut quality and extended torch life during high-power automated operations.

  • 220048

  • HALANSM®

  • HLN-220048

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220047
Product Type
Retaining Cap
Compatible Torch​
Powermax 1650 (T100 / T100M)
Amperage
100 A
Application
Mechanized / CNC Plasma Cutting
Material
High-Strength Composite / Engineering Plastic



Retaining Cap 220048 / 100A Mechanized Cap for Hypertherm Powermax 1650 & T100 – HALANSM

The HALANSM® 220048 is a high-performance retaining cap engineered for 100-Ampere mechanized (CNC) plasma cutting systems. As the final component in the consumables stack, this cap plays a crucial role in compressing the shield and nozzle against the torch head, maintaining the precise standoff distance required for superior cut quality.


220048 in Powermax 1650 / T100 Mechanized Stack

Position

Part Number

Function

Electrode

220182 (SilverPlus)

Generates the plasma arc

Swirl Ring

220188

Directs gas flow

Nozzle

220047 (Extended) / 220007 (Std)

Shapes the plasma arc

Shield

220065

Protects consumables and focuses arc

Retaining Cap

220048

Secures entire consumables assembly


Key Compatibility Notes

  • 100A Mechanized Use: The 220048 is specifically designed for the 100-Ampere tier of the Powermax 1650 and T100 series. Its internal threading is precision-machined to accept the specific diameter of the 100A shield and nozzle assembly.

  • System Fit: This cap is fully compatible with Hypertherm Powermax 1650 and T100/T100M torches. It is critical to ensure that the shield and nozzle combination used matches the cap's internal dimensions to prevent thread damage or poor cut quality.

  • Durability: Constructed from high-strength composite materials, the HALANSM® 220048 is built to withstand the extreme mechanical stresses and thermal cycling encountered during high-speed automated cutting.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


HALANSM-T80-T80M-plasma-torch-consumables-catalog-diagram

Download the complete product brochure：
