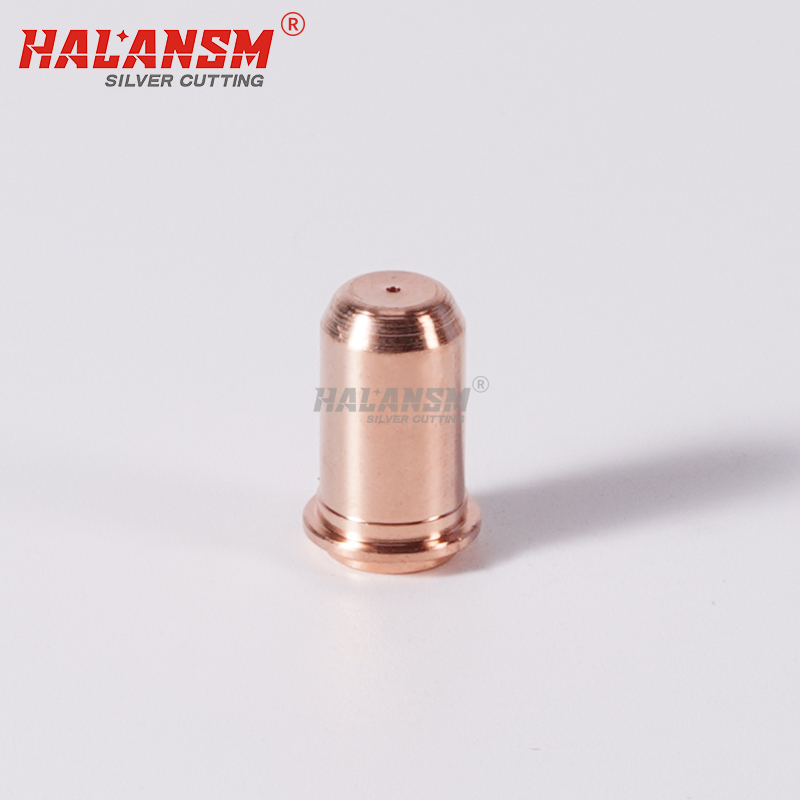

HALANSM replacement copper nozzle 220480 for Hypertherm Powermax 30 and Powermax 45A air plasma cutting torches. HALANSM replacement copper nozzle 220480 for Hypertherm Powermax 30 and Powermax 45A air plasma cutting torches.

loading

220480 Replacement Nozzle for Hypertherm Powermax 30 & 45A - 15-30A Standard Cutting Tip

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

HALANSM® Nozzle 220480: Precision Cutting for Powermax 30/45A

The HALANSM® 220480 is a high-precision, standard copper nozzle designed for the Hypertherm Powermax 30 and Powermax 45A plasma cutting systems. Specifically engineered for drag cutting applications at lower amperages (15-30A), this nozzle focuses the plasma arc into a tight, controlled stream for clean, dross-free cuts on thin to medium metals. As an OEM-matched replacement, it offers the same quality and performance as the original part at a fraction of the cost.

  • 220480

  • HALANSM®

  • HLN-220480

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220480
Product Type
Plasma Cutting Electrode (Standard)
Compatible Torch​
Hypertherm Powermax 30
Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 30 Amps
Application
Drag Cutting (Hand Torch)
Material
High-Purity Copper



Enhanced Cut Quality for Fine Feature Work

The HALANSM® 220480 nozzle is the critical component responsible for directing the plasma arc to create a precise cut. Its smooth bore and precision-machined internal flow paths ensure maximum energy concentration, resulting in faster piercing times and superior edge quality on materials up to 12mm (1/2 inch), depending on the base metal.


Key Features:

  • Optimal Flow Design: The internal geometry is designed to work seamlessly with the Silver-Core Electrode 220478, ensuring laminar gas flow that cools the electrode while focusing the arc.

  • Durable Copper Build: Constructed from premium oxygen-free copper for maximum thermal conductivity and heat resistance during prolonged cutting sessions.

  • Drop-In Replacement: Threads and physical dimensions are identical to the OEM 220480, allowing for easy, tool-free installation and removal.

  • Cost Savings: HALANSM® manufactures this nozzle to meet or exceed OEM standards, providing professional-grade results without the premium price tag.


Installation & Compatibility Guidelines

  • Correct Consumable Stack: For standard drag cutting, the correct assembly order (from the torch body out) is: Electrode (220478) -> Swirl Ring (220479) -> Nozzle (220480) -> Shield Cap (220674).

  • Amperage Limitation: This is a 15-30A nozzle. While it may technically fit on a 45A torch, using it at currents above 30A can cause premature failure due to overheating.

  • System Lock: The Powermax 30/45A consumable system (including the 220480 nozzle) is mechanically incompatible with the HSD130 45A system. Please verify your torch model before purchasing to avoid damage.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart
