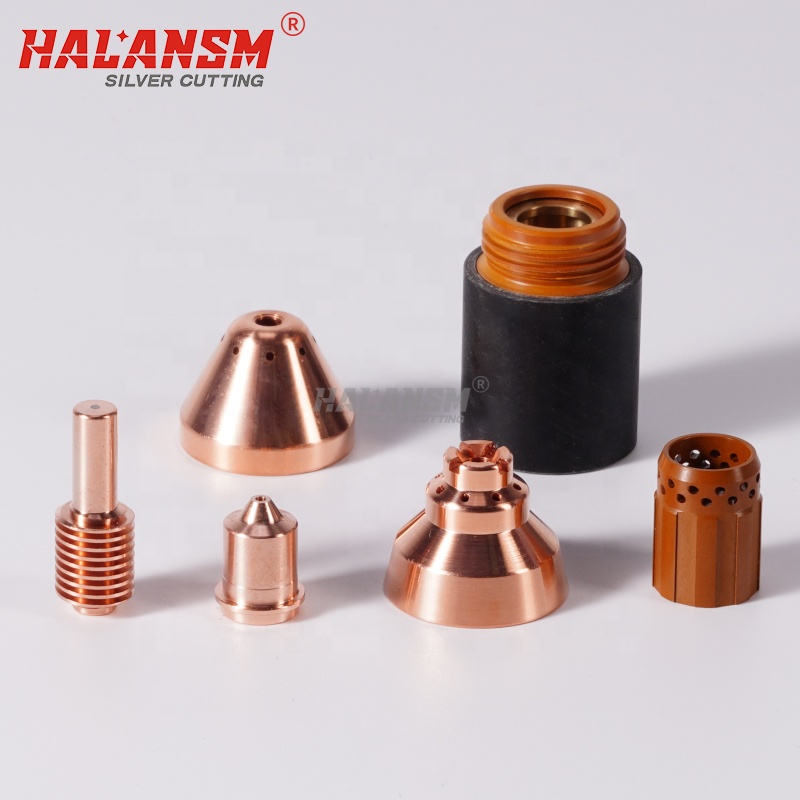

Complete set of Hypertherm Powermax 45 and 45A drag cutting consumables including shield cap 220674, nozzle 220671, electrode 220478, and swirl ring 220479 for handheld plasma torch systems. Complete set of Hypertherm Powermax 45 and 45A drag cutting consumables including shield cap 220674, nozzle 220671, electrode 220478, and swirl ring 220479 for handheld plasma torch systems.

loading

Complete Drag Cutting Consumable Kit for Hypertherm Powermax 45 & 45A (Shield 220674, Nozzle 220671, Electrode 220478, Swirl Ring 220479)

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

HALANSM® Essential Cutting Kit: Ultimate Performance for Powermax 45A

The HALANSM® Powermax 45 / 45A Drag Cutting Consumable Kit is a comprehensive bundle of all front-end consumables required for routine maintenance and peak performance. This kit includes the critical Shield Cap (220674), Nozzle (220671), Electrode (220478), and Swirl Ring (220479) specifically engineered for the 15-45A drag cutting hand torch. Designed to OEM specifications, this kit restores cut quality and ensures reliable arc starts, offering significant cost savings over original equipment manufacturer parts.

  • 220674 / 220671 / 220478 / 220479

  • HALANSM®

  • HLN-PM45

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220674 (Shield)
220671 (Nozzle)
220478 (Electrode)
220479 (Swirl Ring)
Product Type
Plasma Cutting Consumable Kit (Drag Cutting)
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 Amps
Application
Handheld Drag Cutting
Notice
System Compatibility:​ This consumable set (2208xx series) is exclusively for the Powermax 45 / 45A platform and is NOT interchangeable with the HSD130 45A system (2205xx series).



Complete Maintenance Solution for Your Powermax 45 Torch

The HALANSM® Drag Cutting Consumable Kit provides everything you need to refresh your Hypertherm Powermax 45 or 45A hand torch. Proper maintenance of these four core components is essential for achieving clean, dross-free cuts and maintaining optimal piercing speeds.


Kit Component Details:

  • Shield Cap (220674): The large outer copper cup that protects the nozzle and distributes shield gas to protect the cut edge.

  • Nozzle (220671): The precision-machined copper tip that focuses the plasma arc into a concentrated stream for cutting metal.

  • Electrode (220478): The silver-core electrode that carries the current and generates the plasma arc.

  • Swirl Ring (220479): The grooved copper ring that imparts a rotary motion to the plasma gas, cooling the electrode and focusing the arc.


Key Benefits of the HALANSM® Kit:

  • Perfect OEM Match: Every component is manufactured to exact dimensional tolerances to ensure perfect alignment and gas flow within the torch head.

  • Cost-Effective Maintenance: Purchasing the complete kit is more economical than buying individual parts and ensures you have the correct compatible components on hand.

  • Consistent Cut Quality: Replacing all worn parts simultaneously restores the torch to like-new performance, eliminating issues like poor arc starts, excessive dross, or crooked cuts.


⚠️ Critical Installation & Compatibility Notes

  • Correct Assembly Order: When rebuilding the torch, always install the components in this order (from the torch body outwards): Electrode (220478) -> Swirl Ring (220479) -> Nozzle (220671) -> Shield Cap (220674).

  • Do Not Mix Systems: The Powermax 45 / 45A (2208xx series) uses different thread patterns and dimensions than the older HSD130 45A (2205xx series). Using this kit on an HSD130 torch will result in gas leaks and potential torch damage. Please verify your torch model before purchasing.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart

Download the complete product brochure：
