The 130A Air/N₂ Shield Across Four Hosts: Hypertherm's official HyPro2000 upgrade torch for HT2000 Air chart places 220536 at the 130A position . The same 220536 also serves HyPro2000 on MAX200, native MAXPRO200, and HSD130 at 130A Air/N₂ .
Air/Nitrogen — Not Oxygen: 220536 is engineered specifically for air and nitrogen plasma processes. HALANSM's own product copy explicitly contrasts it with the oxygen shield: "Unlike the shield cups designed for high-definition Oxygen cutting, the 220536 features a specialized internal geometry tailored for Air or Nitrogen processes" . For 130A O₂ (mild steel), the correct shield is 220491 — fitting a 220536 on an O₂ stack degrades cut quality and shortens consumable life.
Outermost Thermal Barrier: As the final outer component, the 220536 protects the precision 220892/220893 nozzle and 220487 electrode from molten spatter and extreme radiant heat . A cracked or warped shield lets gas escape unevenly and is a direct cause of double-arcing and degraded cut edges.
220536
HALANSM®
HLN-220536

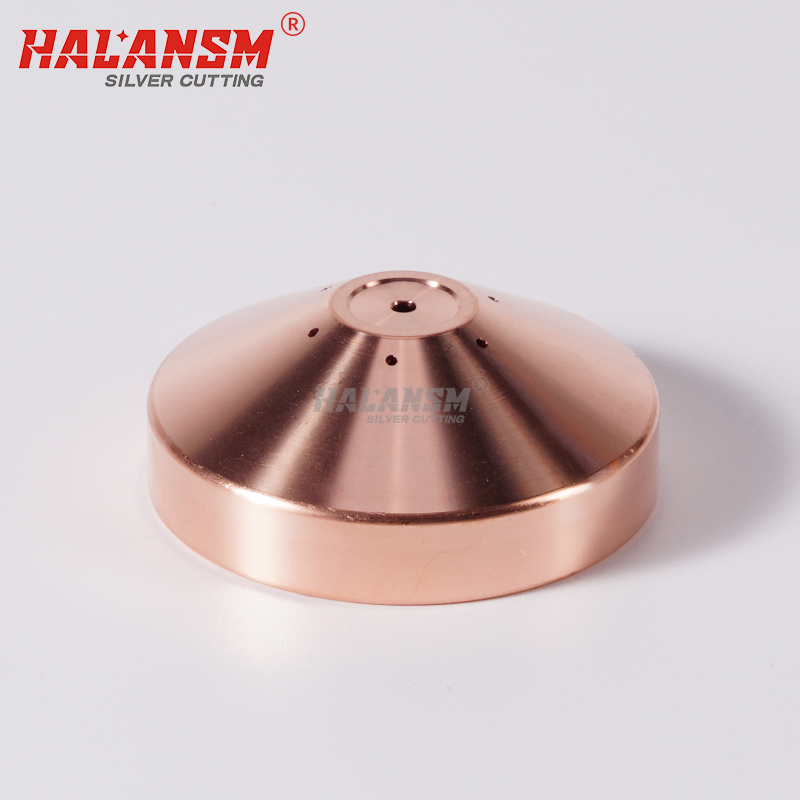

HALANSM® 220536 Shield — 130A Air/Nitrogen for HyPro2000 Upgrade Torch for HT2000 / MAX200 / MAXPRO200 / HSD130
The HALANSM® 220536 is the designated 130A shield for air and nitrogen plasma cutting on Hypertherm's HyPro2000 upgrade torch for HT2000, the HyPro2000 retrofit on MAX200, the native MAXPRO200, and the HSD130 . As the outermost barrier protecting the nozzle and electrode, the shield directly governs arc stability, cut-edge quality, and consumable life at the 130A Air/N₂ class. Constructed from high-purity copper with an internal bore tailored specifically for air and nitrogen gas dynamics , the 220536 is optimized for one thing: clean, stable plasma cutting of mild steel, stainless steel, and aluminum in Air/N₂ processes.
Why 220536 is the right shield for 130A Air/N₂ work
Across all four host platforms, Hypertherm's official consumables matrices place the 220536 at the 130A Air/N₂ position:
HyPro2000 upgrade torch for HT2000 — 130A Air: 220536 shield · 220936 shield cap · 220892 nozzle · 220488 swirl ring · 220487 electrode · 220521 water tube · 220935 retaining cap (without tab)
HyPro2000 retrofit torch for MAX200 — 130A Air: same stack as above
Native MAXPRO200 machine torch — 130A Air: 220536 · 220936 · 220892 · 220488 · 220487 · 220521 · 220935 (no tab)
HSD130 — 130A Air/N₂: HALANSM®Weld and HALANSM both list 220536 for HSD130 at 130A
HALANSM®Weld's title confirms it as "Shield 220536 for Hypertherm maxpro200 Hsd130... 130A" ; HALANSM's own copy states "the 220536 features a specialized internal geometry tailored for Air or Nitrogen processes... effective cooling the nozzle tip and preventing atmospheric contamination for a cleaner cut" . One shield, four host torches, two gas processes — air and nitrogen.
Key Features
Air/Nitrogen-Specific Bore Geometry: Unlike the shield cups designed for high-definition oxygen cutting, the 220536 features a specialized internal bore and gas path tailored for Air or Nitrogen processes . Air and N₂ have fundamentally different flow and ionization characteristics than O₂; the 220536's geometry optimizes gas velocity and coverage for these gases, effectively cooling the nozzle tip and preventing atmospheric contamination for a cleaner cut .
Critical Distinction: 220536 vs 220491: While both shield cups fit the same torch body and amperage, they are engineered for different gases and must not be interchanged. 220536 (this product) is for Air or Nitrogen. 220491 is for Oxygen — it features a different bore and flow path for O₂ compatibility . Fitting a 220536 on an O₂ stack, or a 220491 on an Air/N₂ stack, degrades cut quality and shortens consumable life.
Robust Outer Thermal Barrier: Acting as the outermost layer of the torch stack, the 220536 provides a robust physical barrier against intense thermal loads and molten metal spatter . This heavy-duty protection prevents catastrophic damage to the inner nozzle and electrode, minimizing costly production downtime .
Seamless OEM Fit: Manufactured to exact dimensional tolerances, the HALANSM® 220536 installs effortlessly and maintains perfect concentricity with the retaining cap and nozzle, ensuring the plasma arc remains stable and focused .
130A Consumable Stack (Air process — mild steel / stainless / aluminum)
Position | Part | 130A Air |
|---|---|---|
Shield | 220536 | 220536 |
Nozzle | 220892 (Air) | 220892 |
Swirl Ring | 220488 | 220488 |
Electrode | 220487 | 220487 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
130A Consumable Stack (N₂ process — stainless / aluminum)
Position | Part | 130A N₂ |
|---|---|---|
Shield | 220536 | 220536 |
Nozzle | appropriate N₂ nozzle | — |
Swirl Ring | 220488 | 220488 |
Electrode | 220487 | 220487 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
NOTE: 220536 = 130A shield for Air and Nitrogen only. Compatible hosts: HyPro2000 upgrade torch for HT2000, HyPro2000 retrofit for MAX200, MAXPRO200, and HSD130 — all at 130A Air/N₂ . This shield is not for oxygen; for 130A O₂ use 220491 instead . The 220536 is not a 200A part; for 200A Air/N₂ use shield 420045, and for 200A O₂ use shield 220832 (each covered on its own product page). Always inspect the shield for cracks, warping, or spatter buildup when cut quality degrades — a compromised shield causes double-arcing and accelerated nozzle/electrode failure . HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.
