The 130A Electrode Across Three Hosts: Airgas confirms 220487 as "130 Amp Electrode For Use With HSD130, HyPro2000™, MAXPRO2000®" . Hypertherm's own retrofit torch matrix for MAX200 lists 220487 at the 130A position , and the native MAXPRO200 matrix does the same for both air and oxygen .
Air & Oxygen Dual Process: Rated 130A in air (mild steel / stainless / aluminum) and oxygen (mild steel). Metro Welding specifies it as "130 Amp Air/Oxygen Electrode for use with mild steel, aluminum and stainless steel" . One electrode, three host torches, two gas processes.
Stable Arc Initiation: The precision-centered emission insert and true concentricity against the 220488 swirl ring ensure repeatable high-frequency starts and a tightly constrained 130A arc column — directly governing cut-edge quality and downstream nozzle wear.
220487
HALANSM®
HLN-220487

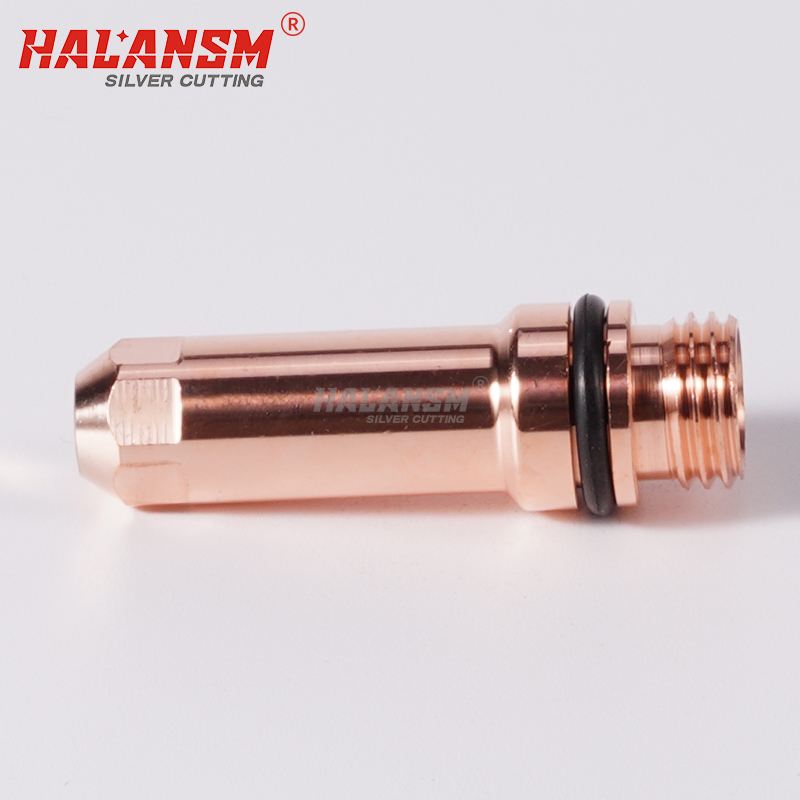

HALANSM® 220487 Electrode — 130A for HSD130 / HyPro2000-on-MAX200 / MAXPRO200 Plasma Torch
The HALANSM® 220487 is the designated 130A electrode for Hypertherm's HSD130, the HyPro2000 retrofit torch mounted on the MAX200 platform (the documented upgrade path for legacy HT2000 systems) , and the native MAXPRO200 . As the component where the plasma arc is born, the electrode governs two factors that decide your cut quality and your cost-per-part: arc-start reliability and how tightly the arc is constrained before it reaches the nozzle. A worn or off-center electrode causes wandering arcs, excessive dross, and accelerated nozzle erosion.
Why 220487 is the right electrode for 130A work
Across all three host platforms, Hypertherm's official consumables matrices place the 220487 at the 130A position:
HyPro2000 retrofit torch for MAX200 — 130A Air: 220536 shield · 220936 outer cap · 220935 inner cap (no tab) · 220892 nozzle · 220488 swirl ring · 220487 electrode · 220521 water tube
Native MAXPRO200 machine torch — 130A Air: 220536 · 220936 · 220892 · 220488 · 220487 · 220521 · 220935 (no tab)
Native MAXPRO200 machine torch — 130A O₂: 220491 · 220936 · 220893 · 220488 · 220487 · 220521 · 220935 (no tab)
HSD130 — 130A Air: 220536 · 220578 retaining cap · 220492 nozzle · 220488 swirl ring · 220487 electrode
Airgas and Metro Welding both confirm the same cross-platform identity: "130 Amp Electrode For Use With HSD130, HyPro2000™, MAXPRO2000®" , "130 Amp Air/Oxygen Electrode for use with mild steel, aluminum and stainless steel" . One electrode, three host torches, two gas processes.
Key Features
Dual-Process 130A Rating: The 220487 carries a full 130A load in air (cutting mild steel, stainless steel, and aluminum) and oxygen (mild steel) . This eliminates the need to stock separate electrodes per gas — a genuine inventory simplification on mixed-material jobs.
Precision-Centered Emission Insert: The tip insert is centered to micron-level tolerance so the emitted electron beam stays coaxial with the 220488 swirl-ring vortex. The result is a symmetric, tightly constrained arc column that hits the 220892/220893 nozzle orifice dead-center — extending nozzle life and producing square, dross-free kerfs.
High-Frequency Start Reliability: The copper alloy body and insert material are selected for consistent pilot-arc initiation across thousands of start cycles. Reliable starts mean fewer misfires, less electrode cratering, and predictable consumable life.
Leak-Proof Torch-Head Seal: The threaded base and O-ring groove mate perfectly with the 220488 swirl ring, sealing the coolant path from the 220521 water tube and preventing gas-pressure loss that would destabilize the arc.
130A Consumable Stack (Air process — mild steel / stainless / aluminum)
Position | Part | 130A Air |
|---|---|---|
Electrode | 220487 | 220487 |
Swirl Ring | 220488 | 220488 |
Nozzle | 220892 (Air) | 220892 |
Shield | 220536 (Air) | 220536 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
130A Consumable Stack (O₂ process — mild steel)
Position | Part | 130A O₂ |
|---|---|---|
Electrode | 220487 | 220487 |
Swirl Ring | 220488 | 220488 |
Nozzle | 220893 (O₂) | 220893 |
Shield | 220491 (O₂) | 220491 |
Inner Cap | 220935 (without tab) | 220935 |
Outer Cap | 220936 (with IHS tab) | 220936 |
Water Tube | 220521 | 220521 |
NOTE: 220487 = 130A electrode. Compatible hosts: HSD130, HyPro2000 retrofit torch for MAX200 (the HT2000 platform upgrade path), and MAXPRO200 (handheld & machine) . Rated 130A for Air (mild steel / stainless / aluminum) and Oxygen (mild steel) processes . Pairs with swirl ring 220488 and nozzles 220892 (Air) / 220893 (O₂) . For 50A work use 220528; for 200A work use 220937. HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.
Disclaimer: This product is manufactured by HALANSM® as a replacement part. It is not created or endorsed by Hypertherm Inc.
Real Shot: Images above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
