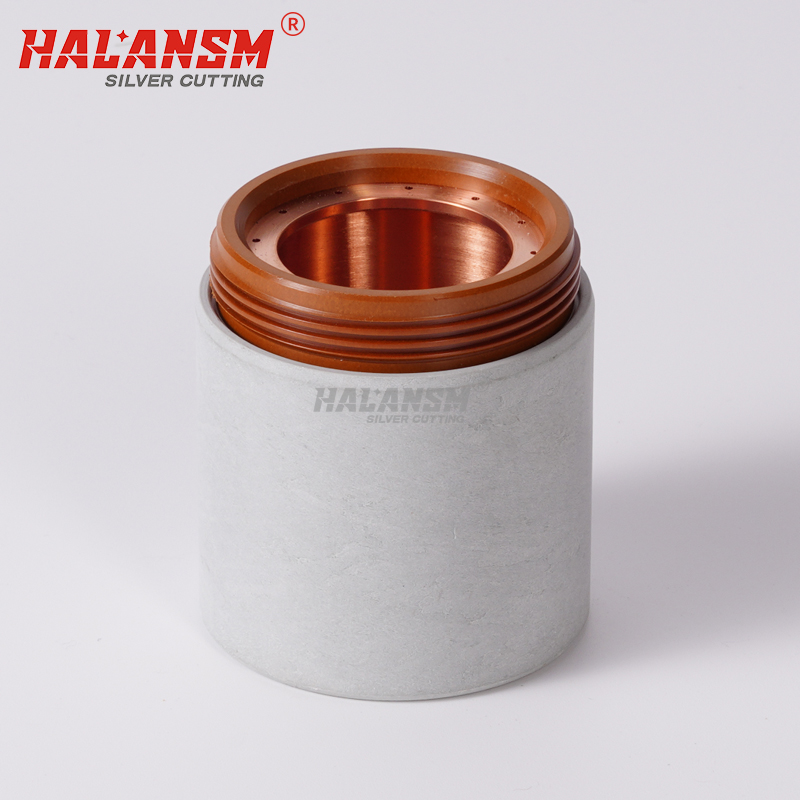

HALANSMSM® 220935 Shield Cap Without Tab — for HyPro2000 / HT2000 / MAXPRO200 Handheld Plasma Torch

The HALANSMSM® 220935 is the tabless outer cap of the HyPro2000 / HT2000 / MAXPRO200 consumable stack. It is the part Hypertherm's official consumables matrix specifies for every standard machine-torch combination — 50A, 130A, and 200A, across Air, O₂, and N₂ gases, all listed as "220935 without tab" . If your torch is not wired for inductive height sensing, this is the correct cap.

Why "without tab" is the default, not the exception

On a torch that does not use automatic torch-to-plate detection, the height-sense tab on the 220936 is not just unnecessary — it can interfere with torch seating and must be omitted. That is exactly what the 220935 is: the same copper-alloy cap as the 220936, with the tab milled off, so it seats cleanly on a non-sensing torch head. Fit a 220936 on such a torch and you risk a poor seat; fit a 220935 on a sensing torch and you lose Z-zero detection. The choice is dictated by the torch, not the operator.

Key Features

• The Specified Standard Cap: Hypertherm's own MAXPRO200 tables list 220935 without tab for the 50A, 130A, and 200A machine-torch rows in Air, O₂, and N₂ . It is the default consumable referenced in maintenance docs and cut charts — the cap your system was designed around.

• True Cross-Gas Coverage: One 220935 services Air (mild steel / stainless / aluminum) and Oxygen (mild steel) at every amperage . You stock a single shield-cap part number instead of one per gas — a real inventory win on mixed-material jobs.

• Bore Integrity & Gas Constriction: Hypertherm maintenance guidance explicitly calls out inspecting the shield cap bore for roundness and surface condition . The HALANSMSM 220935 is machined to hold a true, concentric bore so the shielding gas stays symmetric — directly controlling cut-edge quality and resistance to double-arcing.

• Leak-Proof O-Ring Sealing: Precision O-ring grooves at the cap base seal against the shield and torch head, preventing coolant intrusion and maintaining the gas pressures the nozzle and swirl ring depend on.

Complete Stack Reference (50A Air/O₂ example)

NOTE: 220935 = without ohmic height-sense tab. It is the specified cap for MAXPRO200 / HyPro2000 / HT2000 handheld torches and machine torches that do not use inductive height sensing. For torches wired for automatic Z-zero detection, use the 220936 with tab instead. The 220935 covers 50A / 130A / 200A in Air and O₂ per the Hypertherm consumables matrix. HALANSMSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.
