Dual-Rated for Heavy-Duty Cutting: Specifically engineered for both 260A and 400A bevel operations on HPRXD series torches, ensuring a stable, focused plasma arc at precise angles for superior edge preparation.
Ultimate Durability: Constructed from premium-grade copper alloys with advanced cooling channel design to withstand extreme thermal loads and resist premature erosion.
Seamless OEM Fit: Precision-machined to meet or exceed original equipment manufacturer (OEM) specifications, guaranteeing perfect compatibility and hassle-free installation with Hypertherm systems.
220741
HALANSM®
HLN-220741

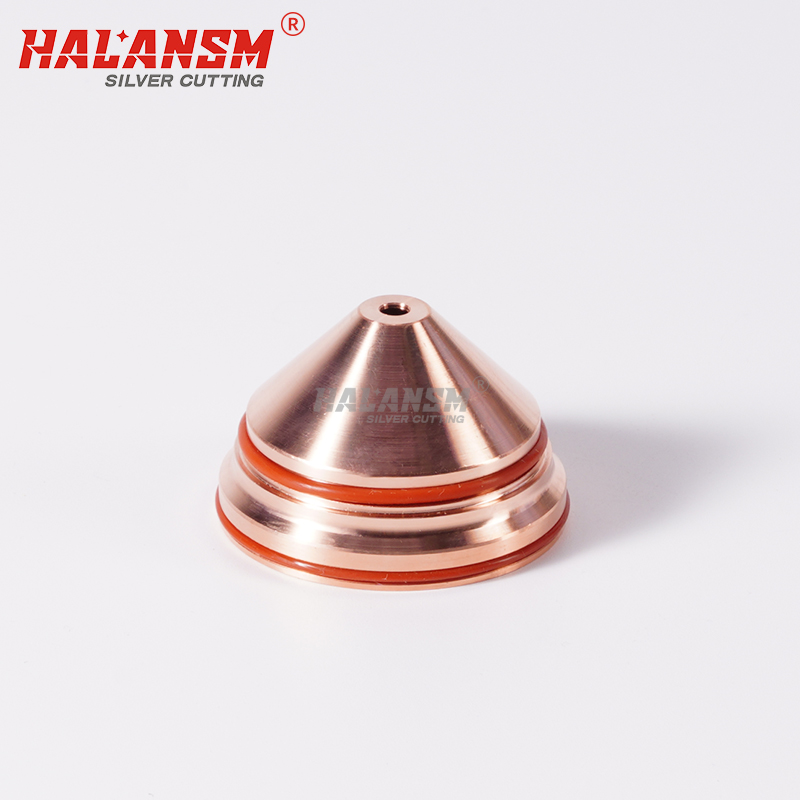

Bevel Shield 220741 for Hypertherm HPR Plasma Torch – HALANSM®
The HALANSM® 220741 Bevel Shield serves as the critical outermost barrier in your Hypertherm HPR 130XD, HPR260XD, or HPR400XD plasma torch during high-definition bevel cutting operations. This component is instrumental in directing the plasma gas flow and safeguarding the precision-machined internal nozzle and electrode from spatter and extreme thermal damage .
Engineered for Complex Thermal Dynamics
Bevel cutting requires the plasma arc to exit the nozzle at a specific angle, which introduces complex asymmetric gas flows and heat distribution. The HALANSM 220741 shield is specifically designed with this in mind. Its precisely angled geometry works in synergy with the retaining cap to stabilize the plasma plume, ensuring a consistent, dross-free bevel cut edge every time.
Important Note on Model Compatibility:
While the shield is engineered to fit the HPRXD series platform, it is crucial to note the specific part numbering differences for different amperages:
The 220741 shield is the designated replacement for the 260A Bevel cutting system .
For the 400A Bevel cutting system, the corresponding shield part number is typically 220636 or 220738 .
Please ensure you are ordering for the correct amperage requirement of your specific torch setup.
Key Features:
High-Precision Construction: Crafted to micron-level tolerances to ensure perfect alignment within the torch head, preventing gas leaks and arc instability.
Maximum Erosion Resistance: Utilizes virgin-grade copper-chromium alloys to offer superior resistance to thermal erosion and warping, reducing the frequency of replacements.
Leak-Proof Sealing: Features precision-cut O-ring grooves that guarantee a perfect, leak-proof seal, ensuring consistent flow of the secondary shielding gas.
Mandatory Component Replacement: Plasma cutting consumables wear out simultaneously. For peak performance and safety, Hypertherm recommends replacing the shield, retaining cap, nozzle, and electrode as a complete interchangeable set.
Complete Consumable Stack Reference:
To achieve optimal cut quality, the HALANSM 220741 shield should be installed as part of a complete matched set:
260A Bevel Set: Electrode (220541), Swirl Ring (220436), Nozzle (220542), Retaining Cap (220740), Shield (220741).
400A Bevel Set: Electrode (220629), Swirl Ring (220631), Nozzle (220632), Retaining Cap (220635), Shield (220636 or 220738).
NOTE: 220741 is specifically the 260A Bevel Shield. Primary fit: HPR260XD. While listed for 400A compatibility, please verify your torch manual. HALANSM 220741 is an aftermarket compatible replacement, not Hypertherm OEM.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
