Precision Bevel Geometry: Specifically contoured internal bore to direct the plasma arc at an angle for clean, accurate bevel cuts used in edge preparation and welding.
Enhanced Durability: Constructed from high-purity tellurium copper with advanced surface treatment to resist thermal erosion and maintain critical dimensions under extreme heat.
Optimized Gas Flow: Precision-drilled orifices and internal flow paths ensure a stable, focused plasma column, minimizing dross and double-arcing during angled piercing.
Drop-In Compatibility: Direct aftermarket replacement for OEM part number 220806, designed to integrate seamlessly with the HPR 80A bevel retaining cap (220845) and electrode (220802).
Cost-Effective Performance: HALANSM® offers OEM-level quality at a competitive price, reducing production costs without compromising cut quality.
220806
HALANSM®
HLN-220806

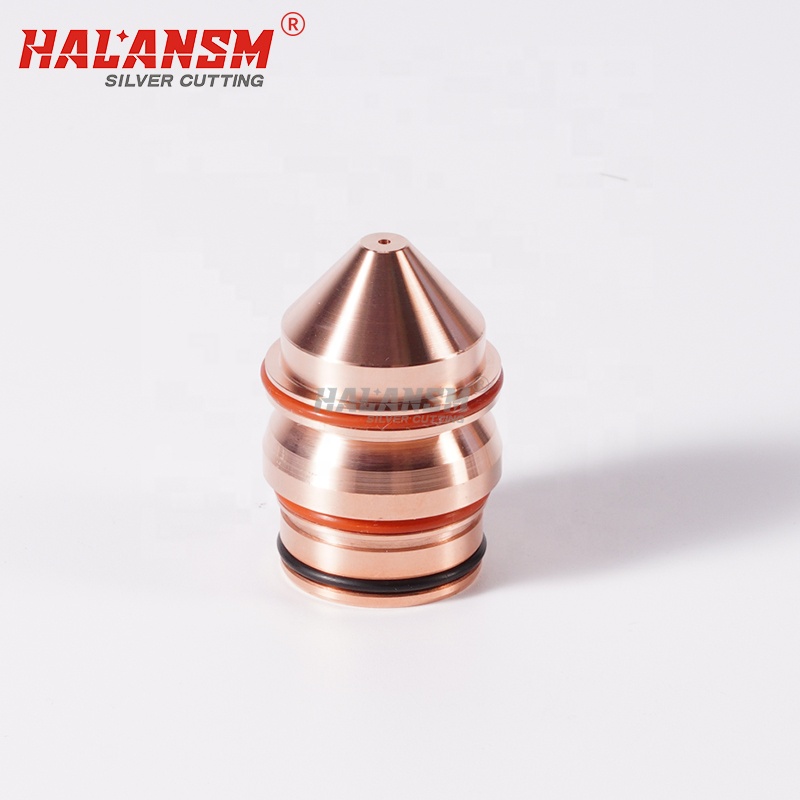

Bevel Nozzle 220806 for HPR Plasma Torch – HALANSM®
The HALANSM® 220806 Bevel Nozzle is a critical precision component for operators utilizing Hypertherm HPR 260XD, HPR400XD, or HPR130XD plasma systems for 80A bevel cutting applications. Unlike standard straight-cut nozzles, this specialized part features a unique internal geometry that works in tandem with the bevel electrode and shield to deflect the plasma arc, enabling precise angled cuts essential for weld preparation.
Engineered for Precision Angled Cutting
Bevel cutting introduces complex thermal dynamics and altered gas flow patterns. The HALANSM 220806 nozzle is specifically engineered to withstand these demanding conditions. Its precisely machined internal bore and advanced flow paths ensure that the plasma arc remains stable and focused at the desired angle, resulting in clean, dross-free bevel edges with minimal taper.
Key Features:
Optimized Arc Direction: The specific contour of the nozzle is designed to work seamlessly with the 220845 bevel retaining cap and 220802 bevel electrode. This synergy ensures accurate arc deflection and prevents edge deviation during the cutting process.
Superior Thermal Resistance: Crafted from premium tellurium copper, the 220806 nozzle offers exceptional thermal conductivity to dissipate heat effectively, preventing warping and ensuring consistent cut quality even during extended production cycles.
Advanced Gas Flow Management: Features precision-drilled orifices and internal channels that optimize the swirling motion of the plasma gas, enhancing arc stiffness and penetration for superior bevel cut performance.
Rugged Construction: CNC-machined to exacting tolerances to resist erosion and ensure a perfect fit, reducing the risk of double-arcing and protecting the integrity of the torch body.
Installation Note:
For optimal bevel cutting performance and safety, Hypertherm recommends replacing the bevel nozzle, retaining cap, electrode, swirl ring, and shield as a complete interchangeable set. Mixing old and new components can lead to arc instability, poor cut quality, and accelerated wear on expensive parts.
NOTE: 220806 = 80A Bevel Nozzle. Primary fit: HPR260XD / HPR400XD / HPR130XD. HALANSM 220806 is an aftermarket compatible replacement, not Hypertherm OEM.
220806 in the HPR 80A Bevel Consumable Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220802 (80A Bevel) | 220802 |
Swirl Ring | 220179 (Standard HPR) | 220179 |
Nozzle | 220806 (80A Bevel) | 220806 |
Retaining Cap | 220845 (80A Bevel) | 220845 |
Shield | 220742 (80A Bevel) | 220742 |
Shield Cap | 220637 (Standard HPR) | 220637 |
Water Tube | 220700 (Bevel Specific) | 220700** |
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
