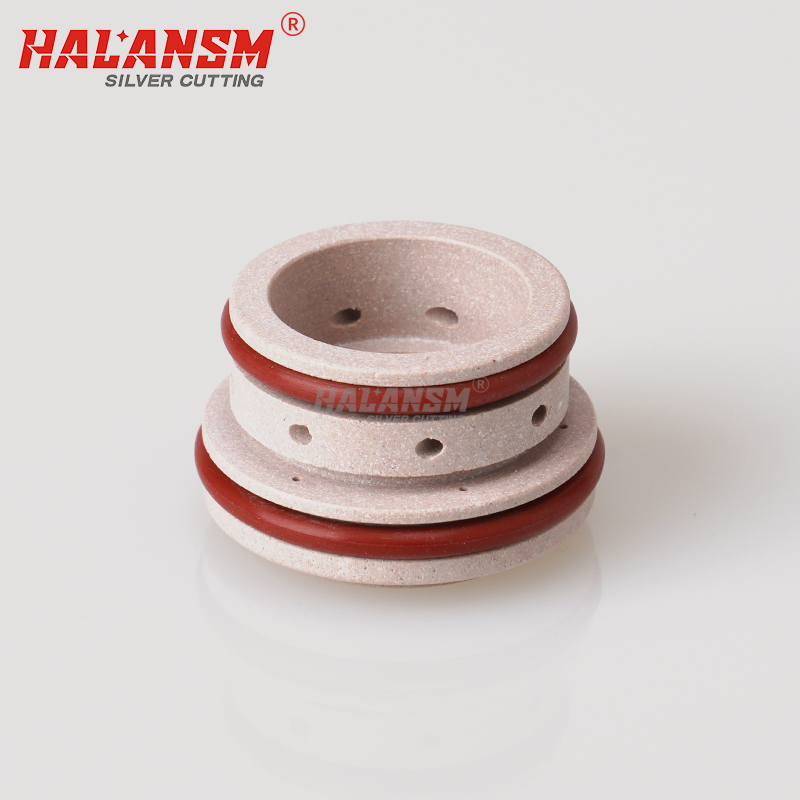

220436 Swirl Ring Compatible for Hypertherm HPR 260 260XD 400XD 800XD 130XD 260A Plasma Cutting Torch

Swirl Ring 220436 / 260A Swirl Ring for HPR Series – HALANSM®

220436 is Hypertherm's 260A swirl ring for the HPR plasma torch family. Constructed from ceramic / lava material , it is precision-machined with internal helical vanes that perform one of the most critical functions in the entire plasma cutting process: spinning the plasma gas into a controlled vortex . This swirling action stabilizes the plasma column gyroscopically — much like a bullet's rifling — reducing arc deflection, improving cut perpendicularity, and dramatically extending the service life of the downstream electrode and nozzle .

Why the Swirl Ring Matters

The swirl ring sits at the heart of the HPR 260A consumable stack, directly between the electrode (220435) and the nozzle (220439). Its helical vanes impart rotational momentum to the plasma gas as it flows from the electrode toward the nozzle orifice. This rotation delivers three critical benefits:

• Arc Stabilization: The spinning gas column acts as a gyroscopic stabilizer, keeping the plasma arc centered and preventing deflection that would otherwise cause wide kerf and excessive dross .

• Electrode Life Extension: By distributing the thermal load evenly around the hafnium emitter, the swirl ring reduces localized erosion, extending electrode 220435 life by up to 25% when properly maintained .

• Cut Quality Improvement: A stable, focused arc produces cleaner edges, tighter kerf, and minimal bevel angle — essential for Hypertherm's True Hole™ technology and HyDefinition® cut quality .

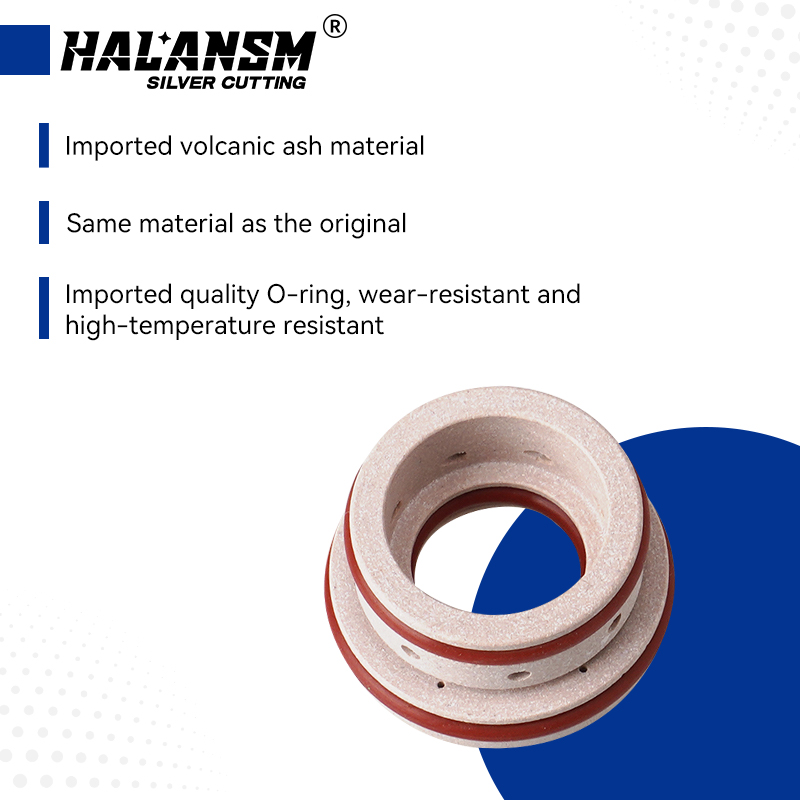

220436 in the HPR 260A Mild Steel Stack

Key Points (buyer-facing)

• 260A swirl ring for the entire HPR high-amperage platform: 220436 fits HPR260, HPR260XD, HPR400XD, HPR800XD, and HPR130XD . Per Hypertherm's official HPR260XD consumables table, it is the designated swirl ring for both 260A mild steel straight cutting and 260A bevel cutting .

• Ceramic / lava material: Unlike cheaper aftermarket copies that use brass or aluminum, the HALANSM 220436 uses authentic ceramic/lava composite , matching Hypertherm's OEM specification for superior thermal resistance and dimensional stability under extreme 260A operating temperatures .

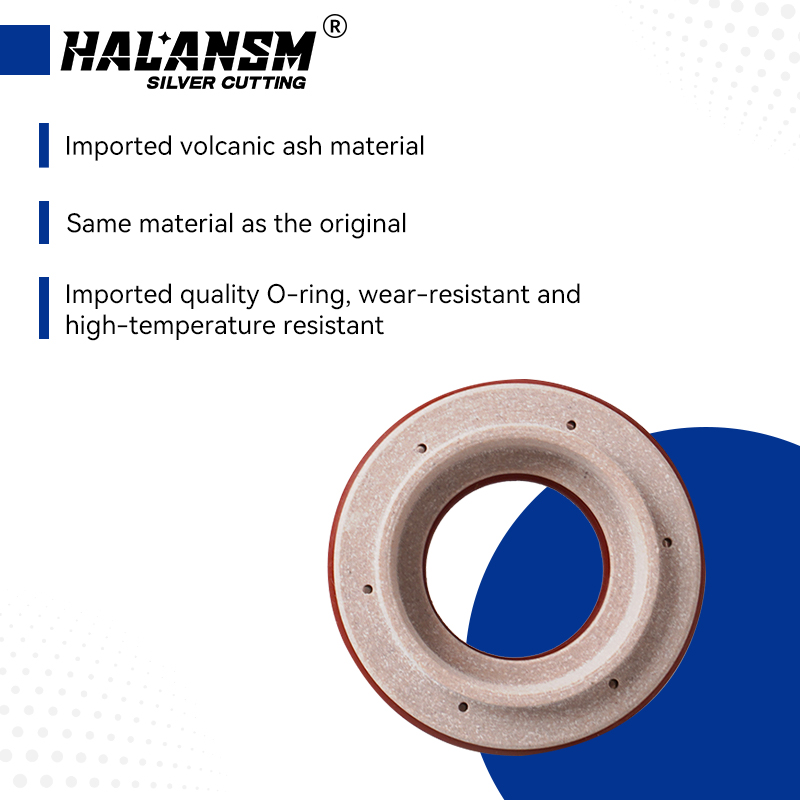

• Internal helical vanes must be clog-free: The HALANSM 220436 is CNC-machined to exacting tolerances to ensure the helical vanes are uniform and debris-free . Clogged or damaged swirl ring channels are a primary cause of shortened electrode life and erratic arc behavior — inspect and replace proactively .

• 260A-only: 220436 is rated 260A. Running it at 200A (use 220353) or 400A (use 220631) will cause improper gas dynamics and accelerated wear.

• Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl ring + nozzle + retaining cap + shield + shield cap together for peak cut quality and life . A worn 220436 swirl ring will destroy a brand-new 220435 electrode and 220439 nozzle prematurely.

NOTE: 220436 = 260A swirl ring. Material: ceramic / lava. Fits HPR260/HPR260XD/HPR400XD/HPR800XD/HPR130XD. Used in both 260A straight MS and 260A bevel stacks. HALANSM 220436 is an aftermarket compatible replacement, not Hypertherm OEM.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
