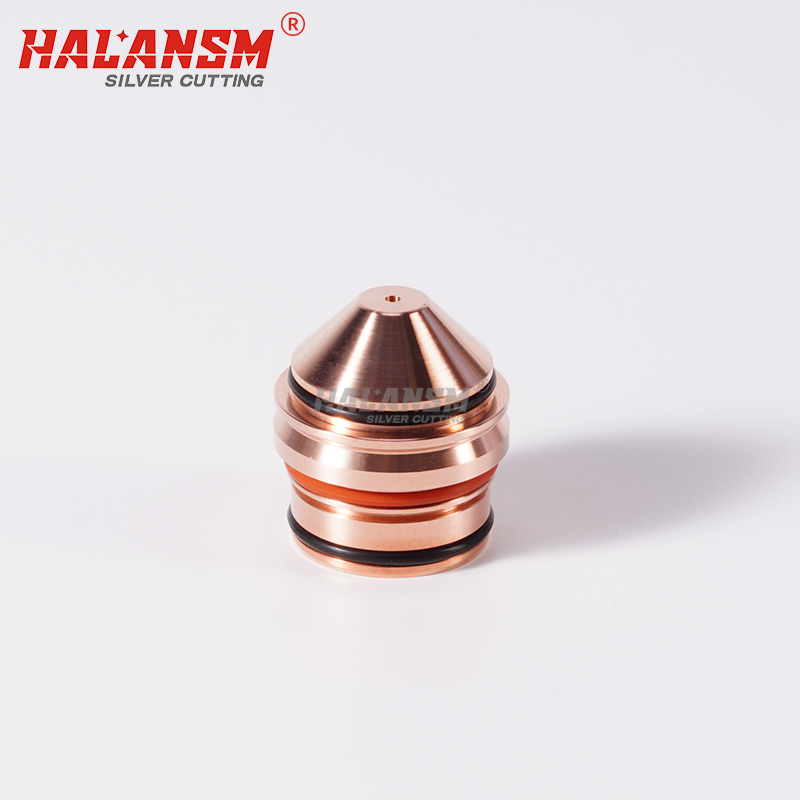

The HALANSM® 220354 is the 200A mild steel nozzle for the Hypertherm HPR plasma torch family — HPR130XD, HPR260XD, HPR400XD, HPR800XD (and HD3070/HD4070 machine upgrades) . High-purity copper alloy body with precision-drilled conical orifice using Hypertherm's Conical Flow™ nozzle technology, engineered to constrict the plasma gas stream and focus the arc into a high-velocity cutting beam . In the HPR 200A mild steel stack it pairs with 220352 electrode + 220353 swirl ring + 220757 nozzle retaining cap + 220761 shield + 220637 shield cap + 220340 water tube . HALANSM 220354 is OEM-profile matched to Hypertherm 220354 geometry, lower cost-per-piece than OEM. Compatible aftermarket replacement, not Hypertherm OEM.
220354
HALANSM®
HLN-220354
Nozzle 220354 / 200A Mild Steel Nozzle for HPR Series – HALANSM®
220354 is Hypertherm's 200A mild steel nozzle for the HPR plasma torch family. High-purity copper alloy body with a precision-drilled conical orifice using Hypertherm's Conical Flow™ nozzle technology . The nozzle is the single most important factor in determining cut quality: it constricts the shield gas stream and focuses the plasma arc into a high-velocity, high-density cutting beam that melts through steel with minimal dross . At 200A, the demands on the nozzle are extreme — high thermal load, intense arc constriction, and continuous spatter exposure — which is why material purity and orifice geometry are non-negotiable.
220354 in the HPR 200A Mild Steel Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220352 (200A, SilverPlus optional 220666) | 220352 |
Swirl Ring | 220353 (200A) | 220353 |
Nozzle | 220354 (200A MS) | 220354 |
Nozzle Retaining Cap | 220757 (200A) | 220757 |
Shield | 220761 (200A MS) | 220761 |
Shield Cap | 220637 (80–400A HPRXD) | 220637 |
Water Tube | 220340 (45–260A) | 220340 |
Key Points (buyer-facing)
200A MS nozzle, one part number covers the entire HPRXD/HPR800XD platform: 220354 fits HPR130XD, HPR260XD, HPR400XD, HPR800XD identically, and is the recommended upgrade nozzle for HD3070/HD4070 machine torches .
Conical Flow™ orifice geometry: The HALANSM 220354 replicates Hypertherm's conical orifice profile — a precision-machined converging-diverging bore that accelerates the plasma gas to supersonic velocities for a tight, focused arc . Wrong orifice geometry (generic round bore) causes arc wander, wide kerf, excessive dross, and rapid electrode wear.
NOT for 200A bevel: 220354 is the straight-cut mild steel nozzle. For 200A bevel cutting, the correct nozzle is 220659 (paired with 220353 swirl + 220658 shield + 220845 retaining cap + 220637 shield cap) . Using 220354 for bevel applications will cause premature nozzle failure and degraded bevel angle accuracy.
NOT for stainless/aluminum at 200A: 220354 is the mild steel nozzle. For stainless steel or aluminum cutting at similar amperages, a different nozzle/gas combination is required per Hypertherm's process guidelines.
Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life. A worn nozzle will destroy a brand-new electrode within minutes.
NOTE: 220354 = 200A MS nozzle. Fits HPR130XD/HPR260XD/HPR400XD/HPR800XD/HD3070/HD4070. 200A bevel nozzle = 220659. HALANSM 220354 is an aftermarket compatible replacement, not Hypertherm OEM.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
